Details
Parameters
Photocurrent
8.0
µA
Fall time
tf
0.04
µs
Rise time
tf
0.04
µs
Spectral range of sensitivity typ.
λ10%
min.
300
nm
λ10%
max.
1100
nm
Radiant sensitive area
A
7.02
mm²
Beam angle
∢
120
°
Dimension
l
5.09
mm
w
4.0
mm
h
0.85
mm
Operating temperature
Top
min.
-40
°C
Top
max.
85
°C
Application fields
Ordering information
| Product Type | Description | Ordering code | Availability |
|---|---|---|---|

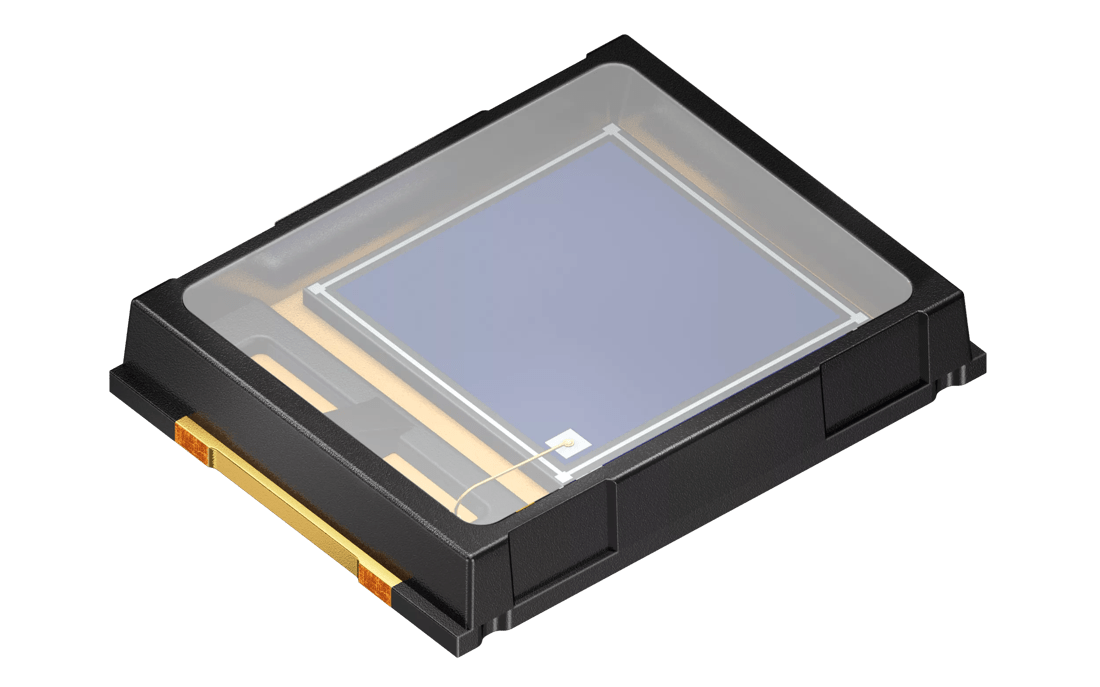

| SFH 2200 | IP = ≥ 6 µA, (IP=8 µA typ.) (Ev=1000 lx) | Q65112A0250 | Full production |
