Details
Parameters
Photocurrent
660.0
µA
Fall time
tf
6.0
µs
Rise time
tf
6.0
µs
Spectral range of sensitivity typ.
λ10%
min.
450
nm
λ10%
max.
1100
nm
Radiant sensitive area
A
0.11
mm²
Beam angle
∢
36
°
Dimension
l
12.3
mm
w
1.8
mm
h
3.4
mm
Operating temperature
Top
min.
-40
°C
Top
max.
80
°C
Application fields
Ordering codes
| Product Type | Description | Order No. | Availability |
|---|---|---|---|

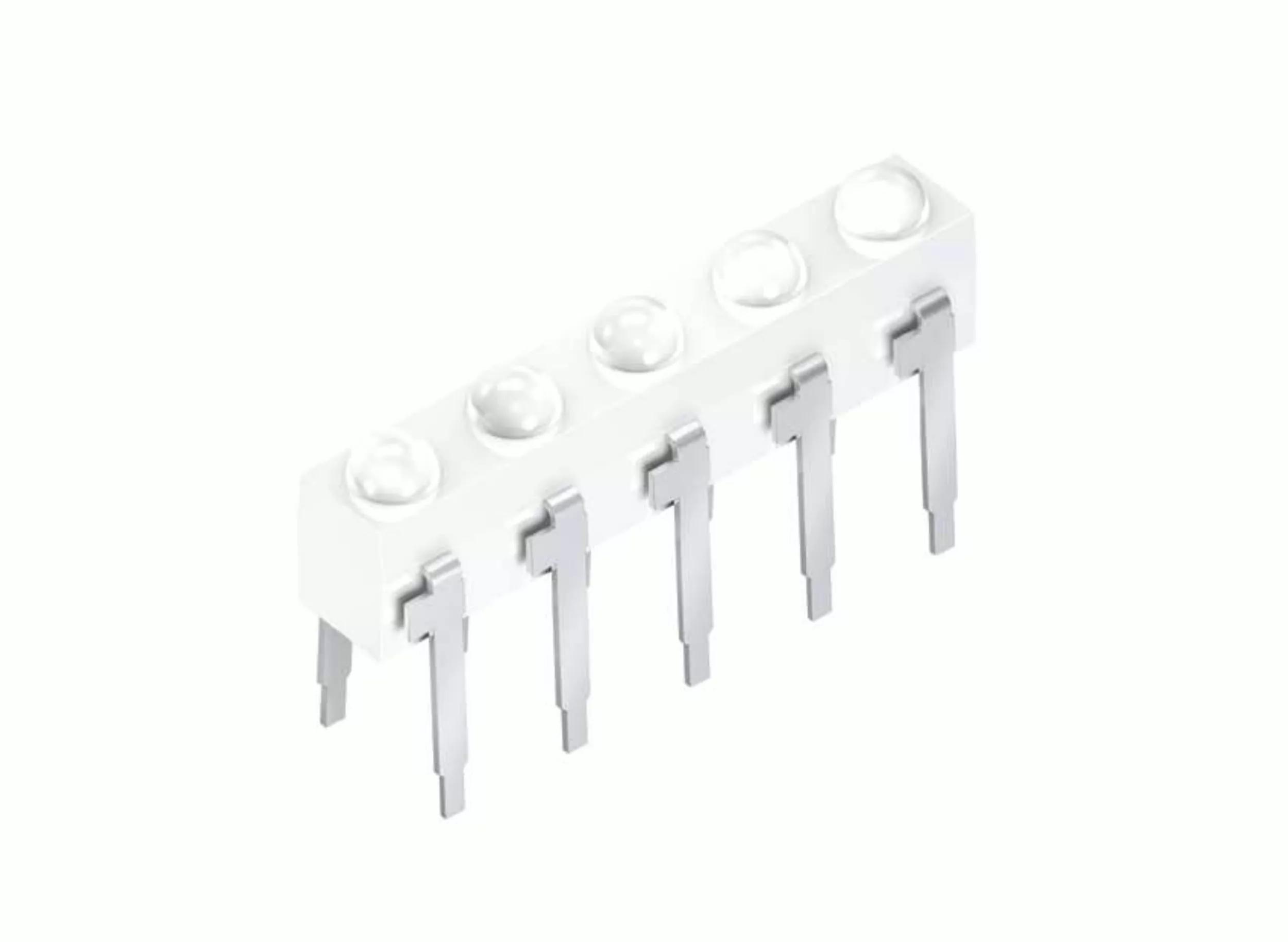

| BPX 85 | IPCE = 360 ... 900 µA, (IPCE=660 µA typ.) (Ee=0.5 mW/cm²) | Q62702P0031 |
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
