Details
Parameters
Photocurrent
700.0
µA
Fall time
tf
10.0
µs
Rise time
tf
10.0
µs
Spectral range of sensitivity typ.
λ10%
min.
450
nm
λ10%
max.
1100
nm
Radiant sensitive area
A
0.11
mm²
Beam angle
∢
70
°
Dimension
l
4.43
mm
w
2.29
mm
h
5.72
mm
Operating temperature
Top
min.
-40
°C
Top
max.
100
°C
Application fields
Ordering codes
| Product Type | Description | Order No. | Availability |
|---|---|---|---|

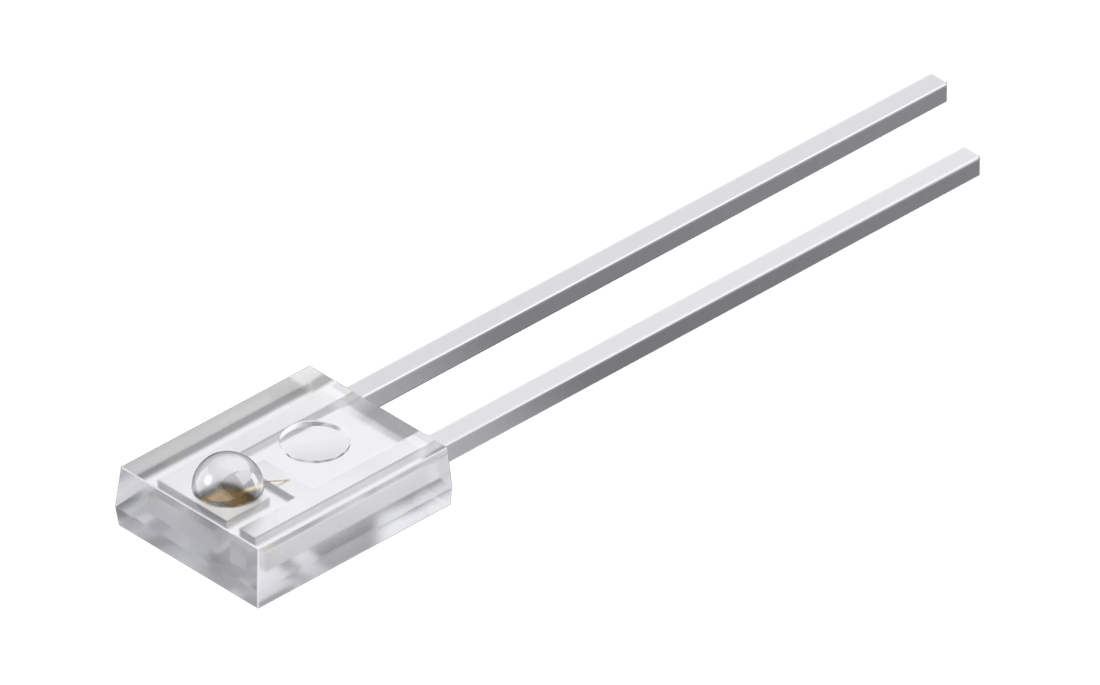

| LPT 80A | IPCE = ≥ 280 µA, (IPCE=700 µA typ.) (Ee=0.5 mW/cm²) | Q68000A7852 |
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
