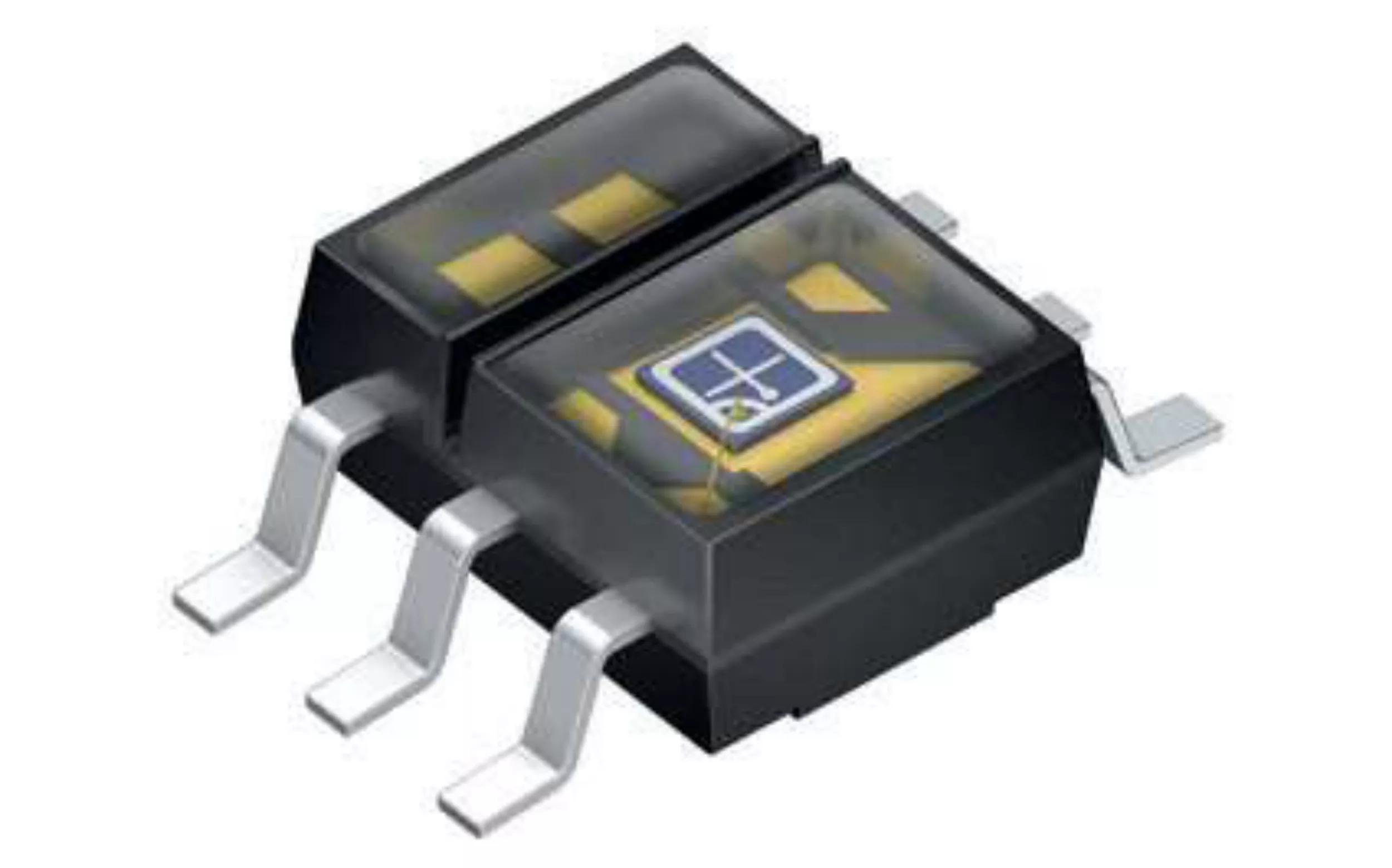

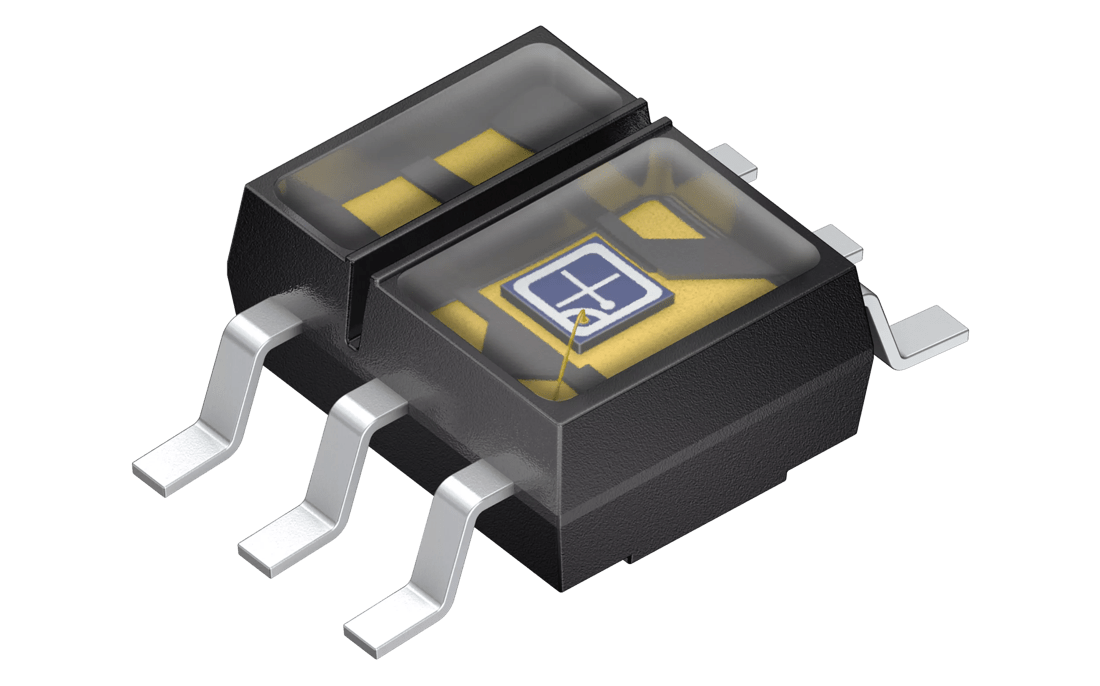

OSRAM Reflective Interrupter, SFH 3201

Name: OSRAM Reflective Interrupter, SFH 3201
Brand: ams-OSRAM AG

Discontinued

Description

Silicon NPN Phototransistor in SMT Package

Datasheet

Select & order

Replacement Products

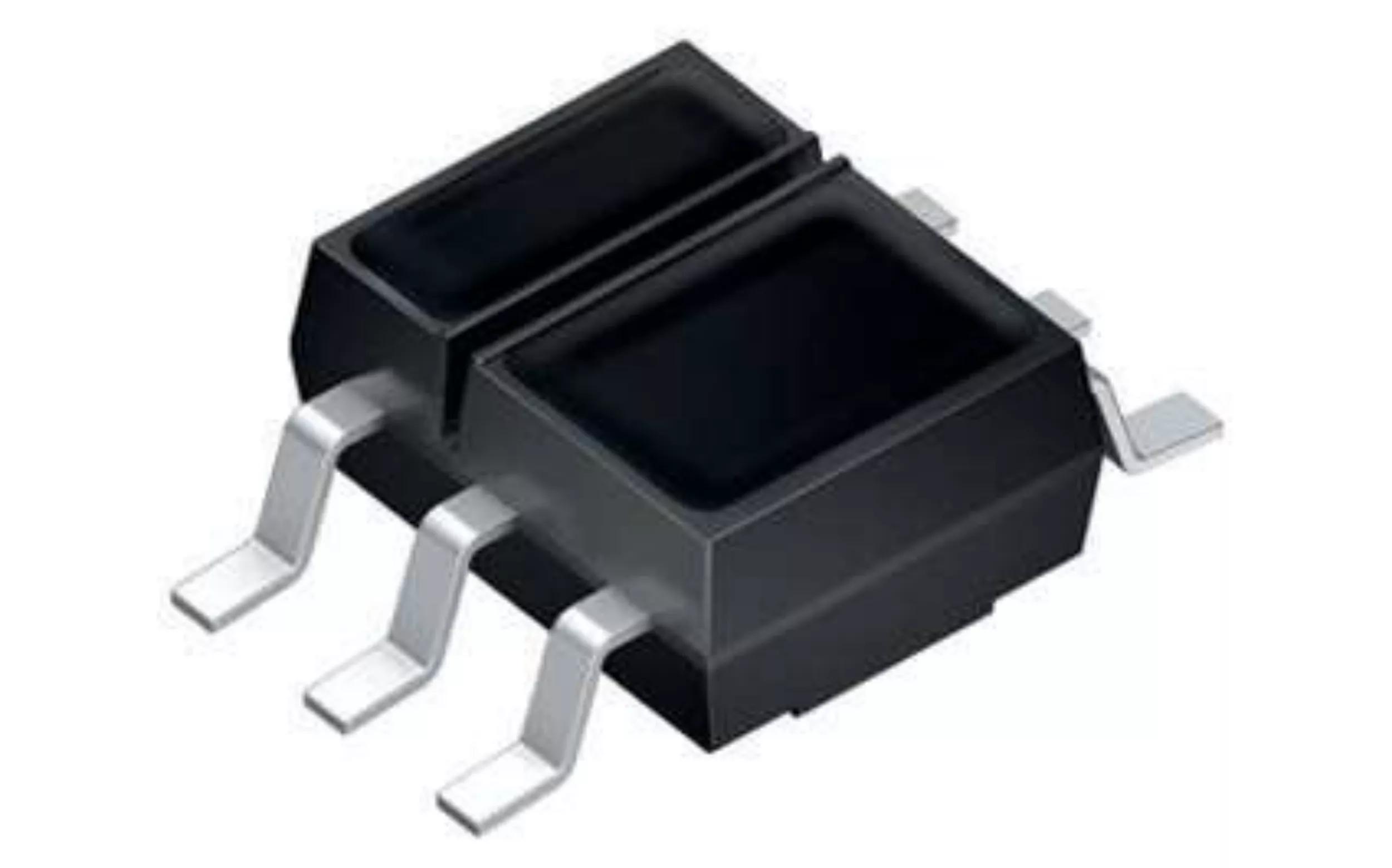

OSRAM Reflective Interrupter, SFH 9206

940nm emitter with a silicon NPN phototransistor in a SMT package

Details and Datasheet

Details

Parameters

Photocurrent

200.0 µA

Fall time

t_f

24.0 µs

Rise time

t_f

24.0 µs

Spectral range of sensitivity typ.

λ_10% min.

460 nm

λ_10% max.

1080 nm

Radiant sensitive area

0.55 mm²

Beam angle

∢

120 °

Dimension

6.0 mm

4.0 mm

1.9 mm

Operating temperature

T_op min.

-40 °C

T_op max.

100 °C

Application fields

Automotive & mobility Transportation

Ordering codes

Product Type	Description	Order No.	Availability
SFH 3201-2-Z	I_PCE = 112 ... 180 µA (E_e=0.10000000000000001 mW/cm²)	Q65110A2476	Status information Full production Pre-production Not planned for new design Ordering and shipping are still possible Discontinued Request product
SFH 3201-3-Z	I_PCE = 180 ... 280 µA (E_e=0.10000000000000001 mW/cm²)	Q65110A2477	Status information Full production Pre-production Not planned for new design Ordering and shipping are still possible Discontinued Request product
SFH 3201-2/3-Z	I_PCE = 112 ... 280 µA (E_e=0.10000000000000001 mW/cm²)	Q65110A2479	Status information Full production Pre-production Not planned for new design Ordering and shipping are still possible Discontinued Buy now By clicking this button you will be transferred to the dedicated site of our logistics partner, Mouser Electronics where your purchase can be completed. Your payment and order details provided for this purpose will be shared between Mouser Electronics and ams OSRAM. More details on the data processing in question can be found in the Privacy Policy of the Mouser shop. Buy From Distributors: Mouser Buy now RS Buy now
SFH 3201	I_PCE = 112 ... 280 µA, (I_PCE=200 µA typ.) (E_e=0.10000000000000001 mW/cm²)	Q65110A1207	Status information Full production Pre-production Not planned for new design Ordering and shipping are still possible Discontinued Buy now By clicking this button you will be transferred to the dedicated site of our logistics partner, Mouser Electronics where your purchase can be completed. Your payment and order details provided for this purpose will be shared between Mouser Electronics and ams OSRAM. More details on the data processing in question can be found in the Privacy Policy of the Mouser shop. Buy From Distributors: Farnell Buy now Mouser Buy now RS Buy now Rochester Buy now
