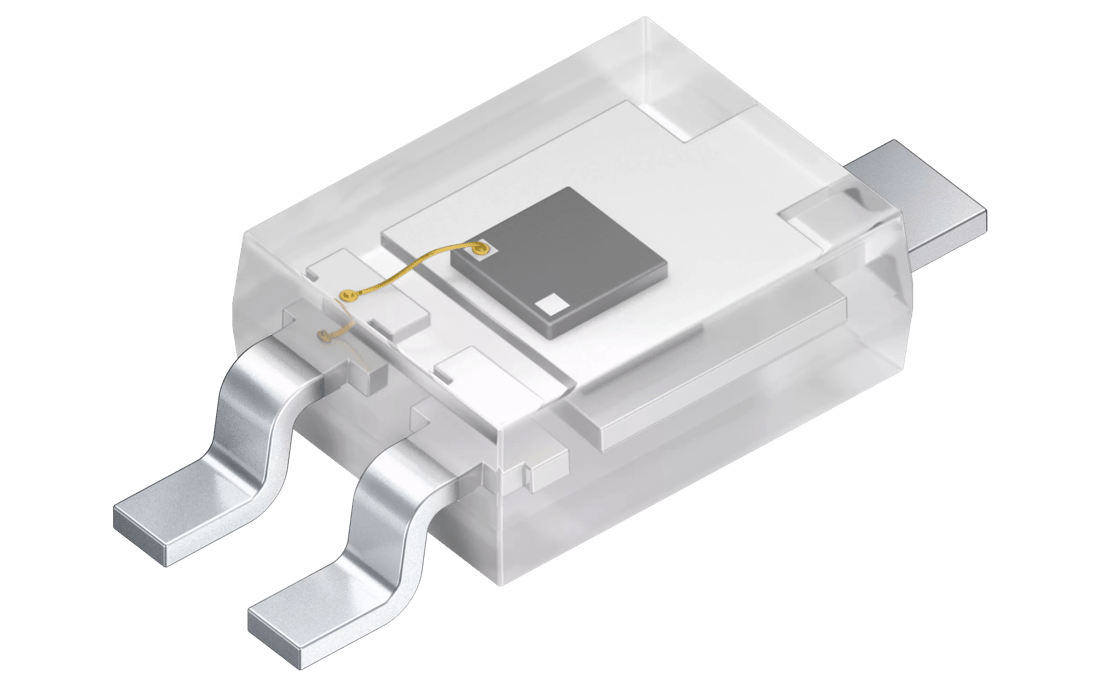

OSRAM Smart DIL, SFH 3410

×

Description

Silicon NPN Phototransistor with Vλ Characteristics

Details

Parameters

Photocurrent
14.0 µA
Spectral range of sensitivity typ.
λ10% min.
400 nm
λ10% max.
950 nm
Radiant sensitive area
A
0.29 mm²
Beam angle
120 °
Dimension
l
4.6 mm
w
2.0 mm
h
1.05 mm
Operating temperature
Top min.
-40 °C
Top max.
100 °C

Ordering codes

Product Type Description Order No. Availability
SFH 3410-3/4-Z IPCE = 9.0 ... 22.4 µA (Ee=0.10000000000000001 mW/cm²) Q65110A2655
SFH 3410-Z IPCE = 3.6 ... 22.4 µA, (IPCE=14 µA typ.) (Ee=0.10000000000000001 mW/cm²) Q65110A1211
SFH 3410-1/2-Z IPCE = 3.6 ... 9.0 µA (Ee=0.10000000000000001 mW/cm²) Q65110A2653
SFH 3410-2/3-Z IPCE = 5.6 ... 14.0 µA (Ee=0.10000000000000001 mW/cm²) Q65110A2654
