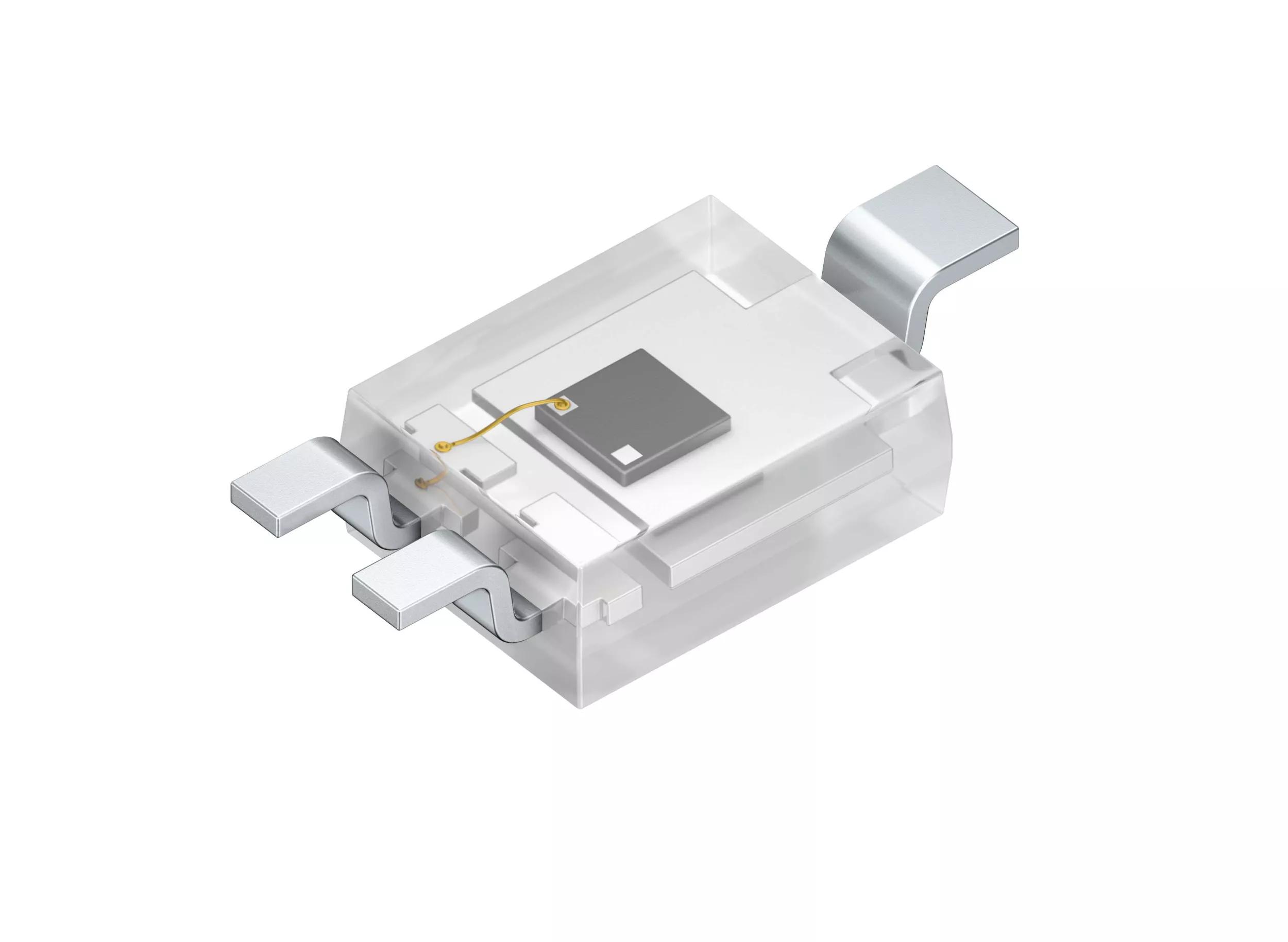

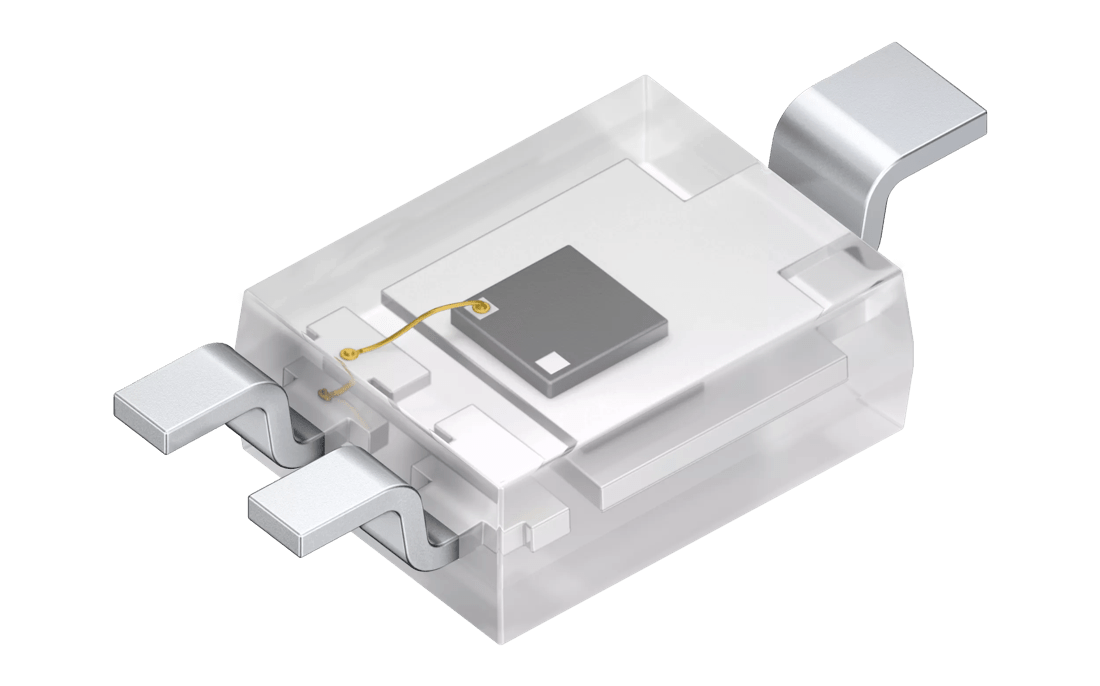

OSRAM Smart DIL, SFH 3410R

×

Description

Silicon NPN Phototransistor with Vλ Characteristics

Details

Parameters

Photocurrent
9.0 µA
Spectral range of sensitivity typ.
λ10% min.
400 nm
λ10% max.
950 nm
Radiant sensitive area
A
0.29 mm²
Beam angle
120 °
Dimension
l
4.6 mm
w
2.0 mm
h
1.05 mm
Operating temperature
Top min.
-40 °C
Top max.
100 °C

Ordering codes

Product Type Description Order No. Availability
SFH 3410R IPCE = 3.6 ... 14.0 µA, (IPCE=9 µA typ.) (Ee=0.10000000000000001 mW/cm²) Q65111A9395
