ams CMV2000

Description

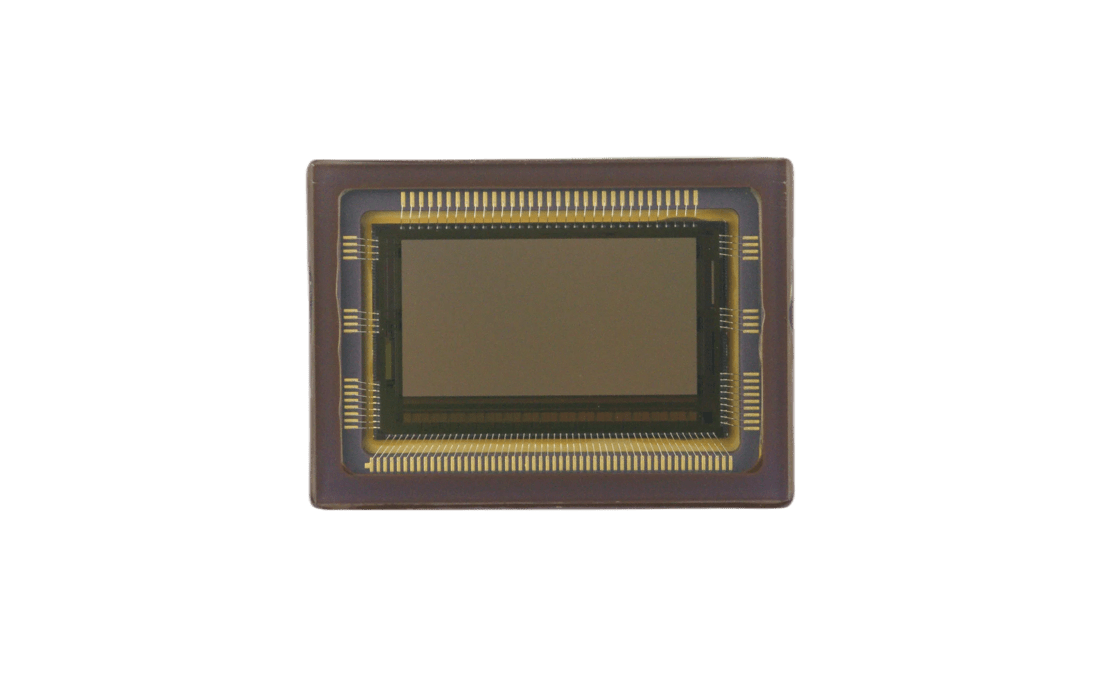

The CMV2000 is a high sensitivity, pipelined global shutter CMOS image sensor with 2048 x 1088 pixel resolution capable of HD format. Pipelining allows exposure during read out. The state-of-the-art pixel architecture offers true correlated double sampling (CDS) reducing the fixed pattern noise and dark noise significantly. The imager integrates 16 LVDS channels each running at 480 Mbps resulting in a 340 fps frame rate at full resolution at 10 bit per pixel. Driving and read-out are programmed over a serial peripheral interface. An internal timing generator produces the signals needed for read-out and exposure control of the image sensor. External exposure triggering remains possible. A 12 bit per pixel mode is available at reduced frame rate.

For compatible sockets from Andon Electronics visit http://www.andonelect.com/secure/ImagesClientUpload/crossreferences/image_sensor/ams_(cmosis).pdf

Datasheet

Select & order

Details

High speed 340fps
Pin compatible to CMV4000
Selectable ADC Resolution
High dynamic range mode with dual exposure and piecewise linear response options

Freeze moving objects
Global shutter
Track moving objects accurately and high inspection rate
Simplifying HW design
Choose between maximum frame rate (10bit) or better image quality (12bit)
See bright and dark objects at the same time

Parameters

Resolution

2 MP

Shutter type

Global

Frame rate

max.

340 fps

Optical format

2/3"

Dynamic range

60 dB

Pixel pitch

5.5 µm

Function

area scan

Integration time

min.

8.47 µs

CRA

Package

PGA

LGA

LCC

Package dimension

3.36 mm

13.5 mm

18.65 mm

Cover glass

Anti-reflective coating

Plain

CFA option

Mono

RGB

ADC mode

10 bit

12 bit

Channels

output

Interface

output

Low-voltage differential signaling

Output interface speed

480 Mbps

Application fields

Industrial Material processing Factory automation

Ordering codes

Product Type	Order No.	Availability
CMV2000-3E5C1CA	Q65114A0023	Status information Full production Pre-production Not planned for new design Ordering and shipping are still possible Discontinued Request product
CMV2000-2E5C1LP	Q65114A0004	Status information Full production Pre-production Not planned for new design Ordering and shipping are still possible Discontinued Request product
CMV2000-3E5M1CA	Q65114A0025	Status information Full production Pre-production Not planned for new design Ordering and shipping are still possible Discontinued Request product
CMV2000-2E12M1PP	Q65114A0002	Status information Full production Pre-production Not planned for new design Ordering and shipping are still possible Discontinued Request product
CMV2000-2E5M1PP	Q65114A0010	Status information Full production Pre-production Not planned for new design Ordering and shipping are still possible Discontinued Request product
CMV2000-3E5M1PA	Q65114A0027	Status information Full production Pre-production Not planned for new design Ordering and shipping are still possible Discontinued Request product
CMV2000-3E5M1PP	Q65114A0028	Status information Full production Pre-production Not planned for new design Ordering and shipping are still possible Discontinued Request product
CMV2000-3E12M1PP	Q65114A0031	Status information Full production Pre-production Not planned for new design Ordering and shipping are still possible Discontinued Request product
CMV2000-3E12M1CA	Q65114A0029	Status information Full production Pre-production Not planned for new design Ordering and shipping are still possible Discontinued Request product
CMV2000-3E5C1PP	Q65114A0024	Status information Full production Pre-production Not planned for new design Ordering and shipping are still possible Discontinued Request product
CMV2000-2E5C1PP	Q65114A0005	Status information Full production Pre-production Not planned for new design Ordering and shipping are still possible Discontinued Request product
CMV2000-2E5M1LP	Q65114A0009	Status information Full production Pre-production Not planned for new design Ordering and shipping are still possible Discontinued Request product
