ams CMV50000

Discontinued
×
Discontinued

Description

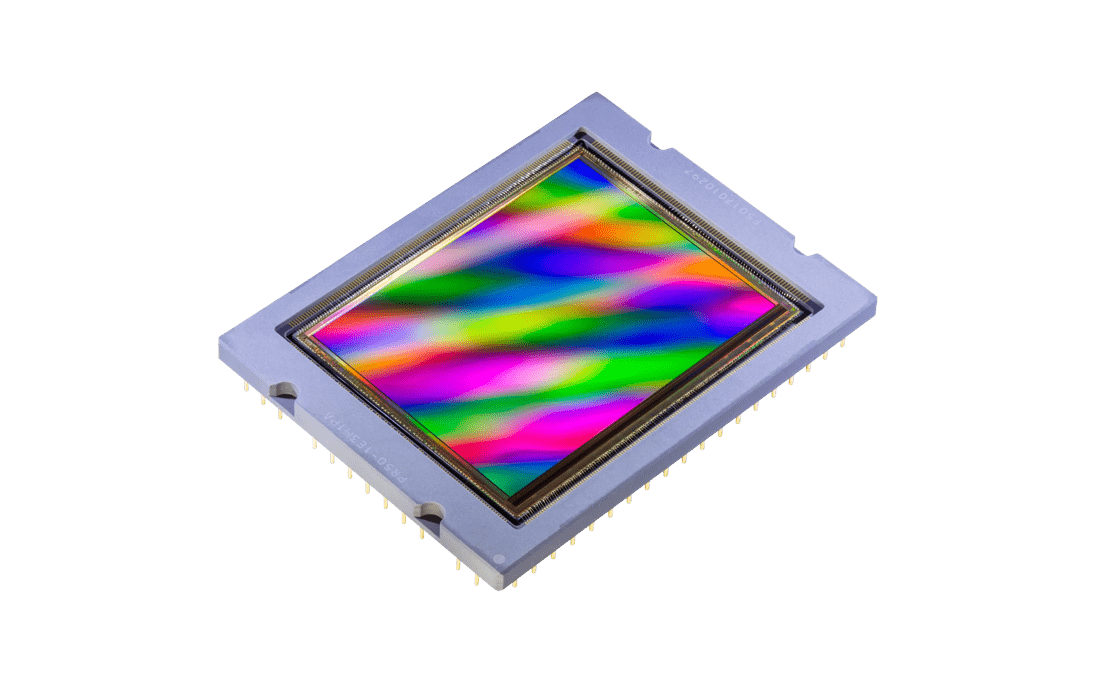

The CMV50000 is a high speed CMOS image sensor with 7920 x 6004 effective pixels (47.5Mp) developed for machine vision and video applications. The image array consists of 4.6μm pipelined 8T global shutter pixels which allow exposure during read out, while performing true CDS (Correlated Double Sampling) operation. The image sensor has 22 12-bit sub-LVDS data outputs. The image sensor also integrates a programmable analog gain amplifier and offset regulation. Each output channel runs up to 830 Mbps maximum which results in 30 fps frame rate at full resolution in 12-bit. Higher frame rates can be achieved in row-windowing mode or row-subsampling mode. These modes are all programmable using the SPI interface. All internal exposure and read out timings are generated by a programmable on-board sequencer. External triggering and exposure programming is also possible. Extended optical dynamic range can be achieved by a dual exposure HDR mode.

For compatible sockets from Andon Electronics visit http://www.andonelect.com/secure/ImagesClientUpload/crossreferences/image_sensor/ams_(cmosis).pdf

Details

Features

  • 8T global shutter pixel with true Correlated Double Sampling (true-CDS)
  • Resolution of 7920x6004 at 30 frames per second
  • Low noise (8.8e) and high sensitivity (QE=60%), with on-chip noise reduction
  • 35mm full frame optical format sensor

Benefits

  • Capture fast moving objects
  • Designed for high performance applications
  • Use in low light conditions
  • Capable of using standard optics

Parameters

Resolution
48 MP
Shutter type
Global
Frame rate
max.
30 fps
Optical format
Full frame
Dynamic range
64 dB
Pixel pitch
4.6 µm
4.6 µm
Function
area scan
Integration time
min.
100 µs
CRA
No
Package
uPGA
Package dimension
h
4.02 mm
l
40 mm
w
52.5 mm
Cover glass
Anti-reflective coating
CFA option
Mono
RGB
ADC mode
12 bit
Channels
output
22
Interface
output
Low-voltage differential signaling
Output interface speed
830 Mbps

Ordering codes

Product Type Description Order No. Availability
CMV50000-1E3M1PA Q65114A0067
CMV50000-1E3C1PA Q65114A0070

Downloads

User guides

Technical documents

Environmental documents

Lifecycle documents

Software
