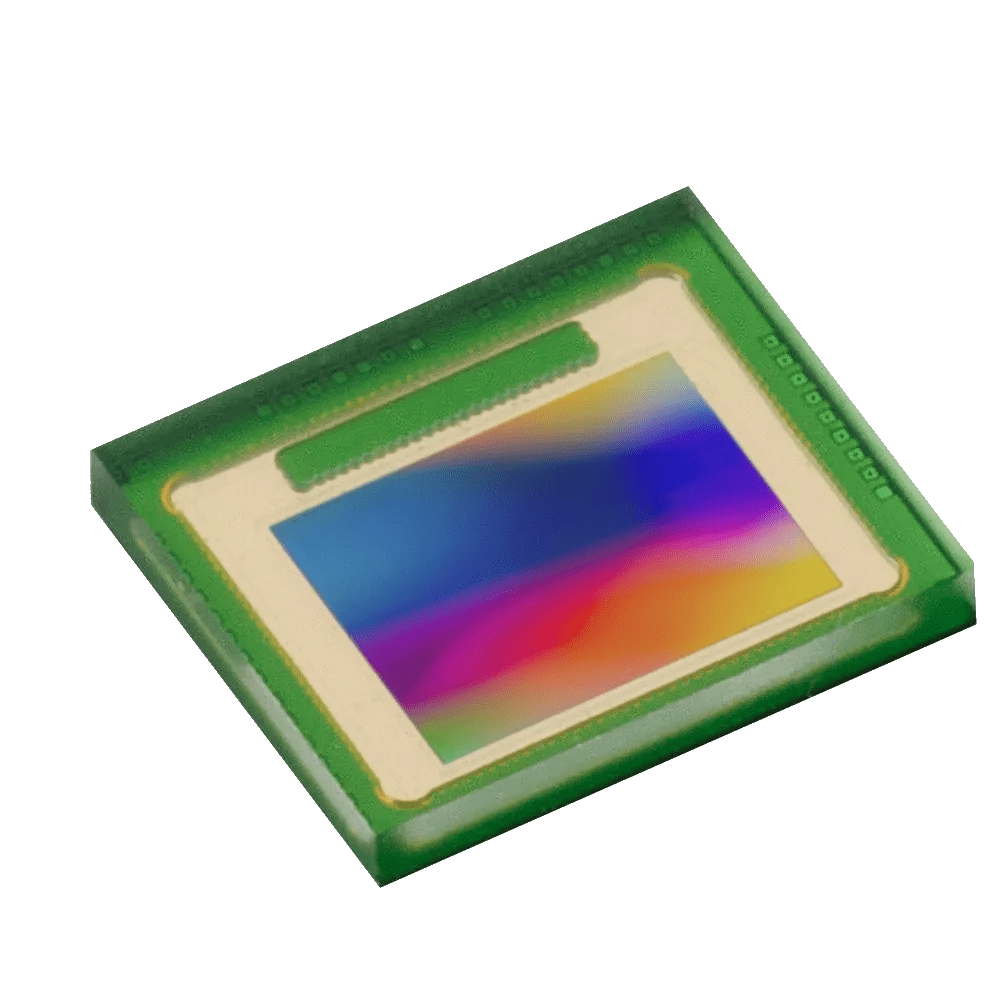

ams Mira030 CMOS Image Sensor

Name: ams Mira030 CMOS Image Sensor
Brand: ams-OSRAM AG

Discontinued

Description

Mira030 is a high speed global shutter image sensor for applications that require compact solutions.

It outputs monochrome images with an effective pixel array of 1080H × 1280V, and supports complex on-chip operations such as high dynamic range (HDR) mode, external triggering, windowing, horizontal or vertical mirroring. Its maximum frame rate is 180fps at a full image resolution. On-chip registers can be accessed via the standard I²C interface

Datasheet

Select & order

Details

180 fps at 10b full resolution
Global shutter pixel
MIPI and LVDS
I²C interface
Max 120 mW at max frame rate

Motion blur robustness & low PLS
Standard data interfaces
Standard control interface
Low power consumption

Parameters

Resolution

0.3 MP

Shutter type

Global

Frame rate

max.

180 fps

Optical format

1/5"

Pixel pitch

3.744 µm

Function

area scan

CRA

Yes

Package

CSP

Package dimension

0.76 mm

3.7 mm

3.07 mm

Cover glass

Plain

CFA option

Mono

ADC mode

8 bit

10 bit

12 bit

Channels

output

Interface

output

I²C

Low-voltage differential signaling

Output interface speed

1500 Mbps

Application fields

Industrial Robotics Home & building automation Appliances & tools Access control & security

Computing Computing

Mobile & wearables Authentication 3D sensing

Ordering codes

Product Type	Description	Order No.	Availability
MIRA030-1RM2WP		Q65114A0079	Status information Full production Pre-production Not planned for new design Ordering and shipping are still possible Discontinued Request product
