ams AS7100 Integrated Optical Force Sensor

×

Description

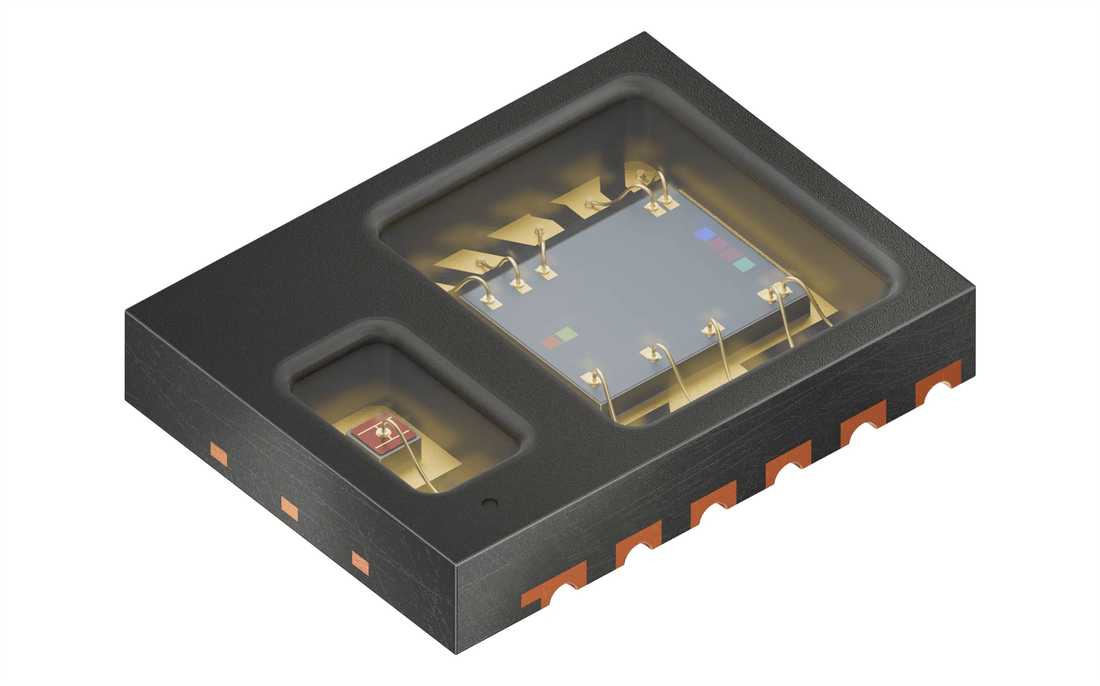

The AS7100 device is a low noise, high dynamic range proximity detection solution. It has been optimized for optical force sensing applications designed for automotive and industrial markets. The device consists two low-noise ADC channels capable of simultaneous data acquisition of two programmable photodiode arrays, a temperature sensor, an integrated 940nm IRED and an advanced IRED driver. It comes in an optimized 4.0mm x 3.05mm x 0.7mm package. The proximity function synchronizes IR emission and detection to sense nearby objects. The architecture of the engine features low noise, high dynamic range, ambient light subtraction, advanced crosstalk cancelation, FIFO, and interrupt-driven I²C communication. Sensitivity, power consumption, and noise can be optimized with adjustable IRED timing and power. The proximity engine recognizes detect/release events and produces a configurable interrupt whenever the proximity result crosses the upper or lower threshold settings.
Datasheet
AS7100 Proximity sensor for optical force sensing applications
English
Download
Select & order
Contact us Support

Details

Features

  • Enables press (force touch), hold, touch and tapping
  • Confirms non-intentional capacitive button/display touch
  • Proximity sensing
  • Capacitive touch replacement (touch implementation)
  • Optical force slider, optical force touch-pad
  • Multi button support
  • Gesture sensing

Benefits

  • Displacement resolution of 1µm improves user experience and reliability
  • Force sensitivity enables adjustment at e.g. different speed
  • Works under all surface materials (plastics, wood, glass, metal..)
  • Any input: works with wet fingers, gloves, stylus etc.
  • Enables Shytech implementations
  • Proximity measurement distance: 10 – 300mm
  • AEC-Q102-003 qualified
  • Synchronization through Synch Pin
  • 8 different I2C addresses

Parameters

Emitter quantity
1 integrated
SNR
82 dB
Package
QFN
Package dimension
l
4 mm
w
3.05 mm
h
0.7 mm
Supply voltage
max.
3.3 V
Operating ambient temperature
min.
-40 °C
max.
110 °C
Interface
input
I²C slave
output
I²C slave
Spectral range of sensitivity typ.
λ10% min.
820 nm
λ10% max.
1100 nm

Ordering information

Product Type Description Ordering code Availability
AS7100-ZQFT 3.3 0x51 PM-QFN12 LF T&RDP 7-bit I²C address 0x51 Q65115A2699
AS7100-ZQFT 3.3 0x52 PM-QFN12 LF T&RDP 7-bit I²C address 0x52 Q65115A2698
AS7100-ZQFT 3.3 0x53 PM-QFN12 LF T&RDP 7-bit I²C address 0x53 Q65115A2697
AS7100-ZQFT 3.3 0x54 PM-QFN12 LF T&RDP 7-bit I²C address 0x54 Q65115A2701
AS7100-ZQFT 3.3 0x55 PM-QFN12 LF T&RDP 7-bit I²C address 0x55 Q65115A2700
AS7100-ZQFT 3.3 0x56 PM-QFN12 LF T&RDP 7-bit I²C address 0x56 Q65115A2715
AS7100-ZQFT 3.3 0x57 PM-QFN12 LF T&RDP 7-bit I²C address 0x57 Q65115A2716
AS7100-ZQFT 3.3 0x58 PM-QFN12 LF T&RDP 7-bit I²C address 0x58 Q65115A2717

Downloads

Datasheets
AS7100 Proximity sensor for optical force sensing applications · Datasheet · PDF · en_US

Application note
Differential optical force sensing · Product related · PDF · en_US
Optical force sensing · Product related · PDF · en_US

Environmental documents
MDF AS7100.ZQFT 518050004 MD001035 1.00 · Material declaration form · PDF · en_US
AS7100 RoHS HF Certificate RC001068 1.00 · RoHS certificate · PDF · en_US

Images
AS 7100 · Images · TIF
AS7100 Blockdiagram · Block diagram · PNG

Software
AS7100_EvalSW_win_v2.2.0.exe · Evaluation software · EXE · en_US
AS7100_Lib_Corelib_v3-0-3.zip · Library · ZIP · en_US
