Details
Features
- OTP programmable boot sequence
- DC-DC controller for remote power generation and heat distribution
- Dual charger power path and DC-DC charger mode
- HDMI boost, backlight boost, and HV current sinks
- 4MHz DC-DC bucks, supervisor, general purpose IOs, ADC
Benefits
- Flexible and fast adaptation to different processors/applications
- Compact design due to small coils
- JEITA charger temperature supervision
- Single or dual-phase controller to adjust efficiency
- Multi-feature, small footprint
Parameters
Special LDOs
[mA]
ANA-2x250
DC-DC Step Down Converters
2A + 2x1A + 8A \ 4A configurable
Package
CSP-81, 0.4mm pitch
DC-DC Step Up Converters
50 V
General Purpose ADC
[bit]
10
Charger
1.5A linear/DC-DC dual input
Customizable Startup Sequences
Programmable
Universal LDOs
[mA]
6x300
Current Sinks
[mA]
3x40
Charge Pump
[V/mA]
5 / 60
Downloads
For other documents visit our
Download center
Datasheets
AS3715 DS000349
Datasheet
Environmental documents
Lifecycle documents
AS1xxx_AS25xx_AS3xxx_AS73211_AS89020_SL900A_EN001008_1-00
Product discontinuation notification (PDN)
Images
AS3715

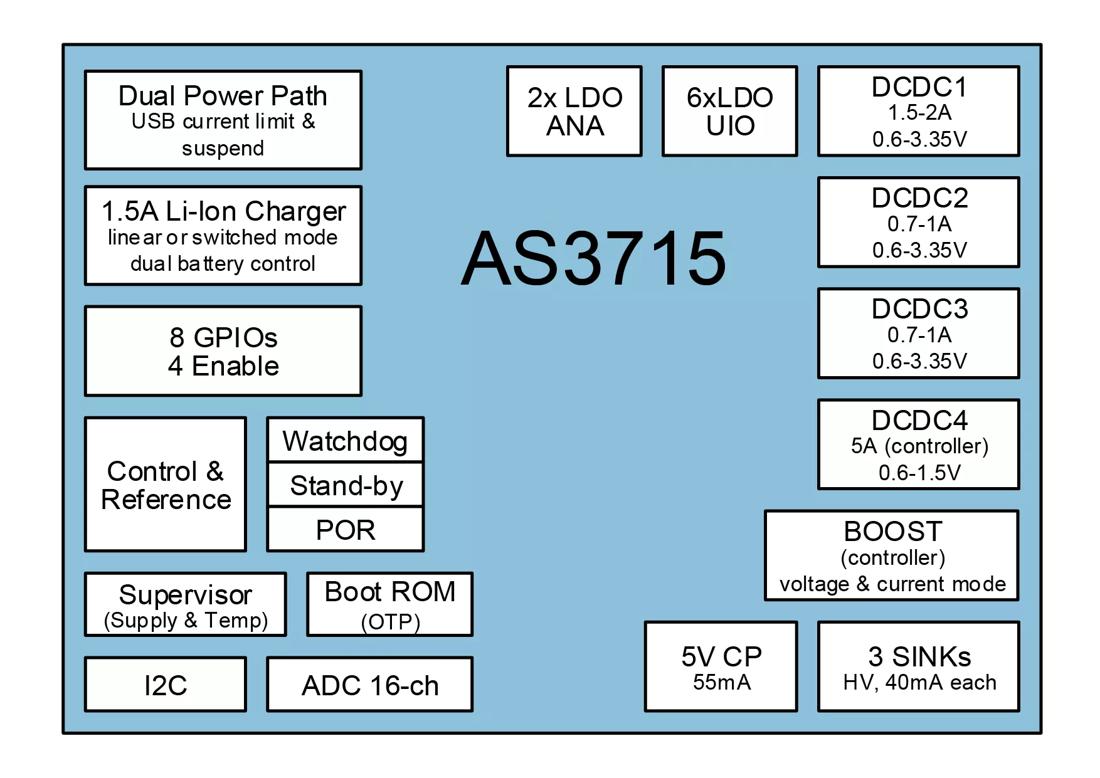

Block diagram
Related boards, kits & accessories
ams AS3715_EVM_ST Evaluation kit
The AS3715 Evaluation Kit allows you to easily evaluate the principle functionality of the AS3715 power management unit. All functions and registers can be controlled via the included PC GUI software. Kit Content: - 1 USB flash drive (includes documents and software) - Evaluation board: - AS3715: 81-pin WL-CSPCTBGA 0.5mm pitch - AS3729: 16-pin WL-CSP 0.4mm pitch
- USB connection cablePlease note that ams-OSRAM AG is discontinuing production of AS3715.
