ams AS3728 Power Management Unit

ams AS3728 Power Management Unit
Not for new design
×
Not for new design

Description

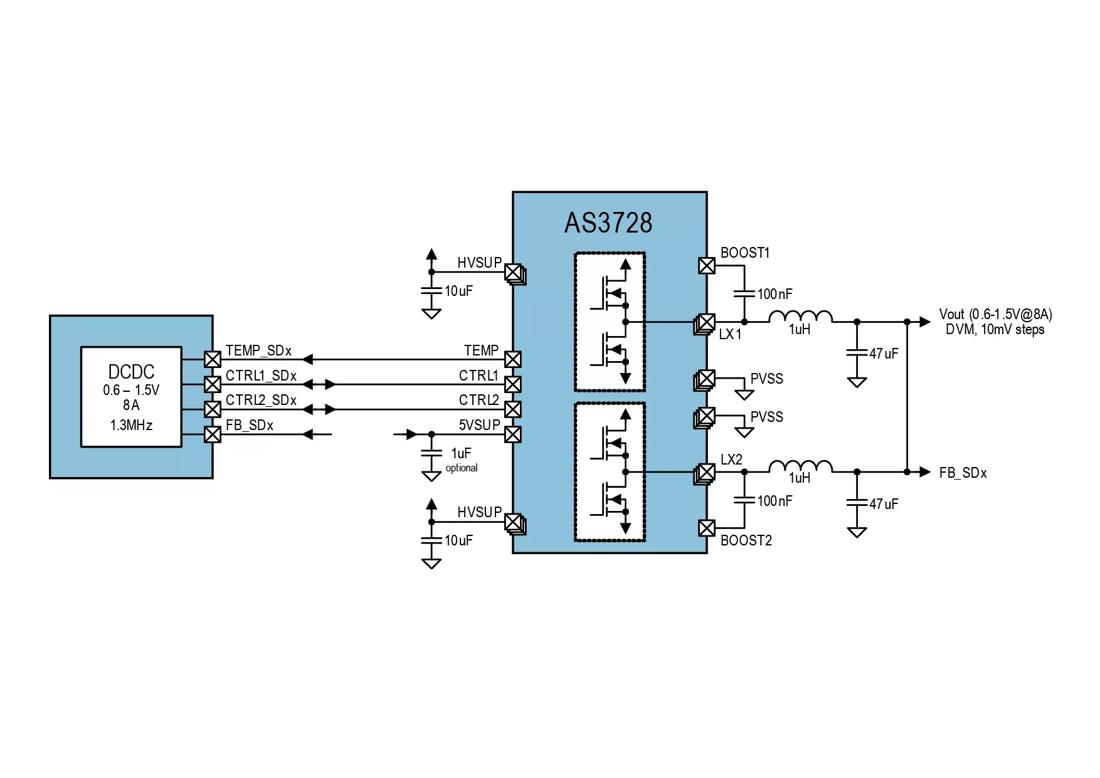

The AS3728 is a companion chip for the AS3715/21/22 PMICs containing control circuitry and power FETs for 2 phases. Up to 4 ICs can be used in parallel to achieve 32A drive capability.
Datasheet
Contact us Support

Details

Features

  • 2 phases with separate control input
  • Separate low side and high side power NMOS for 4A per phase
  • Stand-alone zero-crossing operation
  • Integrated temperature monitoring
  • 12V operating range
  • WL-CSP24: 2.415mm x 1.615mm, 0.4mm pitch

Benefits

  • Support for single or dual-phase operation
  • 2 x 4A output stages are running on 3MHz
  • Overtemperature protection
  • Direct conversion from standard 12V rails
  • Cost effective, small package
