Details
Parameters
Color of emission
Blue (450-480 nm)
Electrical power
0.46
W
Mid
Brightness
ΦV
9.38
lm
IV
3.15
cd
ΦE
276
mW
IE
92.5
mW/sr
Beam angle
∢
120
°
Operating temperature
Top
min.
-40
°C
Top
max.
110
°C
Dimension
l
3.3
mm
w
3.4
mm
h
1.9
mm
Application fields
Ordering codes
| Product Type | Description | Order No. | Availability |
|---|---|---|---|

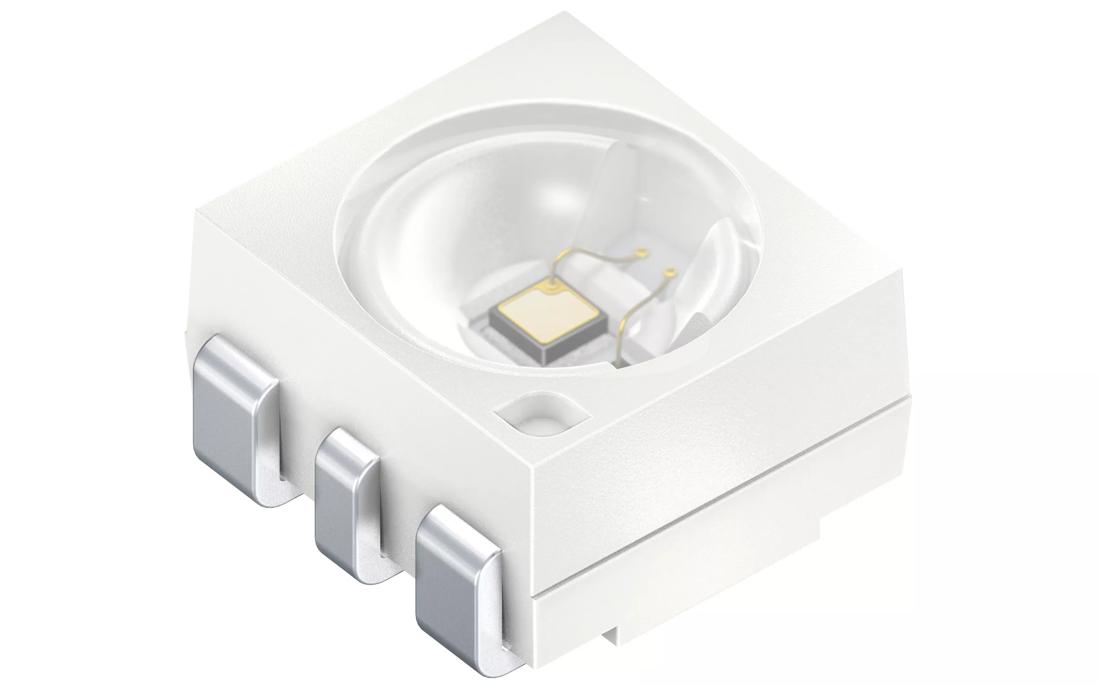

| LB G6SP-BACB-35-47 | Iv = 1.8 ... 4.5 cd (IF = 140 mA) | Q65111A8888 |
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
