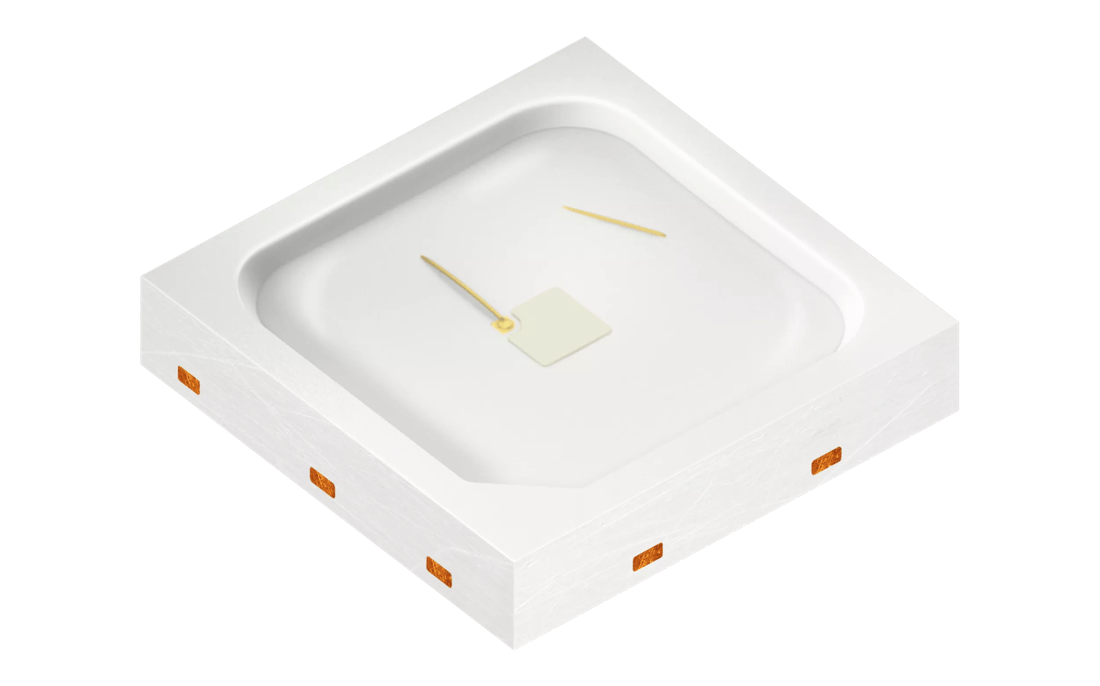

OSRAM DURIS® S 5, GT PSLM31.13

OSRAM DURIS® S 5, GT PSLM31.13
×

Description

The compact, mid-power Duris® S 5 LED with industry standard 3030 package that comes with high efficacy, color quality and long lifetime. Ideal choice for indoor General Lighting applications.
Datasheet
GT PSLM31.13
English
Download
Select & order
Contact us Support

Details

Parameters

Color of emission
True Green (513-545 nm)
Electrical power
0.27 W
Mid
Brightness
ΦV
37.5 lm
IV
12.3 cd
ΦE
72.9 mW
IE
24 mW/sr
Beam angle
∢
120 °
Operating temperature
Top min.
-40 °C
Top max.
100 °C
Dimension
l
3.0 mm
w
3.0 mm
h
0.6 mm

Ordering codes

Product Type Description Order No. Availability
GT PSLM31.13-HRHT-26-KM ΦV = 33.0 ... 41.9 lm (IF = 100 mA) Q65112A6165
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
