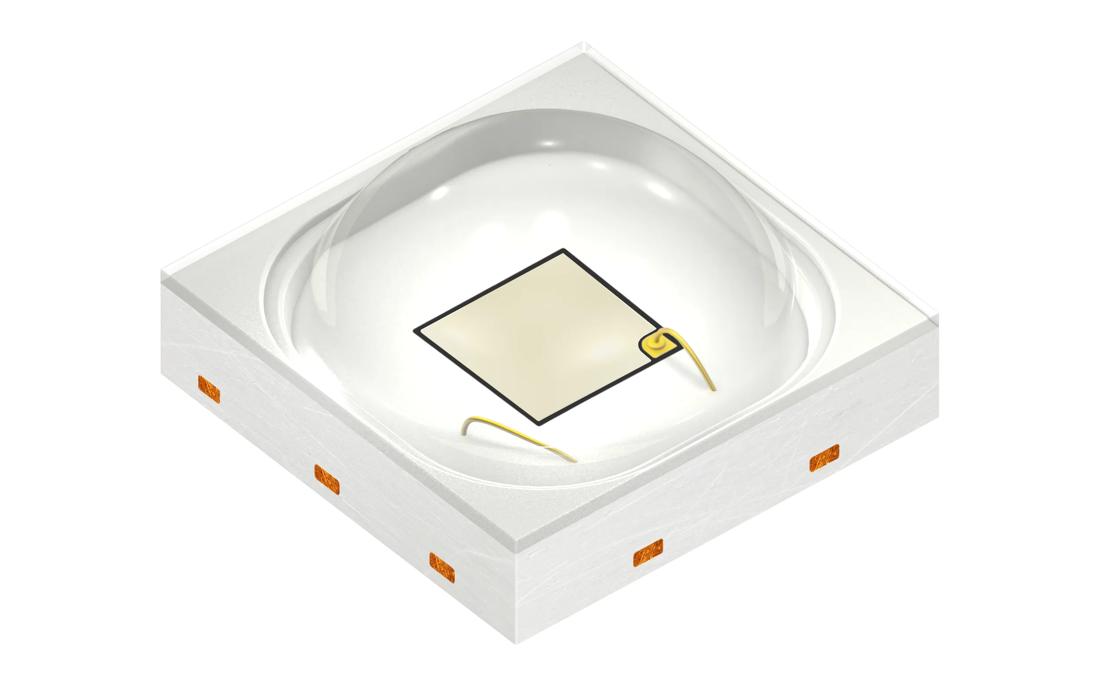

OSRAM OSCONIQ® P 3030, GT QSSPA1.13

OSRAM OSCONIQ® P 3030, GT QSSPA1.13
×

Description

The OSCONIQ P 3030 Colors family LED comes with well known superior robustness, high reliability, long lifetime, low thermal resistance. Compact and proven 3mm x 3mm package and established footprint. Perfectly addressing applications that demand for high efficiency and long lifetime.
Datasheet
GT QSSPA1.13
English
Download
Select & order
Contact us Support

Details

Parameters

Color of emission
True Green (513-545 nm)
Electrical power
0.95 W
High
Brightness
ΦV
160 lm
IV
51 cd
ΦE
312 mW
IE
99.5 mW/sr
Beam angle
∢
120 °
Operating temperature
Top min.
-40 °C
Top max.
125 °C
Dimension
l
3.0 mm
w
3.0 mm
h
0.75 mm

Ordering codes

Product Type Description Order No. Availability
GT QSSPA1.13-LSLU-T1T6-1 ΦV = 140.0 ... 180.0 lm (IF = 350 mA) Q65112A8491
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
Buy now
Distribution partners:
Digi-Key
Buy now
Farnell
Buy now
Mouser
Buy now
RS
Buy now
GT QSSPA1.13-LRLT-T1T6-1 ΦV = 130.0 ... 164.0 lm (IF = 350 mA) Q65113A3909
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
Request product

Downloads

Datasheets

GT QSSPA1.13

Datasheet
EN
DE
CN
JP

Application note

Resources

Images

Tools

Horticulture

Calculation of different horticulture lighting scenarios with variations of LED configurations and ratios to realize the desired photon flux from the fixture and estimate the resulting photon flux density on the plants for a defined system setup.
