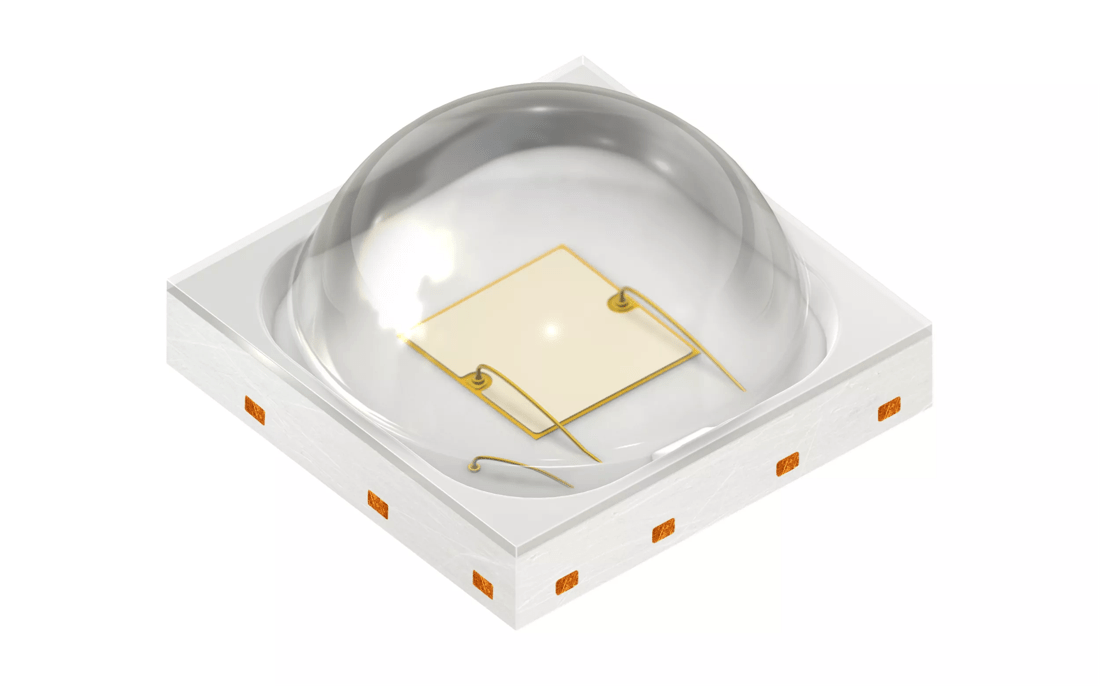

OSRAM OSCONIQ® P 3737 (2W), GD PUSRA1.15

OSRAM OSCONIQ® P 3737 (2W), GD PUSRA1.15
×

Description

High-power LED with our ams OSRAM’s latest chip technology, delivering industry leading performance, superior robustness and long lifetime. With the introduction of a new color (Red 640 nm) the family offers five colors for ease of design and high flexibility for all your horticulture spectrum needs. The OSCONIQ® P 3737 family offers Hyper Red (660 nm), Red (640nm), Deep Blue (450 nm), Far Red (730 nm) and Horti White which can cater to both narrow spectrum and full spectrum solutions to meet all crop needs for both greenhouses and vertical farms.
Datasheet
GD PUSRA1.15
English
Download
Select & order
Contact us Support

Details

Parameters

Color of emission
Deep Blue (439-461 nm)
Electrical power
2 W
High
Brightness
ΦV
39.3 lm
IV
12 cd
ΦE
1480 mW
IE
448 mW/sr
ΦP
5.5 µmol/s
Beam angle
∢
130 °
Operating temperature
Top min.
-40 °C
Top max.
125 °C

Ordering codes

Product Type Description Order No. Availability
GD PUSRA1.15-SLSN-24-1 Φ<_sub>P = 5.25 ... 6.00 μmol/s (IF = 700 mA) Q65113A7877
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
