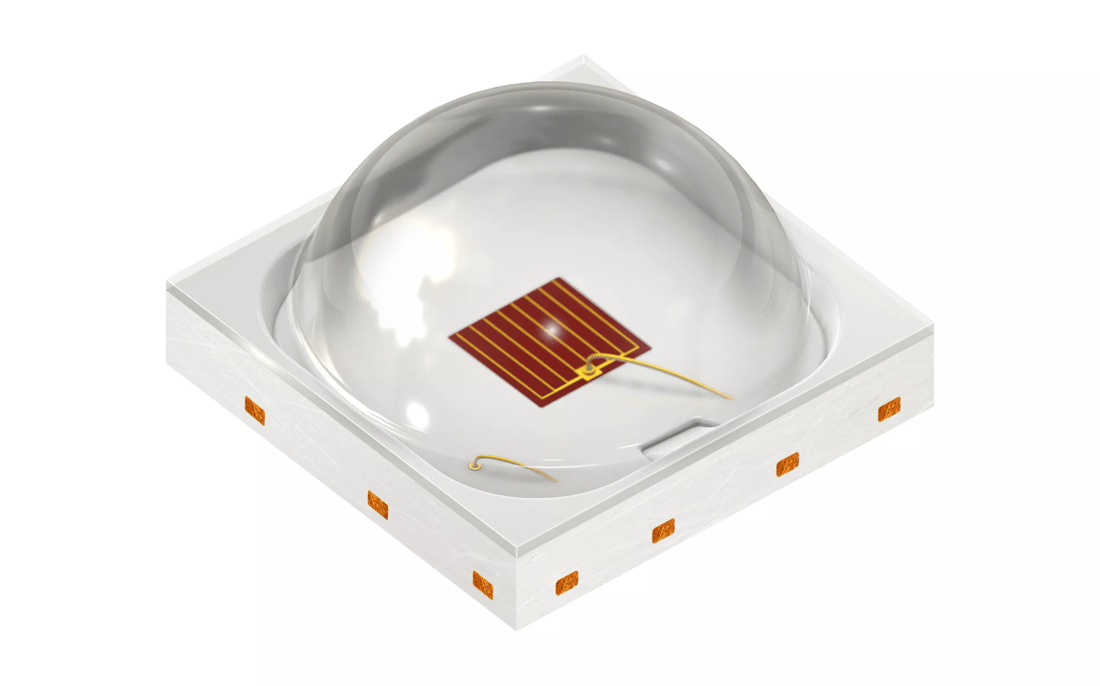

OSRAM OSCONIQ® P 3737 (2W), GF PUSRA1.25

OSRAM OSCONIQ® P 3737 (2W), GF PUSRA1.25
New
×
New

Description

High-power LED with our ams OSRAM’s latest chip technology, delivering industry leading performance, superior robustness and long lifetime. With the introduction of a new color (Red 640 nm) the family offers five colors for ease of design and high flexibility for all your horticulture spectrum needs. The OSCONIQ® P 3737 family offers Hyper Red (660 nm), Red (640nm), Deep Blue (450 nm), Far Red (730 nm) and Horti White which can cater to both narrow spectrum and full spectrum solutions to meet all crop needs for both greenhouses and vertical farms.
Select & order
Contact us Support

Details

Parameters

Color of emission
Far Red (720-740 nm)
Electrical power
1.4 W
High
Brightness
ΦV
0.97 lm
IV
0.29 cd
ΦE
813 mW
IE
243 mW/sr
ΦP
5 µmol/s
Beam angle
∢
130 °
Operating temperature
Top min.
-40 °C
Top max.
125 °C

Ordering codes

Product Type Description Order No. Availability
GF PUSRA1.25-SHSK-1-1F1J Φ<_sub>P = 4.60 ... 5.25 μmol/s (IF = 700 mA) Q65113A7878
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
Buy now
Distribution partners:
Digi-Key
Buy now
GF PUSRA1.25-SHSK-1-1 Φ<_sub>P = 4.60 ... 5.25 μmol/s (IF = 700 mA) Q65113A8573
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
Request product
