OSRAM OSCONIQ™ P 3737 (2W), GF PUSRA2.25

Discontinued
×
Discontinued

Description

High-power LED with our ams OSRAM’s latest chip technology, delivering industry leading performance, superior robustness and long lifetime. With the introduction of a new color (Red 640 nm) the family offers five colors for ease of design and high flexibility for all your horticulture spectrum needs. The OSCONIQ™ P 3737 family offers Hyper Red (660 nm), Red (640nm), Deep Blue (450 nm), Far Red (730 nm) and Horti White which can cater to both narrow spectrum and full spectrum solutions to meet all crop needs for both greenhouses and vertical farms.
Datasheet
GF PUSRA2.25
English
Download
Select & order
Contact us Support

Details

Parameters

Color of emission
Far Red (720-740 nm)
Electrical power
1.2 W
High
Brightness
ΦV
0.97 lm
IV
0.272 cd
ΦE
620 mW
IE
174 mW/sr
ΦP
0.00595 µmol/s
Beam angle
∢
130 °
Operating temperature
Top min.
-40 °C
Top max.
125 °C
Dimension
l
3.7 mm
w
3.7 mm
h
2.15 mm

Ordering information

Product Type Description Ordering code Availability
GF PUSRA2.25-SLSN-1-1 Φ<_sub>P = 5.25 ... 6.00 μmol/s (IF = 700 mA) Q65113A8605 Discontinued

Downloads

Datasheets
GF PUSRA2.25 · Datasheet · PDF · en_US

Application note
Brilliant Mix and Mix-to-Match — Professional white for general lighting applications · Product related · PDF · en_US
High power OSCONIQ™ P — Details on properties, handling and processing · Product related · PDF · en_US
Light quality — White light parameters · Product related · PDF · en_US
Light quality — Color metrics · Product related · PDF · en_US
Customer complaint management — Details on return shipments for failure analysis request (FAR) · General information · PDF · en_US
Details on photobiological safety of LED light sources · General information · PDF · en_US
Importing rayfiles and ray-measurement files of LEDs · General information · PDF · en_US
Chemical compatibility of LEDs · General information · PDF · en_US
Measurement, calibration and measurement uncertainty of LEDs · General information · PDF · en_US
ESD protection while handling LEDs · Handling recommendations · PDF · en_US
Dry pack information · Handling recommendations · PDF · en_US
Details on lead-free reflow soldering of LEDs · Soldering and processing · PDF · en_US
Manual lead-free soldering of LEDs · Soldering and processing · PDF · en_US
Comparison of simple LED circuits for low power LEDs · Electrical design · PDF · en_US
Determination of resistances for brightness compensation · Electrical design · PDF · en_US
Dimming InGaN LEDs · Electrical design · PDF · en_US
LED driving technology for long term flexibility · Electrical design · PDF · en_US
The basic principles of Electrical Overstress (EOS) · Electrical design · PDF · en_US

Resources
CAD Data · CAD Data · FOLDER
Electrical Simulation · Electrical Simulation · FOLDER
Optical Simulation · Optical Simulation · FOLDER

Images

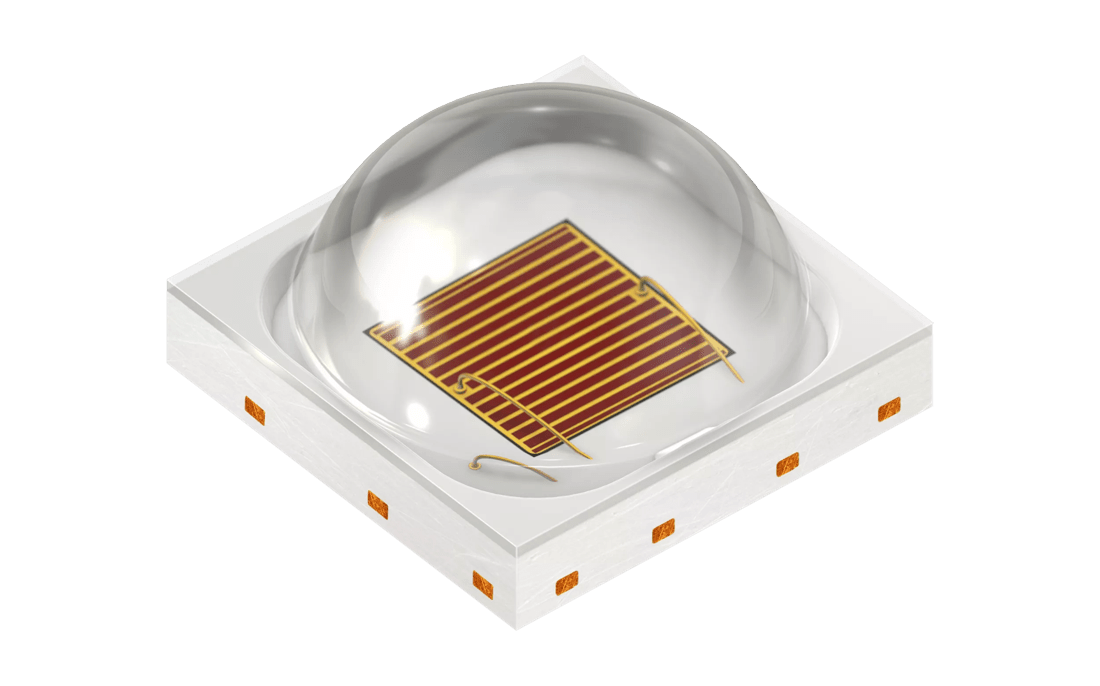

GH_PUSRA1-25_42x26mm_cmyk · Images · TIF
