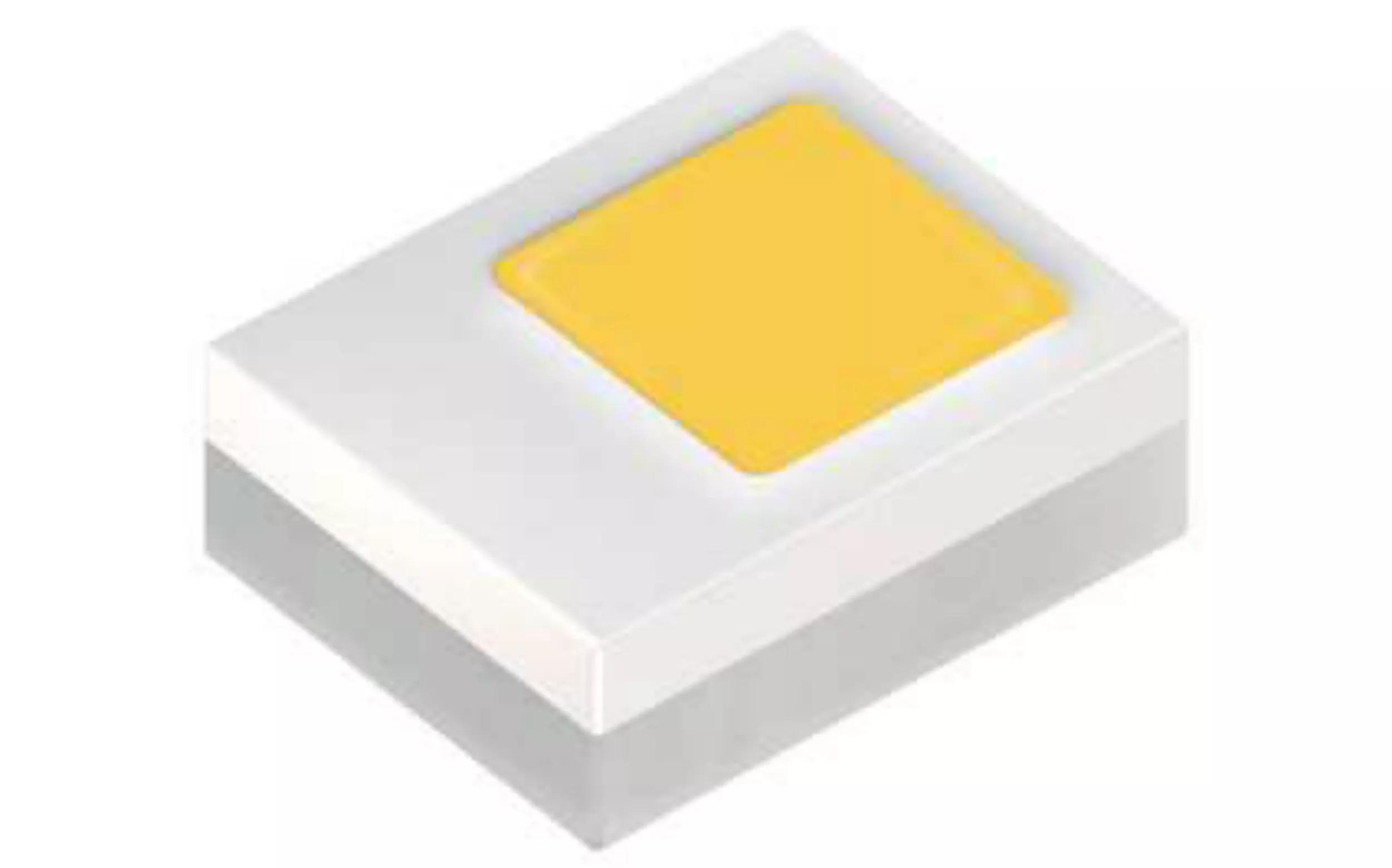

OSRAM OSLON™ Compact PL, KY CELNM1.FY

Name: OSRAM OSLON™ Compact PL, KY CELNM1.FY
Brand: ams-OSRAM AG

Discontinued

Description

Compact light source with isolated thermal pad for improved heat dissipation and small z-tolerance (+/- 35 µm).

Datasheet

Select & order

Replacement Products

OSRAM OSLON™ Compact PL, KY CELNM2.FY

Compact light source with an isolated thermal pad for improved heat dissipation and providing small z-tolerance (+/-35 µm). The OSLON Compact PL product family meets both excellent brightness in combination with outstanding luminance.

Details and Datasheet

Details

Parameters

Color of emission

Yellow (580-595 nm)

Electrical power

3.0 W

High

Brightness

Φ_V

212 lm

I_V

70.5 cd

Φ_E

602 mW

I_E

200 mW/sr

Beam angle

∢

120 °

Operating temperature

T_op min.

-40 °C

T_op max.

125 °C

Dimension

1.9 mm

1.5 mm

0.74 mm

Device qualification

AEC-Q102

Application fields

Automotive & mobility Side marker & turn indicator

Ordering information

Product Type	Description	Ordering code	Availability
KY CELNM1.FY-Z8L8-5F5G-15B3	Φ_V = 159 ... 265 lm (I_F = 1000 mA)	Q65112A1575	Discontinued
