OSRAM OSLON™ Pure 1414, GR VJLPL1.23

×

Description

The OSLON Pure™ 1414, one of the best lumen density, excellent efficiency and color homogeneity. The OSLON Pure™ 1414 come with full color spectrum and color temperature of 1800K to 6500K that enable customer to perform color tuning and tight clustering. It can be use stand alone as well as in cluster together to achieve the spectrum that you need.
Datasheet
GR VJLPL1.23
English
Download
Select & order
Contact us Support

Details

Parameters

Color of emission
Red (612-630 nm)
Electrical power
0.79 W
High
Brightness
ΦV
85 lm
IV
21.1 cd
ΦE
543 mW
IE
135 mW/sr
Beam angle
∢
140 °
Operating temperature
Top min.
-40 °C
Top max.
100 °C
Dimension
l
1.4 mm
w
1.4 mm
h
0.85 mm

Ordering information

Product Type Description Ordering code Availability
GR VJLPL1.23-KQKS-A4R2-1 ΦV = 76.3 ... 97.0 lm (IF = 350 mA) Q65113A7184 Full production

Downloads

Datasheets
GR VJLPL1.23 · Datasheet · PDF · en_US

Application note
OSLON™ Pure 1414 · Product related · PDF · en_US
Customer complaint management — Details on return shipments for failure analysis request (FAR) · General information · PDF · en_US
Details on photobiological safety of LED light sources · General information · PDF · en_US
Importing rayfiles and ray-measurement files of LEDs · General information · PDF · en_US
Chemical compatibility of LEDs · General information · PDF · en_US
Measurement, calibration and measurement uncertainty of LEDs · General information · PDF · en_US
ESD protection while handling LEDs · Handling recommendations · PDF · en_US
Handling of silicon resin LEDs · Handling recommendations · PDF · en_US
Dry pack information · Handling recommendations · PDF · en_US
Details on lead-free reflow soldering of LEDs · Soldering and processing · PDF · en_US
Manual lead-free soldering of LEDs · Soldering and processing · PDF · en_US
Measuring of the temperature profile during the reflow solder process · Soldering and processing · PDF · en_US
Processing of SMD LEDs · Soldering and processing · PDF · en_US
Recommended pick-and-place tools of LEDs · Soldering and processing · PDF · en_US
PCB technologies for LED applications · Thermal management · PDF · en_US
Comparison of simple LED circuits for low power LEDs · Electrical design · PDF · en_US
Determination of resistances for brightness compensation · Electrical design · PDF · en_US
LED driving technology for long term flexibility · Electrical design · PDF · en_US
The basic principles of Electrical Overstress (EOS) · Electrical design · PDF · en_US

Resources
CAD Data · CAD Data · FOLDER
Electrical Simulation · Electrical Simulation · FOLDER
Optical Simulation · Optical Simulation · FOLDER

Images

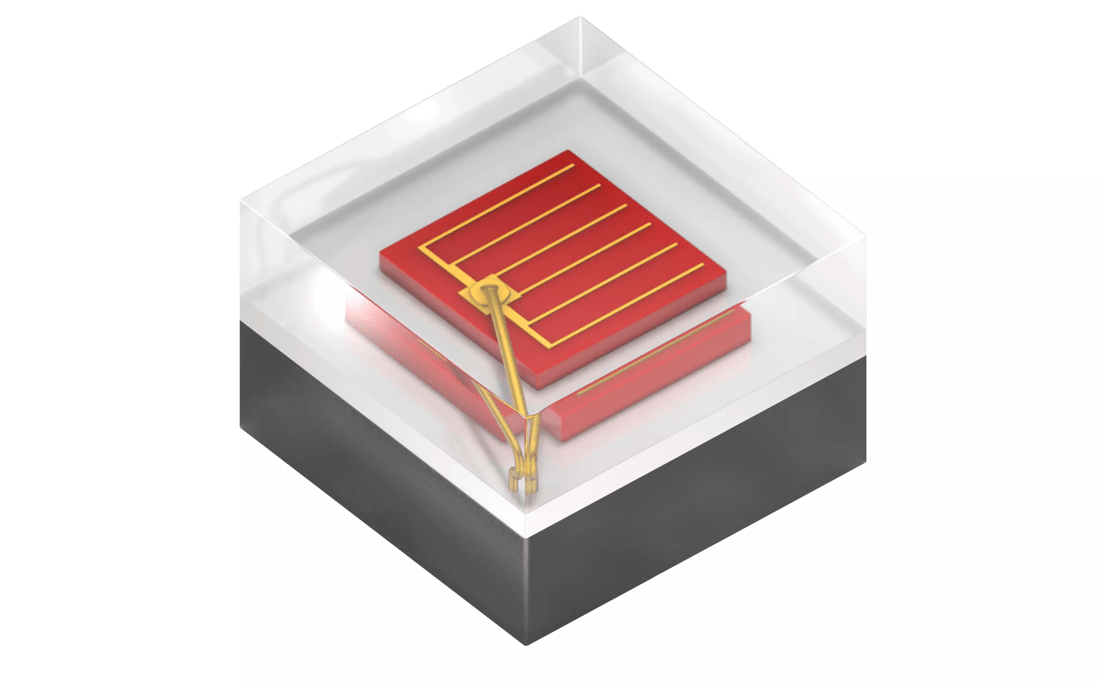

CSP 1414 product DC Red · Images · TIF
