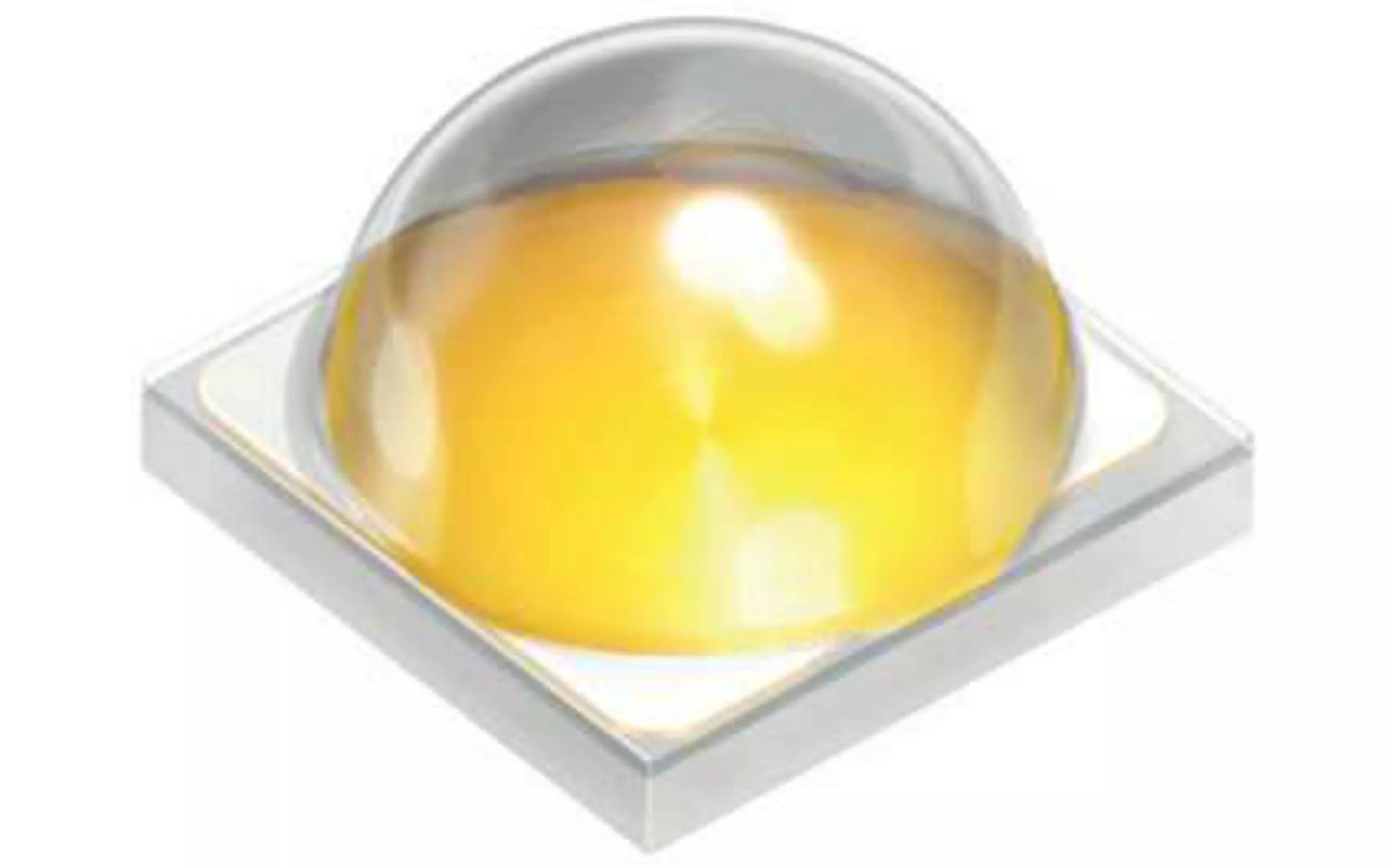

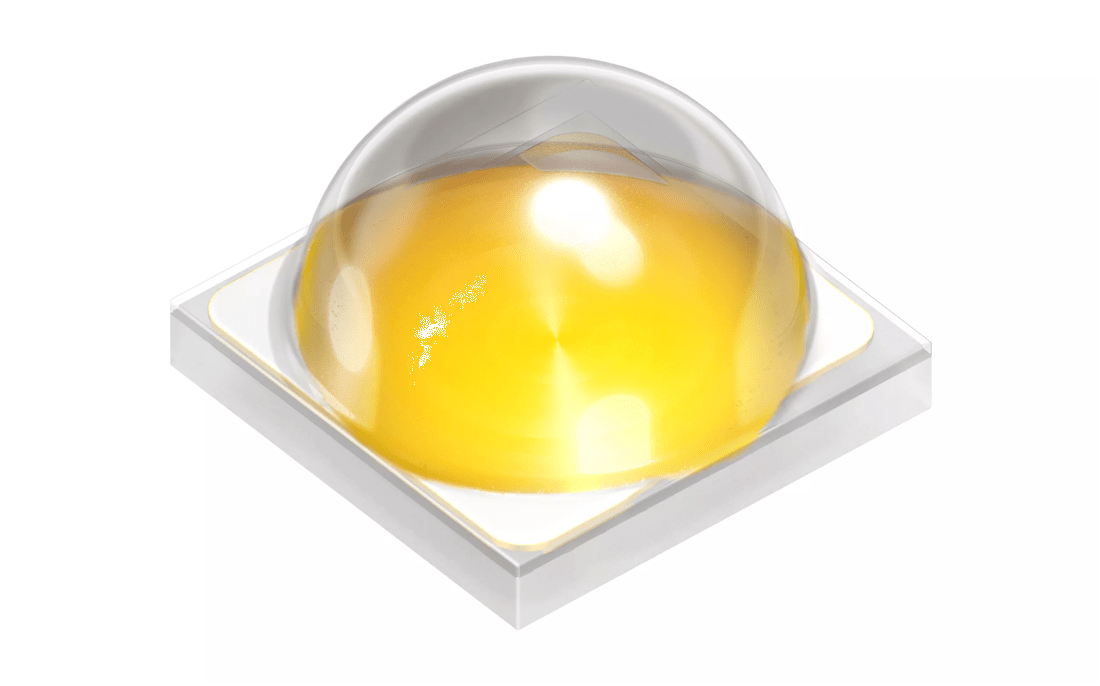

OSRAM OSLON® Signal, LCY CRBP.01

Description

The OSLON® Signal combines a compact form factor with high efficiency and electrically insulated thermal pad. The square package matches the optical center with the mechanical center. This provides easy clustering flexibility and high packing density for a maximum flux density. The color bins are defined for best fit to most signaling norms.

Datasheet

Select & order

Details

Parameters

Color of emission

Yellow (580-595 nm)

Electrical power

1.0 W

High

Brightness

Φ_V

124 lm

I_V

43.8 cd

Φ_E

377 mW

I_E

134 mW/sr

Beam angle

∢

110 °

Operating temperature

T_op min.

-40 °C

T_op max.

125 °C

Dimension

3.0 mm

2.02 mm

Application fields

Industrial Robotics Home & building automation Material processing Projection & display Factory automation Appliances & tools Access control & security

Lighting Outdoor & industrial lighting

Ordering codes

Product Type	Description	Order No.	Availability
LCY CRBP.01-KZLY-5F5G-Y474	Φ_V = 97.0 ... 150.0 lm (I_F = 350 mA)	Q65113A3468	Status information Full production Pre-production Not planned for new design Ordering and shipping are still possible Discontinued Buy now By clicking this button you will be transferred to the dedicated site of our logistics partner, Mouser Electronics where your purchase can be completed. Your payment and order details provided for this purpose will be shared between Mouser Electronics and ams OSRAM. More details on the data processing in question can be found in the Privacy Policy of the Mouser shop. Buy From Distributors: Digi-Key Buy now Farnell Buy now Mouser Buy now
