Details
Parameters
Color of emission
Deep Blue (439-461 nm)
Electrical power
0.46
W
Mid
Beam angle
∢
60
°
Operating temperature
Top
min.
-40
°C
Top
max.
125
°C
Dimension
l
3.0
mm
w
3.0
mm
h
2.43
mm
Ordering codes
| Product Type | Description | Order No. | Availability |
|---|---|---|---|
| LD CN5M-4Q4R-35-1 | ΦE = 100 ... 180 mW (IF = 140 mA) | Q65110A8683 |
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
|
| LD CN5M-1R1S-35-1 | ΦE = 112 ... 201 mW (IF = 140 mA) | Q65110A9085 |
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
By clicking this button you will be transferred to the dedicated site of our logistics partner, Mouser Electronics where your purchase can be completed. Your payment and order details provided for this purpose will be shared between Mouser Electronics and ams OSRAM. More details on the data processing in question can be found in the Privacy Policy of the Mouser shop.
|
Downloads
Application note
General information
General information
General information
General information
General information
Handling recommendations
Handling recommendations
Handling recommendations
Handling recommendations
Soldering and processing
Soldering and processing
Soldering and processing
Soldering and processing
Thermal management
Thermal management
Thermal management
Thermal management
Electrical design
Electrical design
Electrical design
Electrical design
Electrical design
Electrical design
Resources
Electrical Simulation
Images
Images
Tools
LightGuide
Calculate the effectiveness of an LED based on a selected light guide by showing the amount of incoupled, reflected and missed light rays.
Product selector
Find the right product.
More OSLON® SX

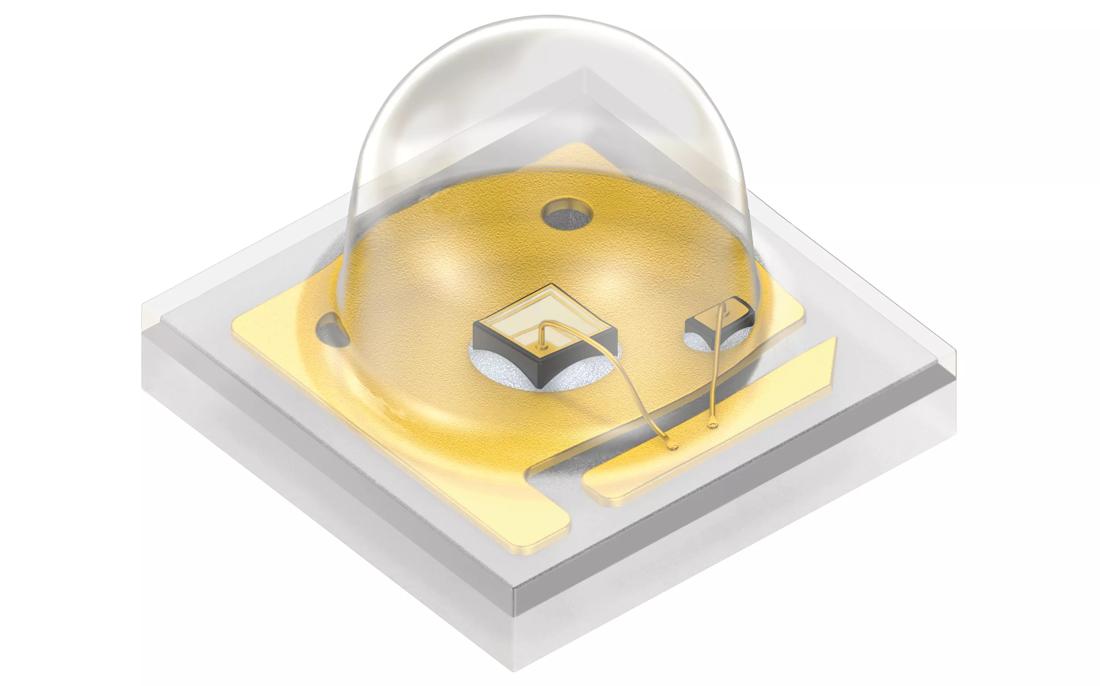

OSLON® SX – Compact lensed mid-power LED for multiple illumination and signaling applications.
