Details
Parameters
Color of emission
Amber (609-624 nm)
Electrical power
70
W
Ultra High
Brightness
Ī¦V
4400
lm
IV
1470
cd
Ī¦E
18200
mW
IE
6090
mW/sr
Beam angle
ā¢
120
Ā°
Dimension
l
27
mm
w
15.5
mm
h
1.5
mm
Ordering codes
| Product Type | Description | Order No. | Availability |
|---|---|---|---|

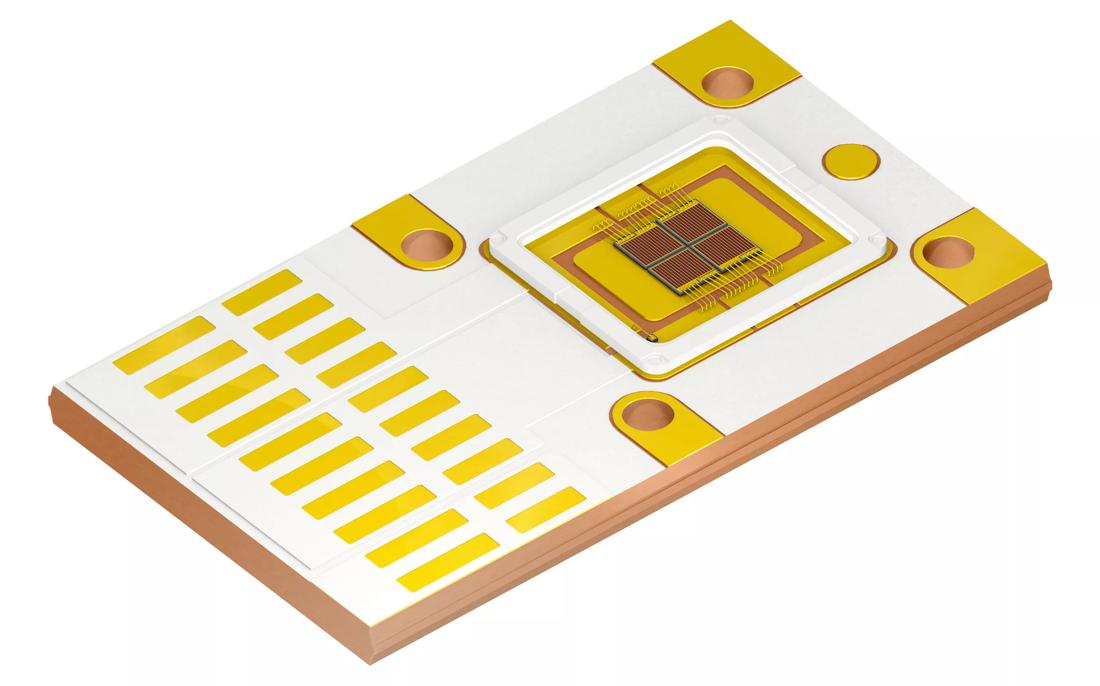

| LE A P2MQ-TTUQ-W2 | Ī¦V = 3900 ... 5200 lm (IF = 6000 mA) | Q65113A6958 |
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
|
