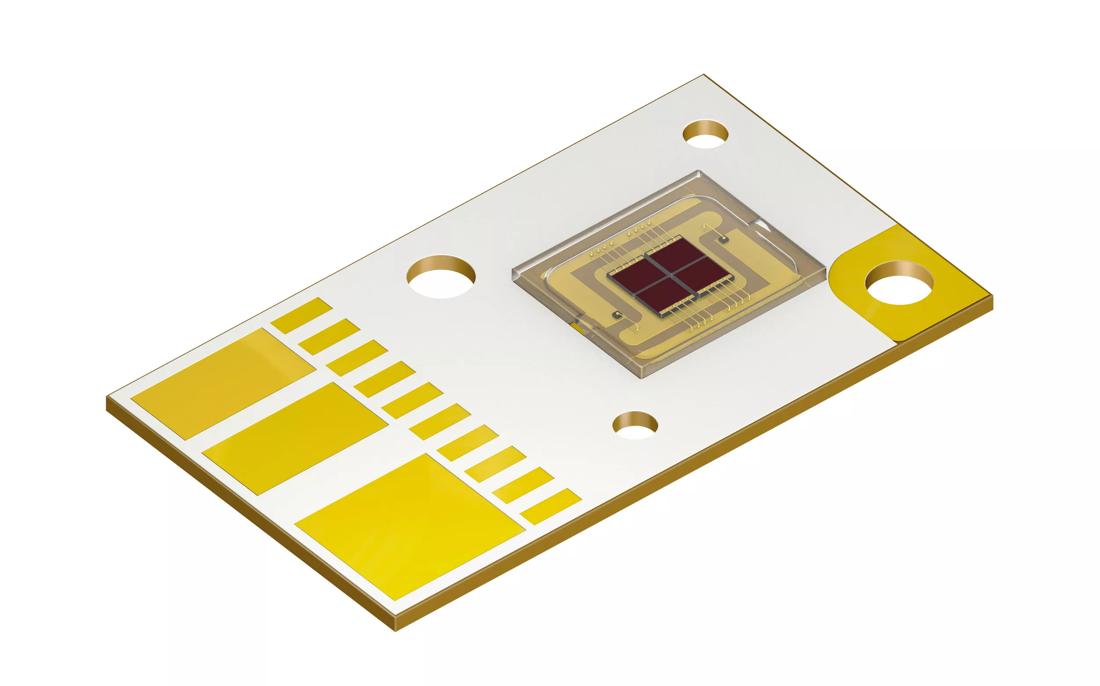

OSRAM OSRAM OSTAR® Projection Power, LE A P2W
Discontinued
×
Discontinued
Details
Parameters
Color of emission
Amber (609-624 nm)
Electrical power
72.0
W
Ultra High
Brightness
ΦV
3090
lm
IV
1110
cd
ΦE
12800
mW
IE
4590
mW/sr
Beam angle
∢
120
°
Operating temperature
Top
min.
-40
°C
Top
max.
100
°C
Dimension
l
27.0
mm
w
15.5
mm
h
2.1
mm
Ordering codes
| Product Type | Description | Order No. | Availability |
|---|---|---|---|
| LE A P2W-SUTR-23 | ΦV = 2590 ... 3590 lm (IF = 24000 mA) | Q65112A7738 |
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
|
