OSRAM OSRAM OSTAR™ Projection Power, LE CG P1AQ

×

Description

OSRAM OSTAR Projection Power is a high luminance LED for projection applications.
Datasheet
LE CG P1AQ
English
Download
Chinese
Download
Select & order
Contact us Support

Details

Parameters

Color of emission
Green (565-575 nm)
Electrical power
80.0 W
Ultra High
Brightness
ΦV
7750 lm
IV
2500 cd
ΦE
16800 mW
IE
5420 mW/sr
ΦP
35.3 µmol/s
Beam angle
∢
120 °
Dimension
l
27.0 mm
w
15.5 mm
h
1.5 mm

Ordering information

Product Type Description Ordering code Availability
LE CG P1AQ-UUVR-A ΦV = 6580 ... 8920 lm (IF = 10000 mA) Q65115A0636 Full production

Downloads

Datasheets
LE CG P1AQ · Datasheet · PDF · en_US

Application note
Projection with LED light sources · Product related · PDF · en_US
Handling of the OSRAM OSTAR™ Projection Power · Product related · PDF · en_US
Customer complaint management — Details on return shipments for failure analysis request (FAR) · General information · PDF · en_US
Details on photobiological safety of LED light sources · General information · PDF · en_US
Importing rayfiles and ray-measurement files of LEDs · General information · PDF · en_US
Chemical compatibility of LEDs · General information · PDF · en_US
Measurement, calibration and measurement uncertainty of LEDs · General information · PDF · en_US
Fundamentals of LED handling · Handling recommendations · PDF · en_US
ESD protection while handling LEDs · Handling recommendations · PDF · en_US
Handling of silicon resin LEDs · Handling recommendations · PDF · en_US
Dry pack information · Handling recommendations · PDF · en_US
Details on lead-free reflow soldering of LEDs · Soldering and processing · PDF · en_US
Ceramic LEDs — Details on handling and processing · Soldering and processing · PDF · en_US
Manual lead-free soldering of LEDs · Soldering and processing · PDF · en_US
Package related thermal resistance of LEDs · Thermal management · PDF · en_US
LED solder point temperature measurement with thermocouples · Thermal management · PDF · en_US
Thermal management of LED light sources · Thermal management · PDF · en_US
The thermal measurement point of LEDs · Thermal management · PDF · en_US
Comparison of simple LED circuits for low power LEDs · Electrical design · PDF · en_US
Dimming LEDs with respect to grouping current · Electrical design · PDF · en_US
The basic principles of Electrical Overstress (EOS) · Electrical design · PDF · en_US
LED diagnosis in automotive applications · Electrical design · PDF · en_US

Resources
CAD Data · CAD Data · FOLDER
Electrical Simulation · Electrical Simulation · FOLDER
Optical Simulation · Optical Simulation · FOLDER

Images

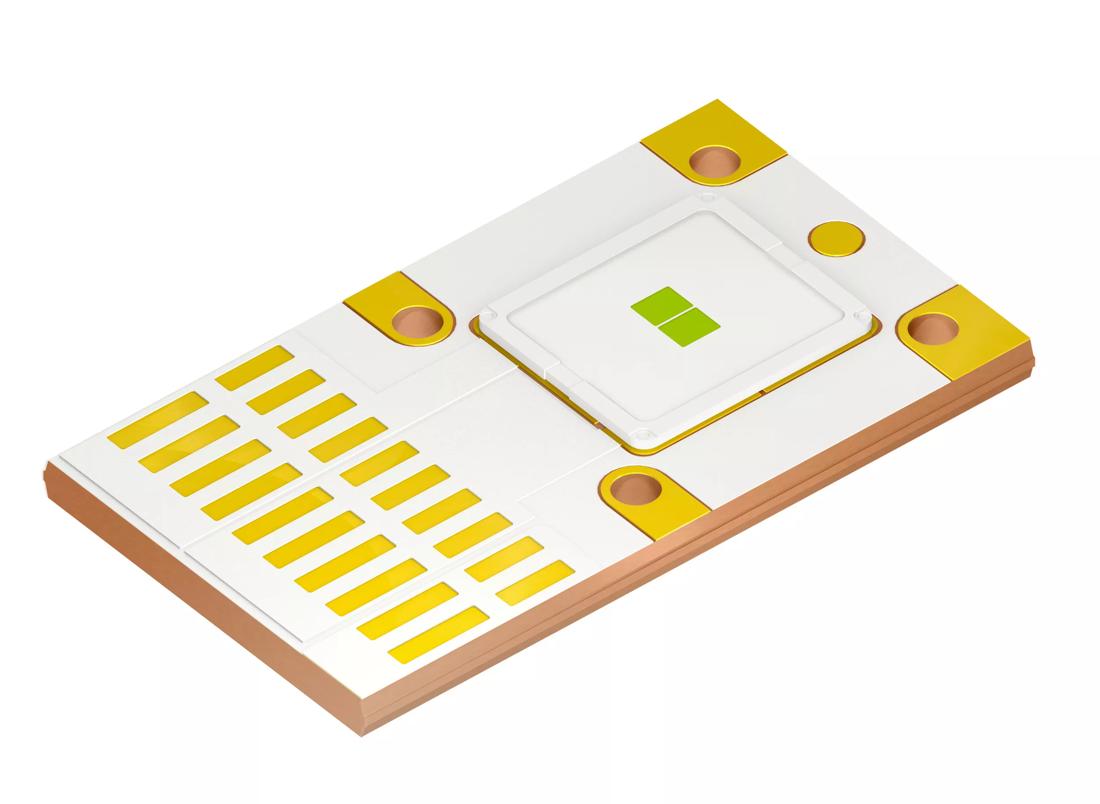

LE_CG_P1AQ_ver1 · Images · JPG
