OSRAM PointLED™, LT PWSG

Description

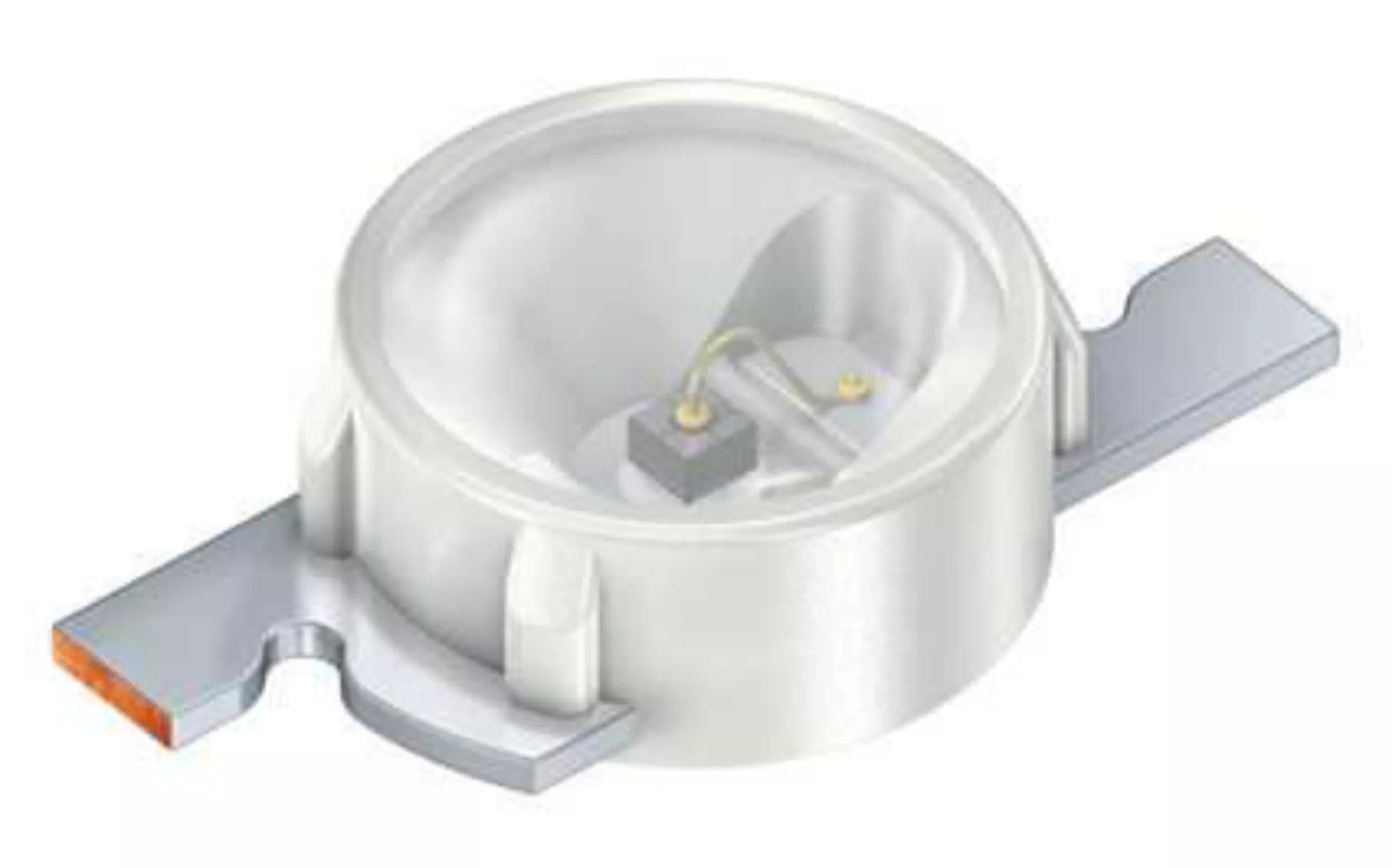

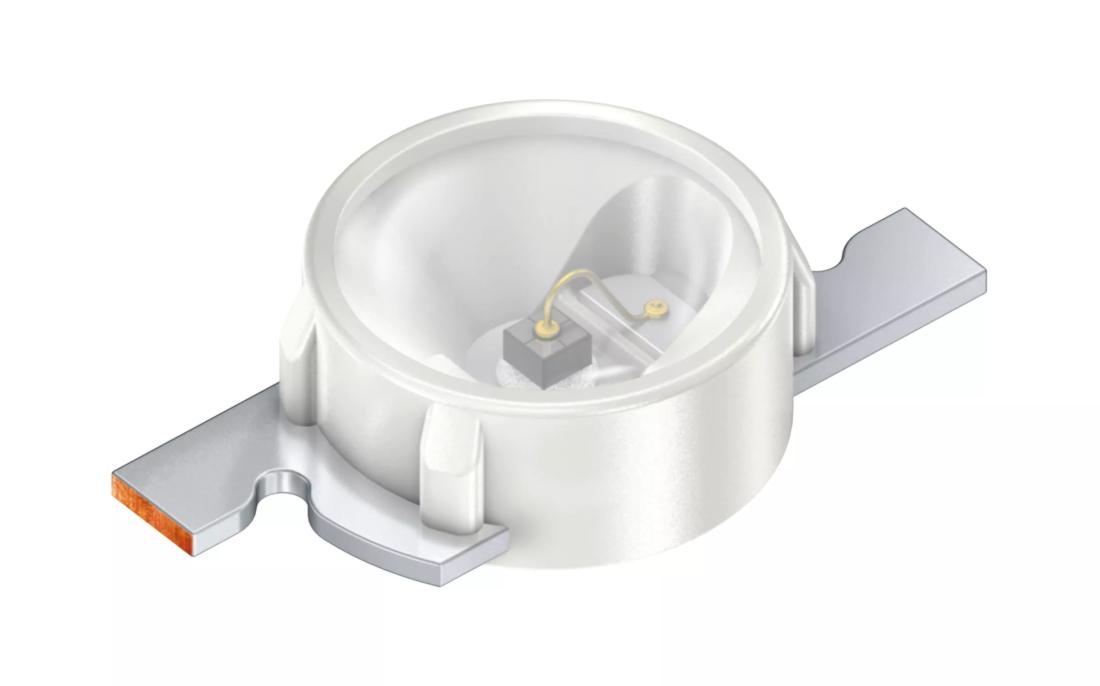

With a diameter of just 2 mm, the PointLED is one of the smallest packages in its class and achieves high luminous efficacies. Due to its round and flat package, measuring only 0.775 mm high, it is ideal for application where space is a sensitive issue.

Datasheet

Select & order

Details

Parameters

Color of emission

True Green (513-545 nm)

Electrical power

0.053 W

Low

Brightness

Φ_V

8 lm

I_V

2.67 cd

Φ_E

15.6 mW

I_E

5.22 mW/sr

Beam angle

∢

120 °

Operating temperature

T_op min.

-40 °C

T_op max.

100 °C

Dimension

3.4 mm

1.25 mm

0.83 mm

Application fields

Industrial Robotics Home & building automation Material processing Projection & display Factory automation Appliances & tools Access control & security

Automotive & mobility Display backlighting

Ordering information

Product Type	Description	Ordering code	Availability
LT PWSG-BACA-36-N626	I_v = 1800 ... 3550 mcd, Mountingmethode:Reverse (I_F = 20 mA)	Q65112A7313	Full production
LT PWSG-BACA-36-N626-F	I_v = 1800 ... 3550 mcd, Mountingmethode:Top (I_F = 20 mA)	Q65112A9119	Full production
