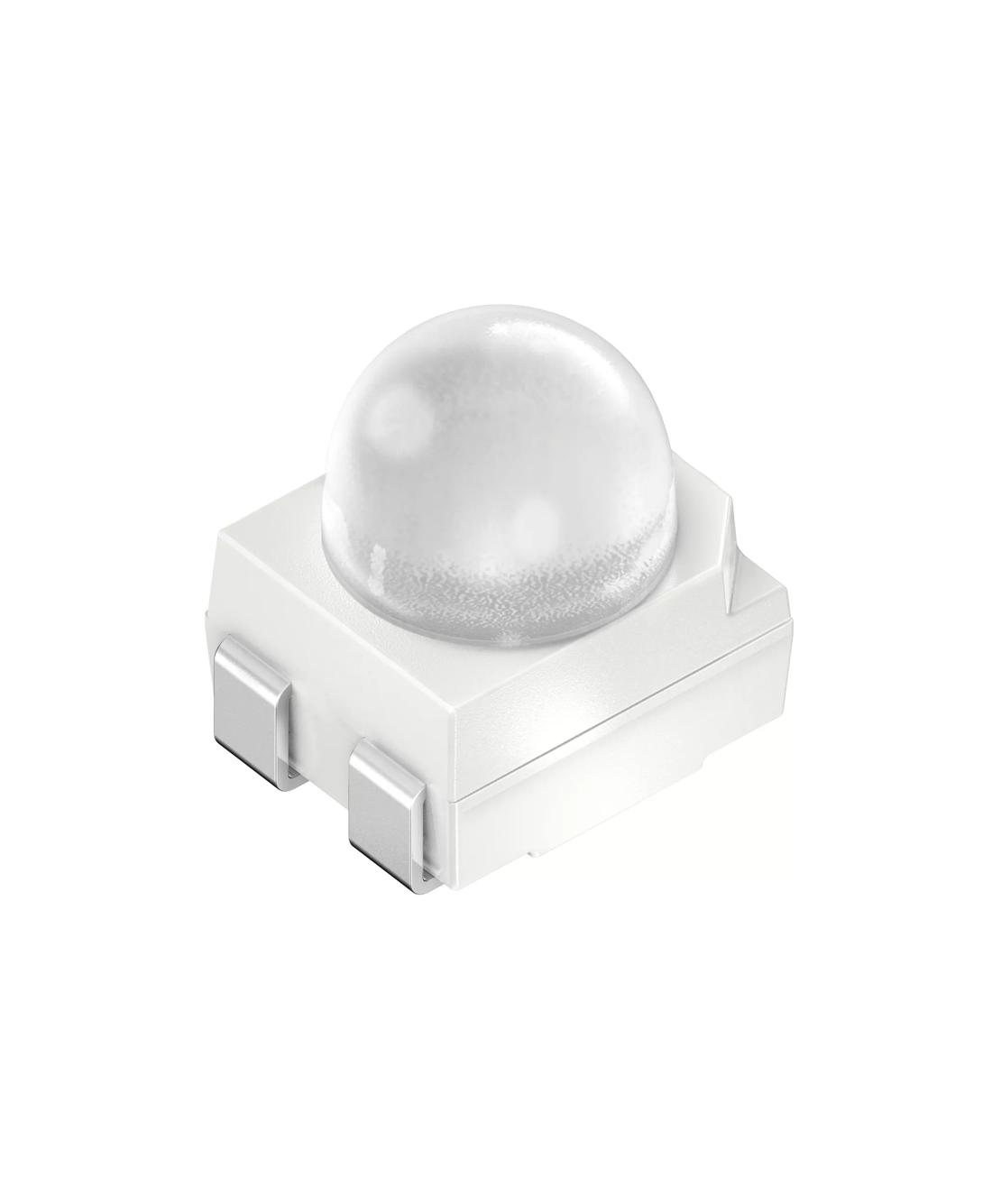

OSRAM Power TOPLED® Lens, LT E63C

Name: OSRAM Power TOPLED® Lens, LT E63C
Brand: ams-OSRAM AG

Discontinued

Description

PowerTOPLED with lens, a powerful member of the TOPLED family. Thanks to their high luminous efficacy, the LEDs are ideal for rear light clusters and indicators on vehicles and for display panels for traffic control systems.

Datasheet

Select & order

Replacement Products

OSRAM TOPLED® E1608, KT DELSS1.12

The TOPLED E1608 expands ams OSRAM’ low power portfolio by offering one of the smallest LED Industry standard footprints in a highly reliable and well proved package concept. Its outstanding performance is suitable for a huge variety of applications especially automotive interior where a small package design with excellent reliability is needed. The TOPLED E1608 is available in different colors and brightness levels.

Details and Datasheet

Details

Parameters

Color of emission

True Green (513-545 nm)

Electrical power

0.11 W

Low

Brightness

Φ_V

2.82 lm

I_V

2.29 cd

Φ_E

5.41 mW

I_E

4.39 mW/sr

Beam angle

∢

20 °

Operating temperature

T_op min.

-40 °C

T_op max.

100 °C

Dimension

3.2 mm

2.8 mm

3.5 mm

Application fields

Automotive & mobility Static signaling Automotive Aftermarket

Ordering codes

Product Type	Description	Order No.	Availability
LT E63C-BADB-35-1	E_v = 1800 ... 7100 lx (I_F = 30 mA)	Q65110A1981	Status information Full production Pre-production Not planned for new design Ordering and shipping are still possible Discontinued Buy now By clicking this button you will be transferred to the dedicated site of our logistics partner, Mouser Electronics where your purchase can be completed. Your payment and order details provided for this purpose will be shared between Mouser Electronics and ams OSRAM. More details on the data processing in question can be found in the Privacy Policy of the Mouser shop. Buy From Distributors: Mouser Buy now
