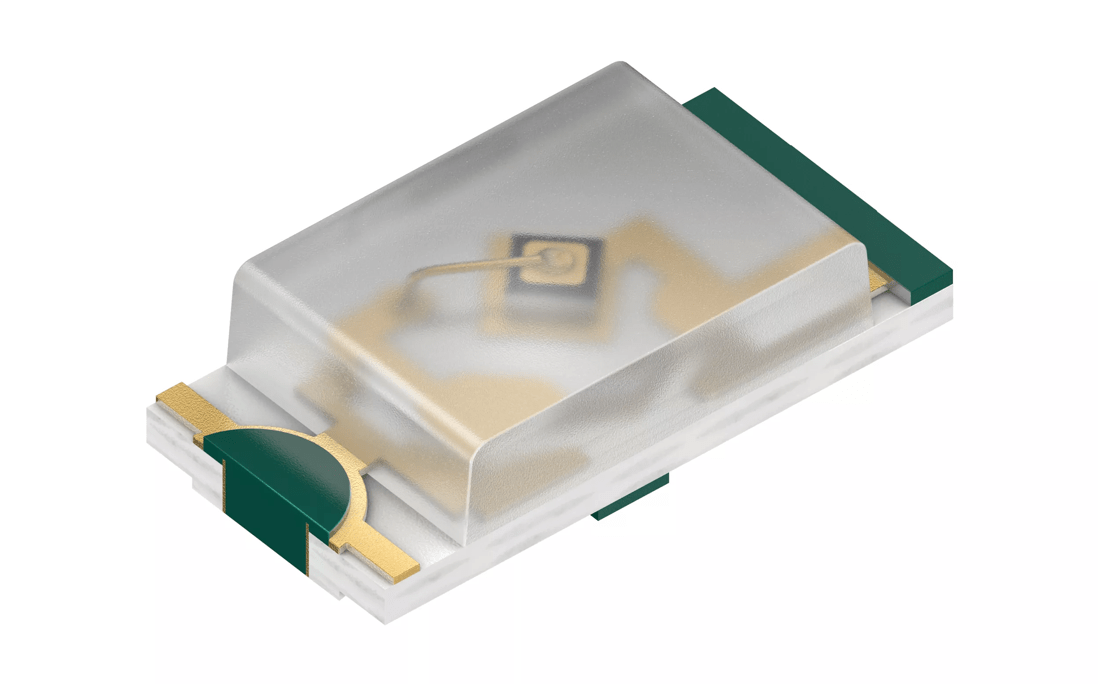

OSRAM SMARTLED® 0603, KR EELP41.22

New

Description

The SMARTLED® 0603 is the product of choice for status indication and symbol backlighting in electronics. The small package size allows compact designs. The improved corrosion robustness and increased junction temperature range makes the devices from this series suitable for professional industrial equipment and applications.

Datasheet

Select & order

Details

Parameters

Color of emission

Red (612-630 nm)

Electrical power

0.039 W

Low

Brightness

Φ_V

0.408 lm

I_V

0.115 cd

Φ_E

2.3 mW

I_E

0.648 mW/sr

Beam angle

∢

130 °

∢

130 °

Operating temperature

T_op min.

-40 °C

T_op max.

105 °C

Dimension

1.6 mm

0.8 mm

0.7 mm

Application fields

Industrial Home & building automation Projection & display Factory automation Appliances & tools

Automotive & mobility Static signaling Display backlighting Transportation

Ordering codes

Product Type	Description	Order No.	Availability
KR EELP41.22-Q1S1-36-A8J8	I_v = 71 ... 224 mcd (I_F = 20 mA)	Q65113A7467	Status information Full production Pre-production Not planned for new design Ordering and shipping are still possible Discontinued Buy now By clicking this button you will be transferred to the dedicated site of our logistics partner, Mouser Electronics where your purchase can be completed. Your payment and order details provided for this purpose will be shared between Mouser Electronics and ams OSRAM. More details on the data processing in question can be found in the Privacy Policy of the Mouser shop. Buy From Distributors: Mouser Buy now
