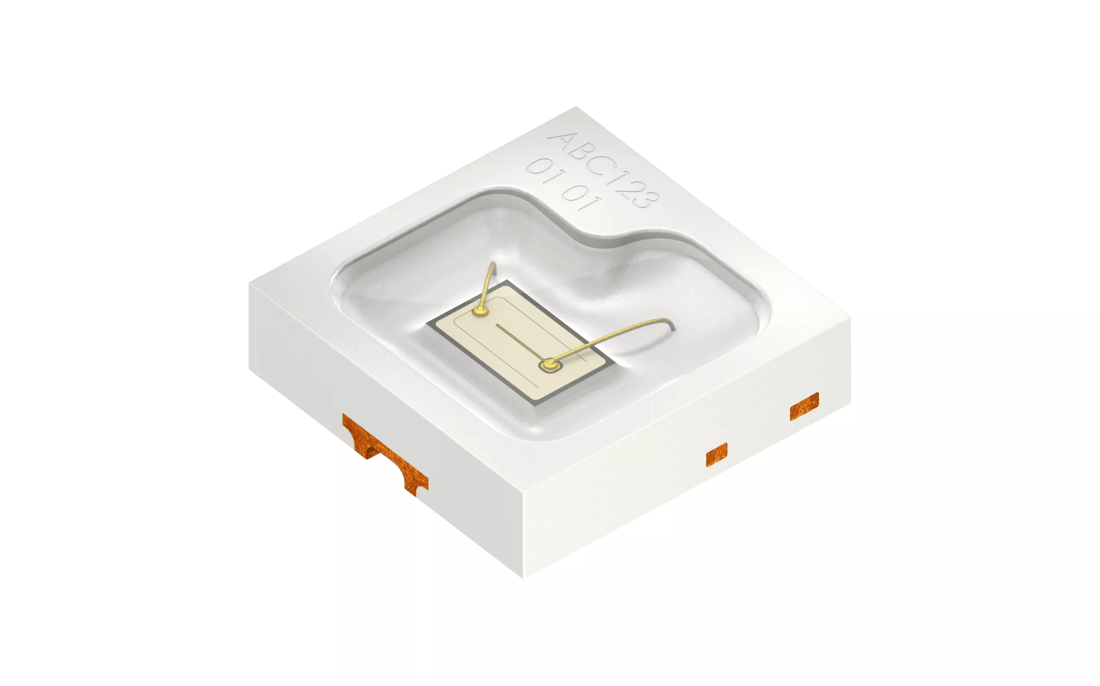

OSRAM SYNIOS™ P2222, KC DDLN31.13

×

Description

The SYNIOS™ P2222 is the new standard mid-power LED for Automotive Signaling applications. It features a small package outline and is available in all application-specific colors.
Datasheet
KC DDLN31.13
English
Download
Chinese
Download
KC DDLN31.13 specified at 200mA
English
Download
Chinese
Download
Select & order
Contact us Support

Details

Parameters

Color of emission
Cyan (482-492 nm)
Electrical power
0.65 W
Mid
Brightness
ΦV
16.8 lm
IV
5.72 cd
ΦE
83.9 mW
IE
28.6 mW/sr
ΦP
0.0694 µmol/s
Beam angle
∢
120 °
Operating temperature
Top min.
-40 °C
Top max.
125 °C
Dimension
l
2.25 mm
w
2.25 mm
h
0.6 mm
Device qualification
AEC-Q102

Ordering information

Product Type Description Ordering code Availability
KC DDLN31.13-6H7J-37-8E8G ΦV = 31.5 ... 63.0 lm (IF = 200 mA) Q65113A9782 Full production
KC DDLN31.13-7F6G-37-8D8F ΦV = 14.0 ... 22.4 lm (IF = 65 mA) Q65113A8019 Full production
