OSRAM SYNIOS® P2222, KS DDLN31.23

OSRAM SYNIOS® P2222, KS DDLN31.23
×

Description

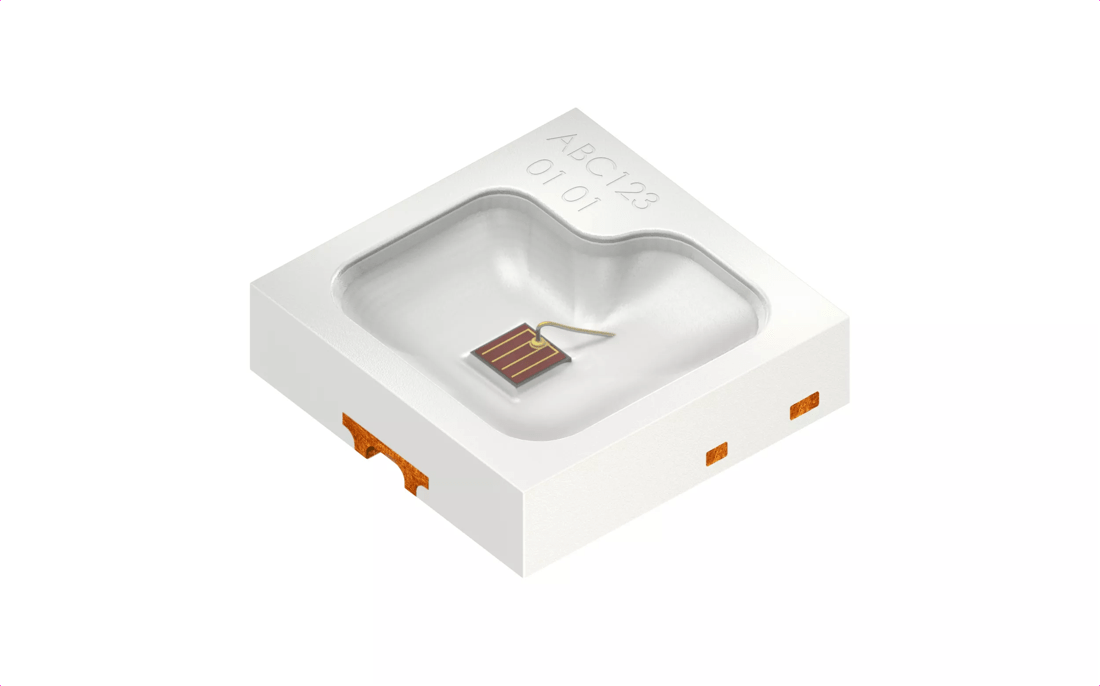

The SYNIOS® P2222 is the new standard mid-power LED for Automotive Signaling applications. It features a small package outline and is available in all application-specific colors.
Datasheet
KS DDLN31.23
English
Download
Chinese
Download
Select & order
Contact us Support

Details

Parameters

Color of emission
Super Red (627-639 nm)
Electrical power
0.45 W
Mid
Brightness
ΦV
30.1 lm
IV
9.63 cd
ΦE
254 mW
IE
81.5 mW/sr
ΦP
0.161 µmol/s
Beam angle
∢
120 °
Operating temperature
Top min.
-40 °C
Top max.
125 °C
Dimension
l
2.2 mm
w
2.2 mm
h
0.65 mm

Ordering codes

Product Type Description Order No. Availability
KS DDLN31.23-5G7H-68-J3T3 ΦV = 18.0 ... 40.0 lm (IF = 200 mA) Q65113A5127
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
