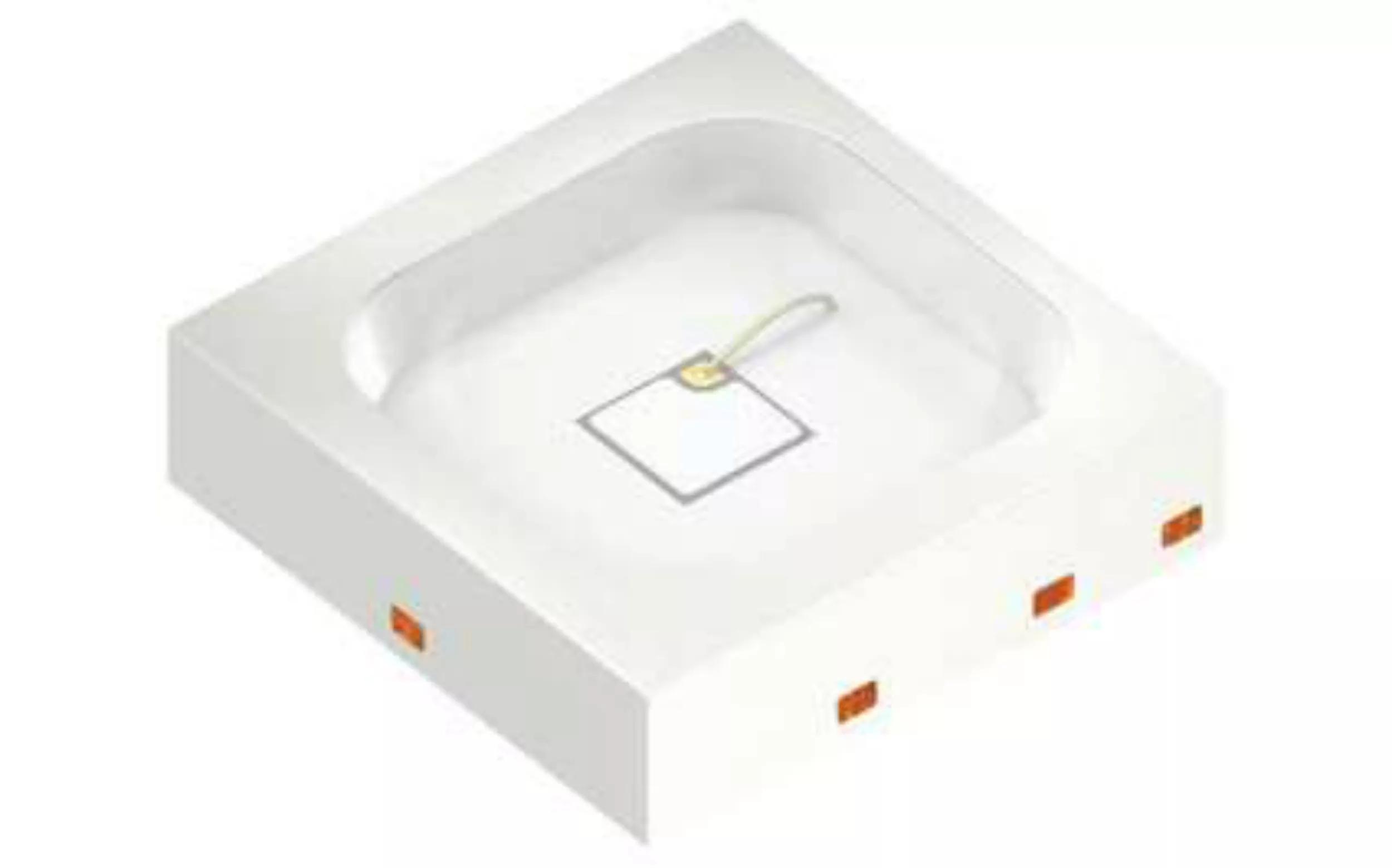

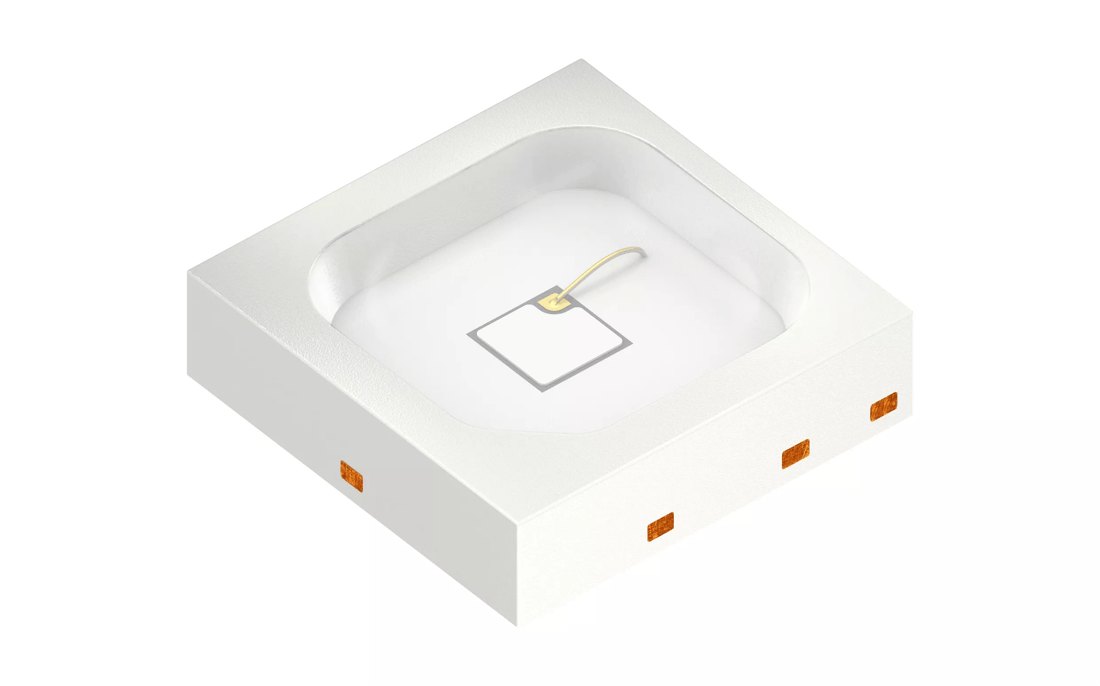

OSRAM SYNIOS™ S2222, KT DDLM31.13

Not for new design
×
Not for new design

Description

This square package with just 2mm outline combines best performance with a small footprint. A centralized chip allows an easy integration in optical systems. The availability of different main colors and white points gives highest flexibility in various application areas.
Datasheet
KT DDLM31.13
English
Download
Chinese
Download
Select & order
Contact us Support

Details

Parameters

Color of emission
True Green (513-545 nm)
Electrical power
0.39 W
Mid
Brightness
ΦV
47.5 lm
IV
15.9 cd
ΦE
92.3 mW
IE
31 mW/sr
Beam angle
∢
120 °
Operating temperature
Top min.
-40 °C
Top max.
110 °C
Dimension
l
2.25 mm
w
2.25 mm
h
0.6 mm

Ordering information

Product Type Description Ordering code Availability
KT DDLM31.13-6H7J-36-W4A4 ΦV = 31.5 ... 63.0 lm (IF = 140 mA) Q65112A5714 Not planned for new design

Downloads

Datasheets
KT DDLM31.13 · Datasheet · PDF · en_US

Application note
Light guides · Product related · PDF · en_US
Customer complaint management — Details on return shipments for failure analysis request (FAR) · General information · PDF · en_US
Details on photobiological safety of LED light sources · General information · PDF · en_US
Preventing LED failures caused by corrosive materials · General information · PDF · en_US
Long-term availability management · General information · PDF · en_US
Importing rayfiles and ray-measurement files of LEDs · General information · PDF · en_US
Chemical compatibility of LEDs · General information · PDF · en_US
Measurement, calibration and measurement uncertainty of LEDs · General information · PDF · en_US
Fundamentals of LED handling · Handling recommendations · PDF · en_US
ESD protection while handling LEDs · Handling recommendations · PDF · en_US
Handling of silicon resin LEDs · Handling recommendations · PDF · en_US
Dry pack information · Handling recommendations · PDF · en_US
Details on lead-free reflow soldering of LEDs · Soldering and processing · PDF · en_US
Measuring of the temperature profile during the reflow solder process · Soldering and processing · PDF · en_US
Processing of SMD LEDs · Soldering and processing · PDF · en_US
Package related thermal resistance of LEDs · Thermal management · PDF · en_US
LED solder point temperature measurement with thermocouples · Thermal management · PDF · en_US
Thermal management of LED light sources · Thermal management · PDF · en_US
Comparison of simple LED circuits for low power LEDs · Electrical design · PDF · en_US
Dimming LEDs with respect to grouping current · Electrical design · PDF · en_US
The basic principles of Electrical Overstress (EOS) · Electrical design · PDF · en_US
