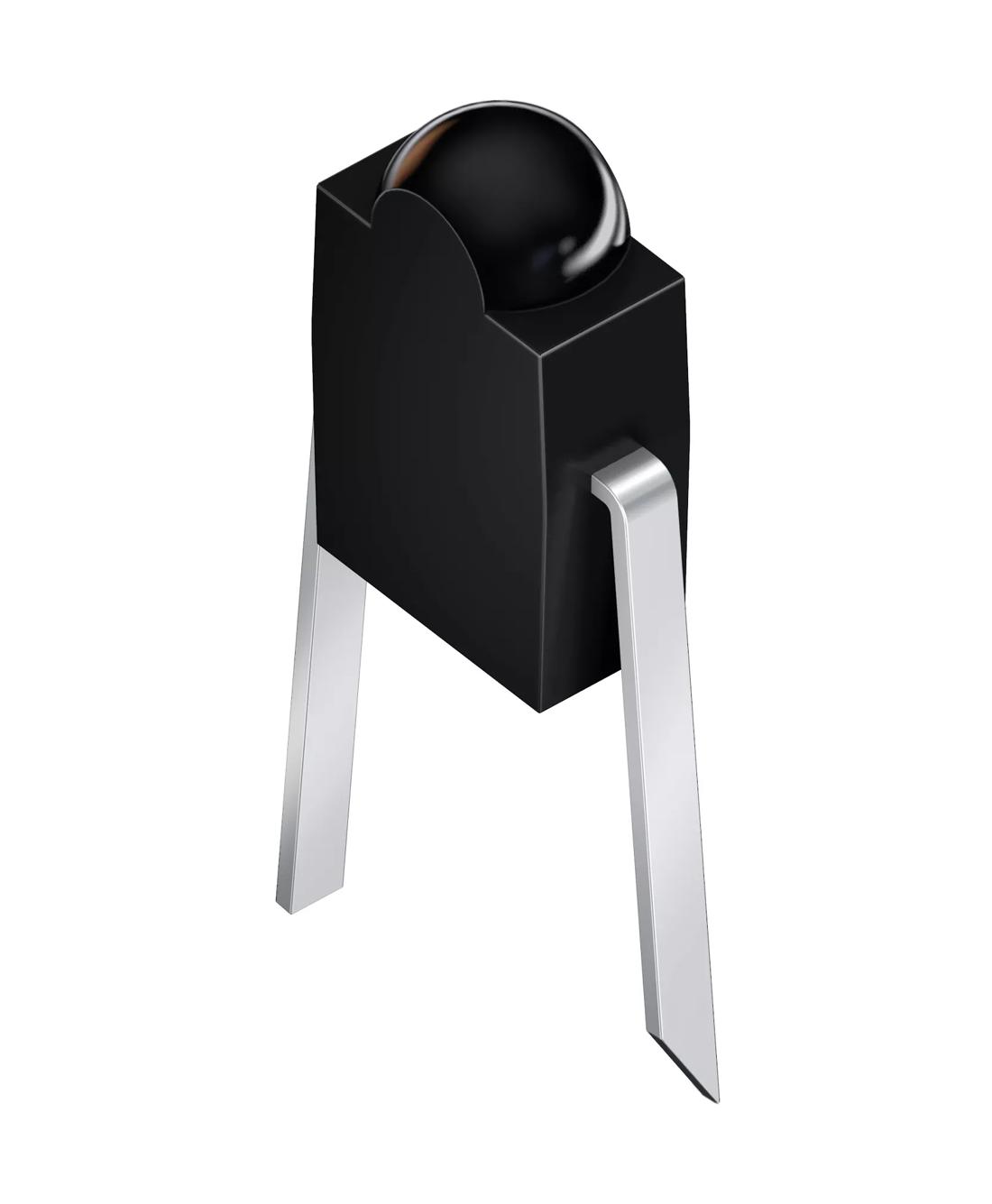

OSRAM Array Mini, SFH 4941 C

Discontinued
×
Discontinued

Description

Infrared Emitter (940 nm)
Datasheet
SFH 4941 C
English
Download
Select & order
Contact us Support

Details

Parameters

Color of emission
Infrared (>800 nm)
Current
IF
30 mA
Peak wavelength
λ
950 nm
Brightness
ΦE
20 mW
IE
30 mW/sr
Beam angle
∢
20 °
Dimension
l
1.1 mm
w
2.1 mm
h
3.5 mm
Operating temperature
Top min.
-40 °C
Top max.
80 °C

Ordering information

Product Type Description Ordering code Availability
SFH 4941C Ie = 10 ... 80 mW/sr, (Ie=30 mW/sr typ.) (IF = 30 mA) Q65111A6124 Discontinued
