Details
Parameters
Color of emission
Infrared (>800 nm)
Current
IF
100
mA
Peak wavelength
λ
950
nm
Brightness
ΦE
55
mW
IE
60
mW/sr
Beam angle
∢
40
°
Dimension
l
3.0
mm
w
2.4
mm
h
1.2
mm
Operating temperature
Top
min.
-40
°C
Top
max.
85
°C
Ordering codes
| Product Type | Description | Order No. | Availability |
|---|---|---|---|

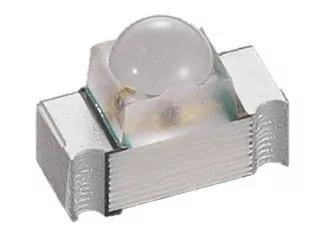

| SFH 4047 | Ie = 18 ... 112 mW/sr, (Ie=60 mW/sr typ.) (IF = 100 mA) | Q65113A4940 |
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
|
