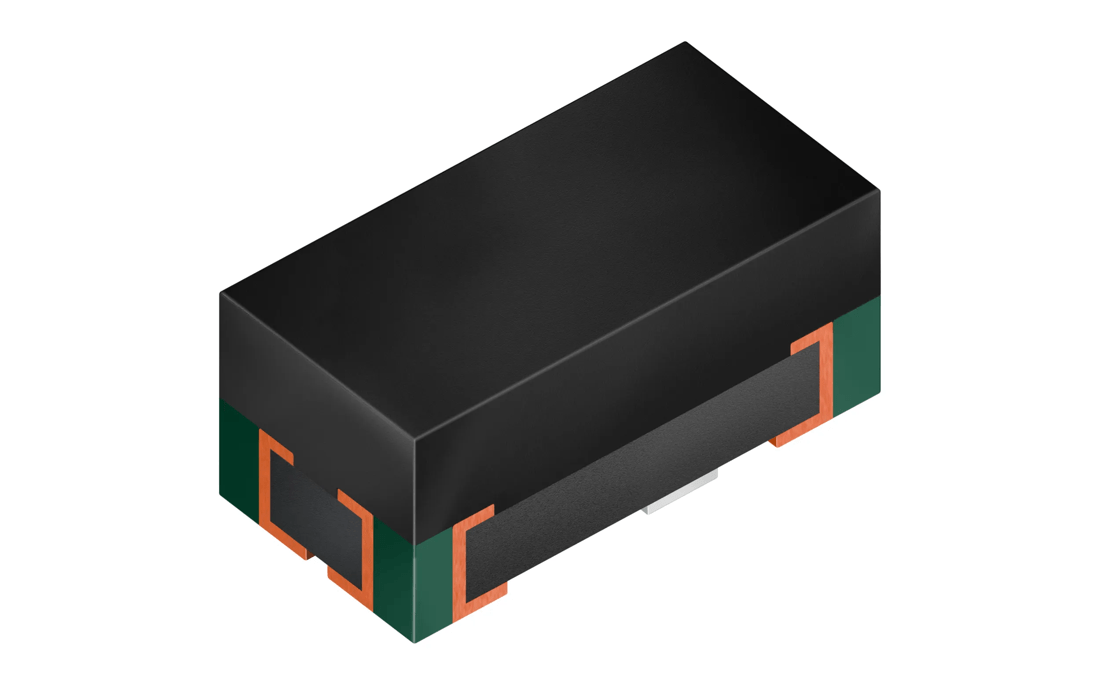

OSRAM Chip LED, SFH 4043B

New
×
New

Description

Infrared Emitter (940 nm) ams OSRAM’s innovative Thinfilm IR:6 Chip technology redefines the capabilities of IR-based applications such as eye tracking in AR/VR systems. It delivers brighter infrared illumination while extending battery life thanks to its superior efficiency. Housed in a completely dark package, it enables seamless, nearly invisible integration into modern device designs.
Datasheet
SFH 4043B
English
Download
Chinese
Download
Select & order
Contact us Support

Details

Parameters

Color of emission
Infrared (>800 nm)
Current
IF
70 mA
Peak wavelength
λ
950 nm
Brightness
ΦE
50 mW
IE
9 mW/sr
Beam angle
∢
140 °
Dimension
l
1.0 mm
w
0.5 mm
h
0.45 mm
Operating temperature
Top min.
-40 °C
Top max.
85 °C

Ordering information

Product Type Description Ordering code Availability
SFH 4043B-P2Q2-21 Ie = 5.6 ... 11.2 mW/sr, (Ie=9 mW/sr typ.) (IF = 70 mA) Q65115A1589 Full production
SFH 4043B-P2Q2-2122 Ie = 5.6 ... 11.2 mW/sr, (Ie=9 mW/sr typ.) (IF = 70 mA) Q65115A1587 Full production
SFH 4043B-P2Q2-22 Ie = 5.6 ... 11.2 mW/sr, (Ie=9 mW/sr typ.) (IF = 70 mA) Q65115A1588 Full production
