Details
Parameters
Color of emission
Infrared (>800 nm)
Current
IF
70
mA
Peak wavelength
λ
860
nm
Brightness
ΦE
40
mW
IE
6
mW/sr
Beam angle
∢
140
°
Dimension
l
1.0
mm
w
0.325
mm
h
0.55
mm
Operating temperature
Top
min.
-40
°C
Top
max.
85
°C
Application fields
Ordering codes
| Product Type | Description | Order No. | Availability |
|---|---|---|---|
| SFH 4060 | Ie = 2.8 ... 7.1 mW/sr, (Ie=6 mW/sr typ.) (IF = 70 mA) | Q65112A7711 |
Downloads
For other documents visit our
Download center
Application note
Emitters and detectors for infrared (IR) touchscreens
Product related
Eye safety of IREDs used in lamp applications
Product related
High-speed switching of IR-LEDs — Background and data sheet definition
Product related
Customer complaint management — Details on return shipments for failure analysis request (FAR)
General information
Dry pack information
Handling recommendations
Fundamentals of LED handling
Handling recommendations
Manual lead-free soldering of LEDs
Soldering and processing
Measuring of the temperature profile during the reflow solder process
Soldering and processing
Processing of SMD LEDs
Soldering and processing
Recommended pick-and-place tools of LEDs
Soldering and processing
PCB technologies for LED applications
Thermal management
Determination of resistances for brightness compensation
Electrical design
Resources
CAD Data
CAD Data
Optical Simulation
Optical Simulation
Images

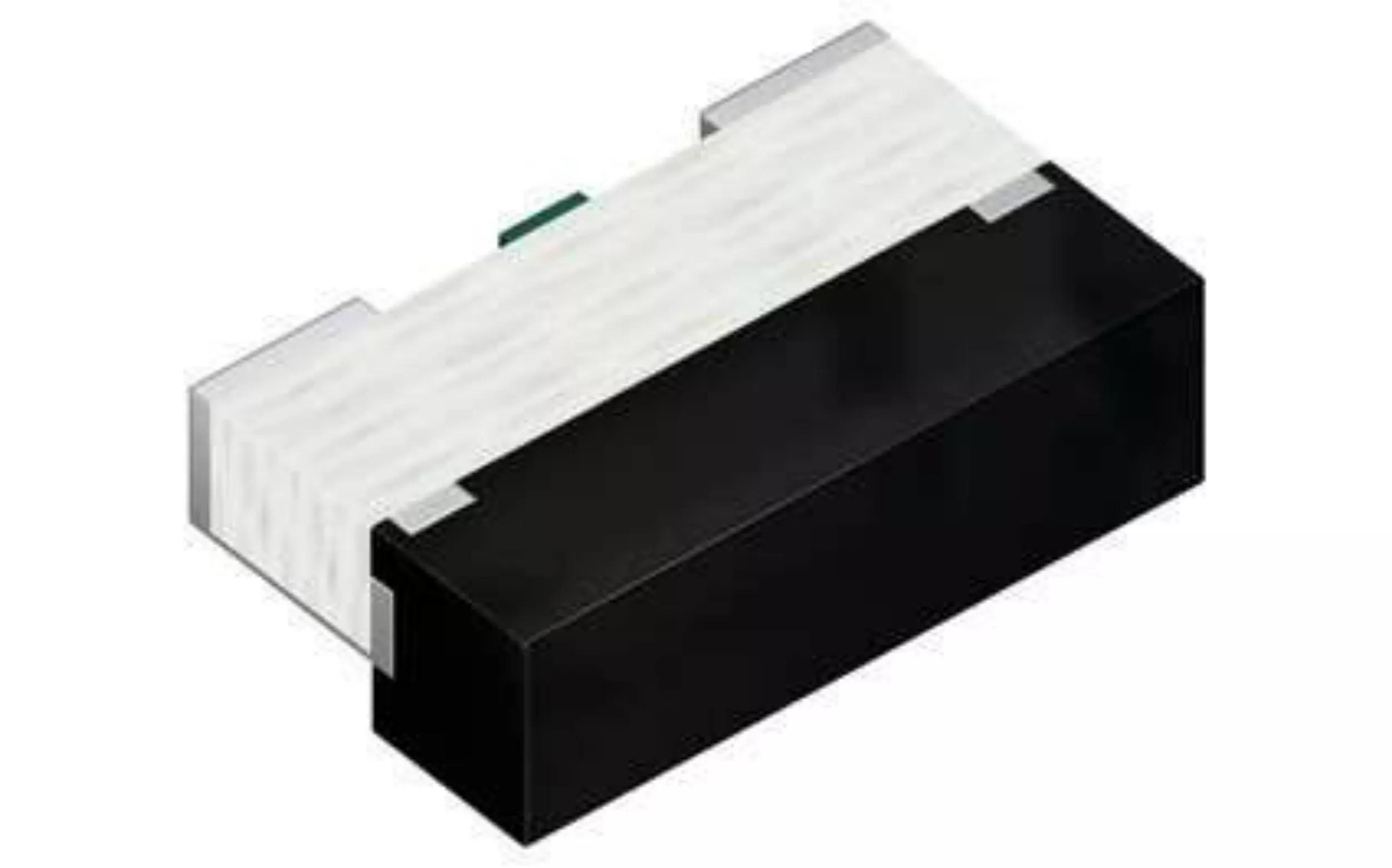

SFH4030_SFH4060_36x22.4mm_cmyk
