Details
Parameters
Color of emission
Infrared (>800 nm)
Current
IF
1000
mA
Peak wavelength
λ
860
nm
Brightness
ΦE
980
mW
IE
190
mW/sr
Beam angle
∢
150
°
Dimension
l
3.75
mm
w
3.75
mm
h
1.51
mm
Operating temperature
Top
min.
-40
°C
Top
max.
125
°C
Ordering codes
| Product Type | Description | Order No. | Availability |
|---|---|---|---|

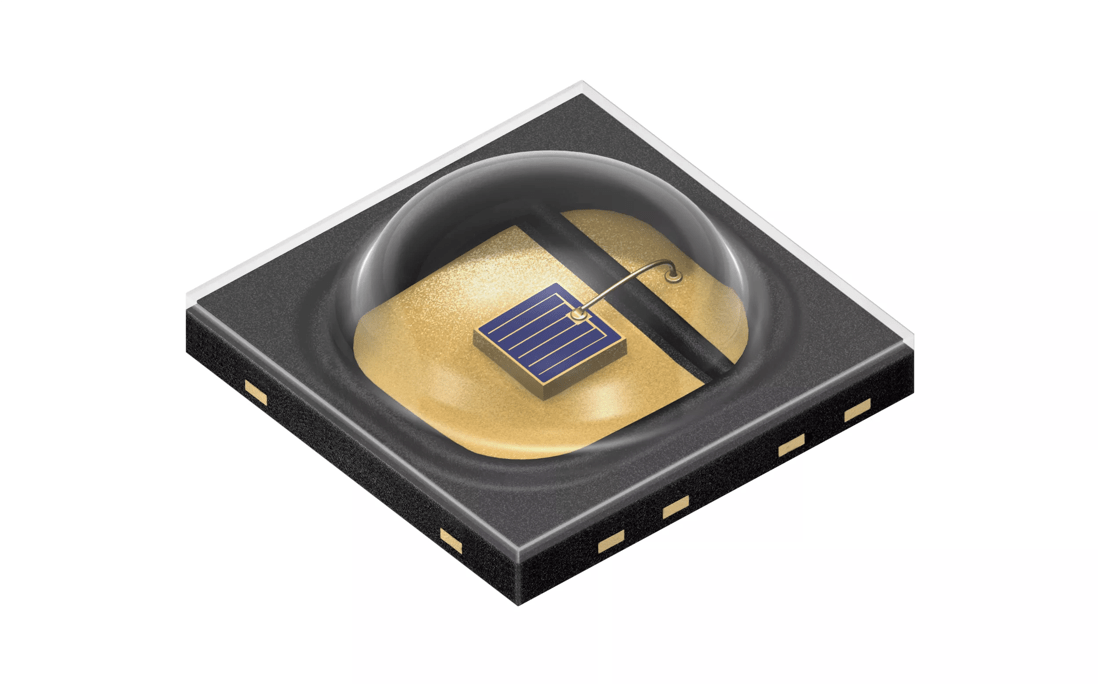

| SFH 4714B | Ie = 160 ... 224 mW/sr, (Ie=190 mW/sr typ.) (IF = 1000 mA) | Q65113A4979 |
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
By clicking this button you will be transferred to the dedicated site of our logistics partner, Mouser Electronics where your purchase can be completed. Your payment and order details provided for this purpose will be shared between Mouser Electronics and ams OSRAM. More details on the data processing in question can be found in the Privacy Policy of the Mouser shop.
|
| SFH 4714B R33 | Ie = 160 ... 224 mW/sr, (Ie=190 mW/sr typ.) (IF = 1000 mA) | Q65113A4978 |
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
By clicking this button you will be transferred to the dedicated site of our logistics partner, Mouser Electronics where your purchase can be completed. Your payment and order details provided for this purpose will be shared between Mouser Electronics and ams OSRAM. More details on the data processing in question can be found in the Privacy Policy of the Mouser shop.
