Details
Parameters
Color of emission
Infrared (>800 nm)
Current
IF
1000
mA
Peak wavelength
λ
859
nm
Brightness
ΦE
1910
mW
IE
1050
mW/sr
Beam angle
∢
80
°
Dimension
l
3.75
mm
w
3.75
mm
h
2.29
mm
Operating temperature
Top
min.
-40
°C
Top
max.
125
°C
Ordering information
| Product Type | Description | Ordering code | Availability |
|---|---|---|---|

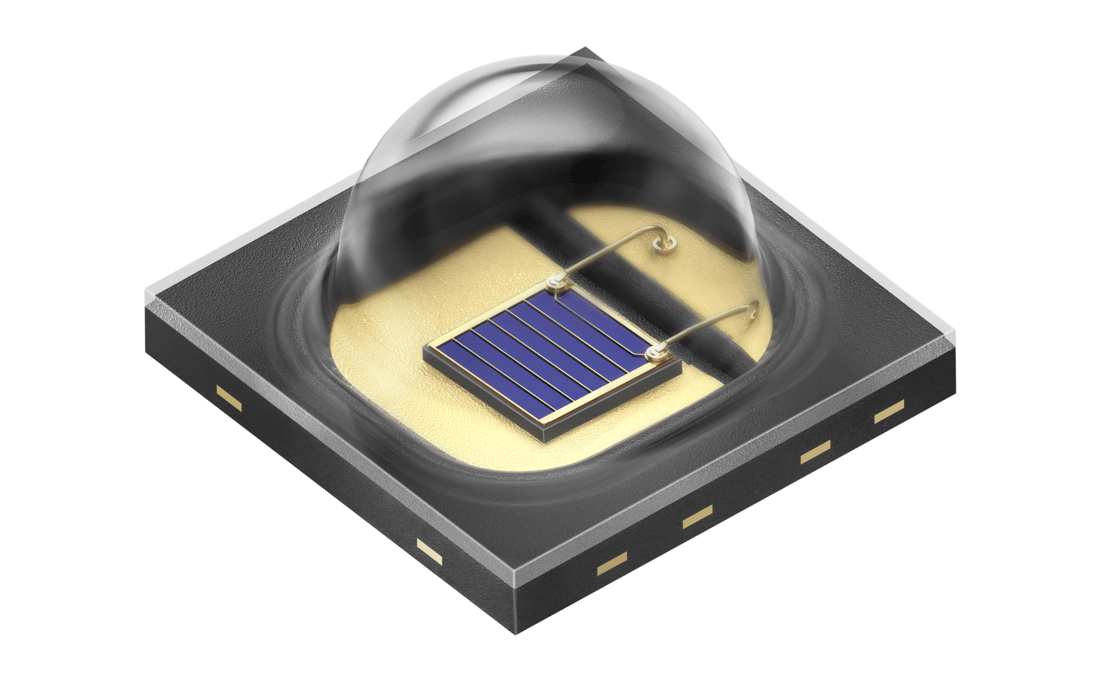

| SFH 4715CS R33 | Ie = 900 ... 1250 mW/sr, (Ie=1050 mW/sr typ.) (IF = 1000 mA) | Q65115A3390 | Pre-production |
