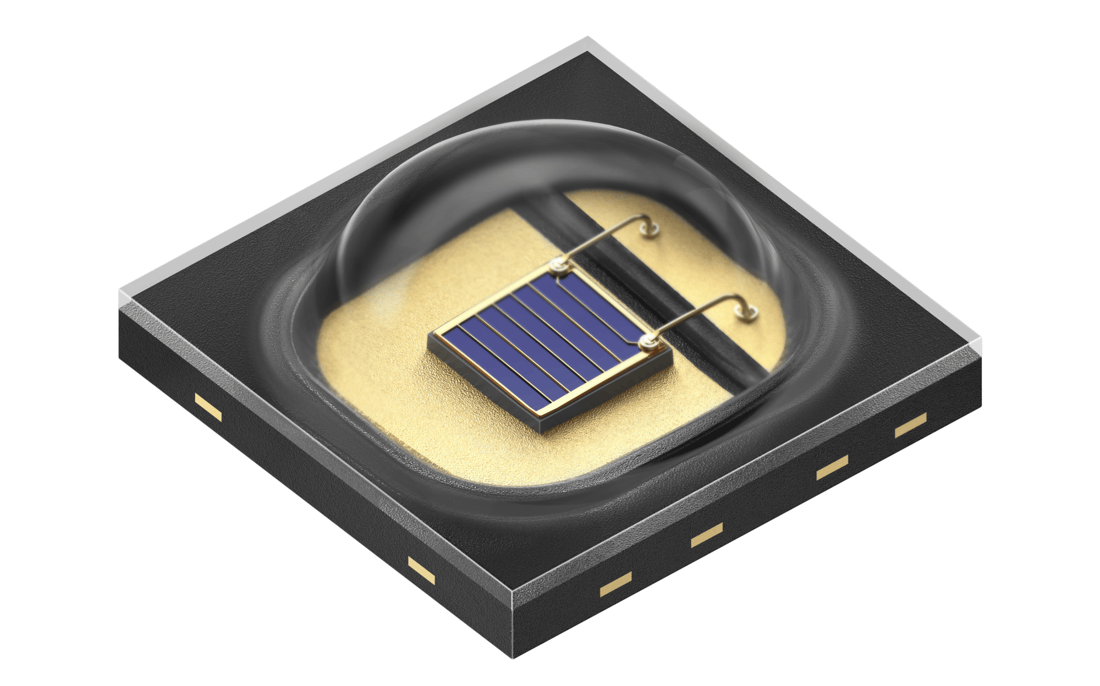

OSRAM OSLON™ Black, SFH 4716CS

New
×
New

Description

High Power 150° Infrared LEDs for various industrial/automotive applications such as object tracking, presence detection, machine vision etc. It offers outstanding quality, robustness and efficacy using IR:6 technology. AEC-Q102 qualification makes them ready for tough conditions.
Datasheet
SFH 4716CS
English
Download
Chinese
Download
Select & order
Contact us Support

Details

Parameters

Color of emission
Infrared (>800 nm)
Current
IF
1000 mA
Peak wavelength
λ
859 nm
Brightness
ΦE
1890 mW
IE
390 mW/sr
Beam angle
∢
150 °
Dimension
l
3.75 mm
w
3.75 mm
h
1.51 mm
Operating temperature
Top min.
-40 °C
Top max.
125 °C

Ordering information

Product Type Description Ordering code Availability
SFH 4716CS R33 Ie = 355 ... 450 mW/sr, (Ie=390 mW/sr typ.) (IF = 1000 mA) Q65115A3391 Pre-production

Downloads

Datasheets
SFH 4716CS · Datasheet · PDF · en_US

Application note
Eye safety of IREDs used in lamp applications · Product related · PDF · en_US
High-speed switching of IR-LEDs — Background and data sheet definition · Product related · PDF · en_US
Customer complaint management — Details on return shipments for failure analysis request (FAR) · General information · PDF · en_US
Fundamentals of LED handling · Handling recommendations · PDF · en_US
Handling of silicon resin LEDs · Handling recommendations · PDF · en_US
Dry pack information · Handling recommendations · PDF · en_US
Measuring of the temperature profile during the reflow solder process · Soldering and processing · PDF · en_US
Processing of SMD LEDs · Soldering and processing · PDF · en_US
Recommended pick-and-place tools of LEDs · Soldering and processing · PDF · en_US
PCB technologies for LED applications · Thermal management · PDF · en_US
LED diagnosis in automotive applications · Electrical design · PDF · en_US

Images
SFH 4716CS · Images · TIF
