Details
Parameters
Color of emission
Infrared (>800 nm)
Current
IF
1000
mA
Peak wavelength
λ
860
nm
Brightness
ΦE
665
mW
IE
730
mW/sr
Beam angle
∢
40
°
Dimension
l
3.75
mm
w
3.75
mm
h
2.29
mm
Operating temperature
Top
min.
-40
°C
Top
max.
125
°C
Application fields
Medical & health
Medical Lighting
Ordering codes
| Product Type | Description | Order No. | Availability |
|---|---|---|---|
| SFH 4718A | Ie = 450 ... 900 mW/sr, (Ie=730 mW/sr typ.) (IF = 1000 mA) | Q65112A1520 |
Downloads
For other documents visit our
Download center
Application note
Eye safety of IREDs used in lamp applications
Product related
High-speed switching of IR-LEDs — Background and data sheet definition
Product related
Preventing LED failures caused by corrosive materials
General information
Customer complaint management — Details on return shipments for failure analysis request (FAR)
General information
Handling of silicon resin LEDs
Handling recommendations
Dry pack information
Handling recommendations
Fundamentals of LED handling
Handling recommendations
Measuring of the temperature profile during the reflow solder process
Soldering and processing
Processing of SMD LEDs
Soldering and processing
Recommended pick-and-place tools of LEDs
Soldering and processing
PCB technologies for LED applications
Thermal management
LED diagnosis in automotive applications
Electrical design
Resources
CAD Data
CAD Data
Optical Simulation
Optical Simulation
Images

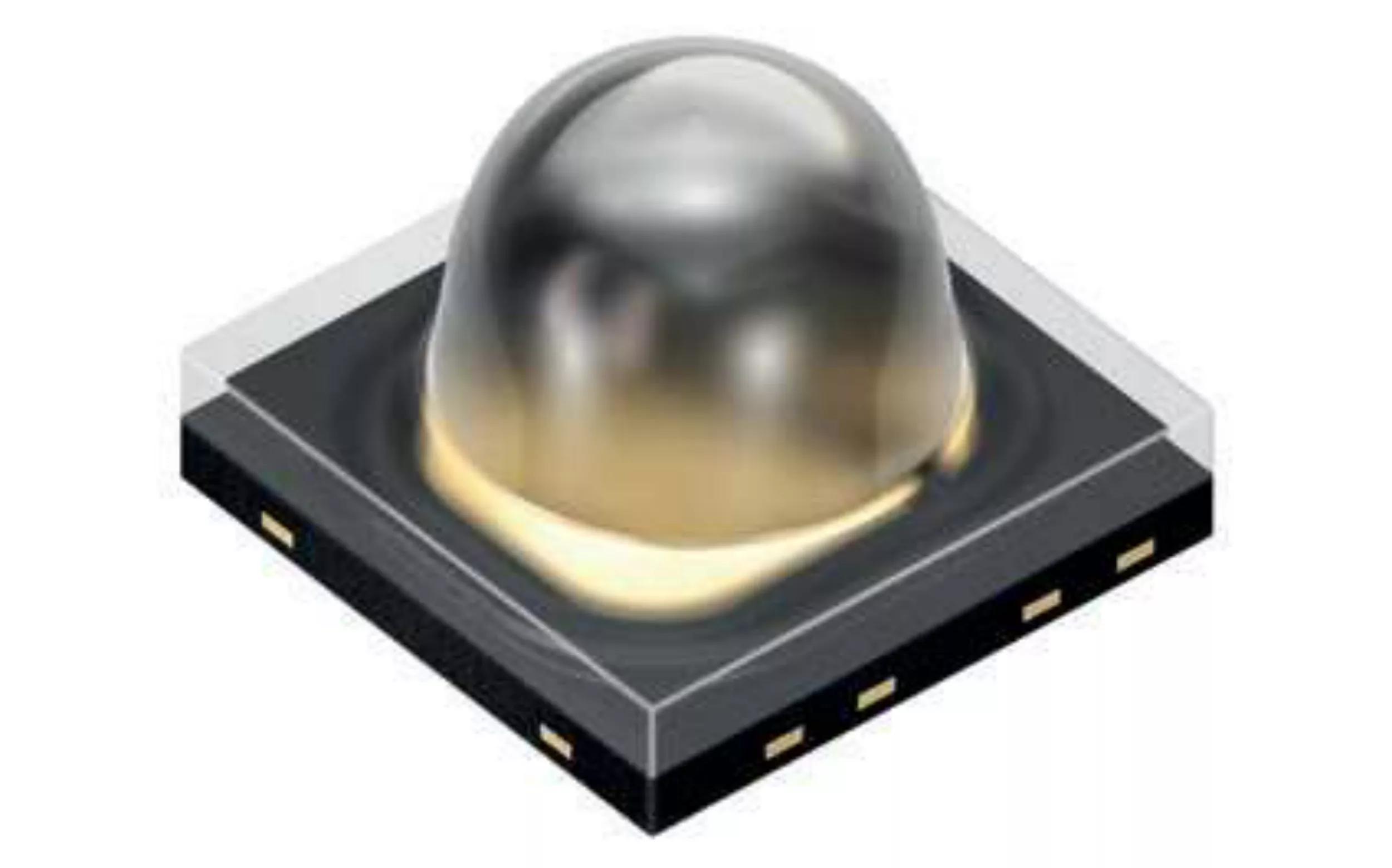

SFH4727AS_photo
