OSRAM OSLON™ Black, SFH 4725BS A01

Not for new design
×
Not for new design

Description

OSLON Black Series (940 nm) - 80°
Datasheet
SFH 4725BS A01
English
Download
Chinese
Download
Select & order
Contact us Support

Details

Parameters

Color of emission
Infrared (>800 nm)
Current
IF
1000 mA
Peak wavelength
λ
950 nm
Brightness
ΦE
1630 mW
IE
900 mW/sr
Beam angle
∢
80 °
Dimension
l
3.75 mm
w
3.75 mm
h
2.29 mm
Operating temperature
Top min.
-40 °C
Top max.
125 °C

Ordering information

Product Type Description Ordering code Availability
SFH 4725BS A01-EA2EB2 Ie = 800 ... 1120 mW/sr, (Ie=900 mW/sr typ.) (IF = 1000 mA) Q65113A8903 Not planned for new design

Downloads

Datasheets
SFH 4725BS A01 · Datasheet · PDF · en_US

Application note
Eye safety of IREDs used in lamp applications · Product related · PDF · en_US
High-speed switching of IR-LEDs — Background and data sheet definition · Product related · PDF · en_US
Customer complaint management — Details on return shipments for failure analysis request (FAR) · General information · PDF · en_US
Fundamentals of LED handling · Handling recommendations · PDF · en_US
Handling of silicon resin LEDs · Handling recommendations · PDF · en_US
Dry pack information · Handling recommendations · PDF · en_US
Measuring of the temperature profile during the reflow solder process · Soldering and processing · PDF · en_US
Processing of SMD LEDs · Soldering and processing · PDF · en_US
Recommended pick-and-place tools of LEDs · Soldering and processing · PDF · en_US
PCB technologies for LED applications · Thermal management · PDF · en_US
LED diagnosis in automotive applications · Electrical design · PDF · en_US

Resources
CAD Data · CAD Data · FOLDER
Optical Simulation · Optical Simulation · FOLDER

Images

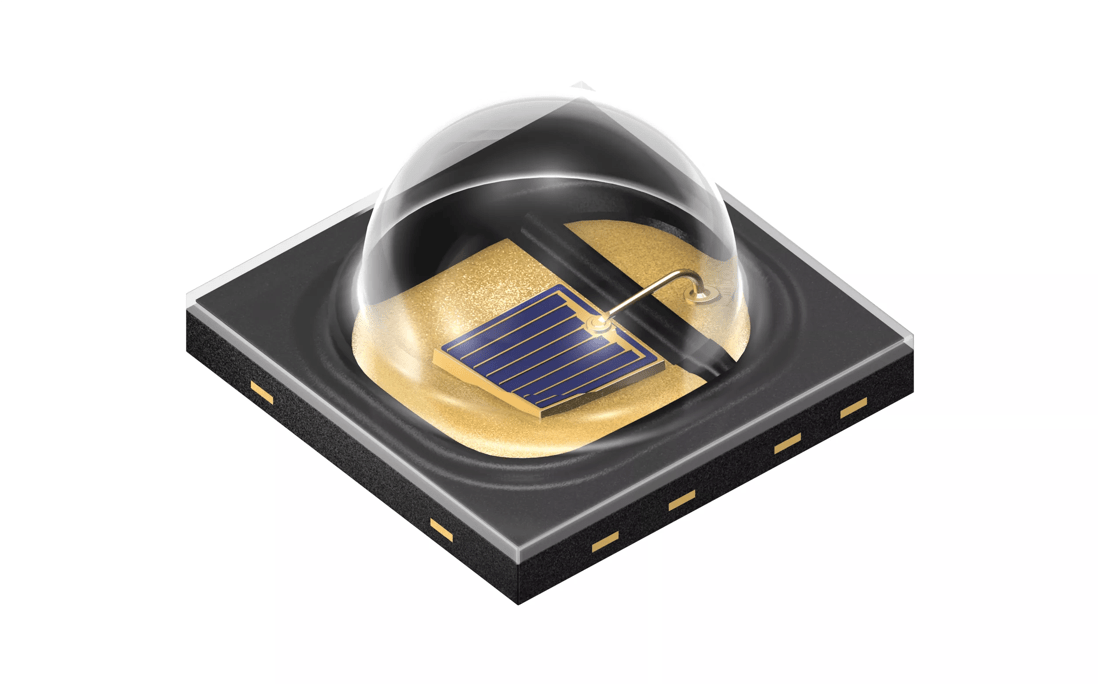

SFH 4725BS-A01 42x26mm cmyk · Images · TIF
