OSRAM OSLON™ P1616 Lens, SFH 41847S

Discontinued
×
Discontinued

Description

High Power Infrared Emitter (940 nm)
Datasheet
SFH 41847S
English
Download
Chinese
Download
Select & order
Contact us Support

Details

Parameters

Color of emission
Infrared (>800 nm)
Current
IF
1000 mA
Peak wavelength
λ
950 nm
Brightness
IE
310 mW/sr
Beam angle
∢
90 °
∢
140 °
Dimension
l
1.6 mm
w
1.6 mm
h
1.38 mm
Operating temperature
Top min.
-40 °C
Top max.
105 °C

Ordering information

Product Type Description Ordering code Availability
SFH 41847S Ie = 250 ... 400 mW/sr, (Ie=310 mW/sr typ.) (IF = 1000 mA) Q65113A3655 Discontinued

Downloads

Datasheets
SFH 41847S · Datasheet · PDF · en_US

Application note
Eye safety of IREDs used in lamp applications · Product related · PDF · en_US
High-power emitters for illumination applications · Product related · PDF · en_US
High-speed switching of IR-LEDs — Background and data sheet definition · Product related · PDF · en_US
Customer complaint management — Details on return shipments for failure analysis request (FAR) · General information · PDF · en_US
Fundamentals of LED handling · Handling recommendations · PDF · en_US
Handling of silicon resin LEDs · Handling recommendations · PDF · en_US
Dry pack information · Handling recommendations · PDF · en_US
Measuring of the temperature profile during the reflow solder process · Soldering and processing · PDF · en_US
Processing of SMD LEDs · Soldering and processing · PDF · en_US
Recommended pick-and-place tools of LEDs · Soldering and processing · PDF · en_US
PCB technologies for LED applications · Thermal management · PDF · en_US

Technical documents
aO IRED Brochure 112023 · Factsheet · PDF · en_US

Resources
CAD Data · CAD Data · FOLDER
Optical Simulation · Optical Simulation · FOLDER

Images

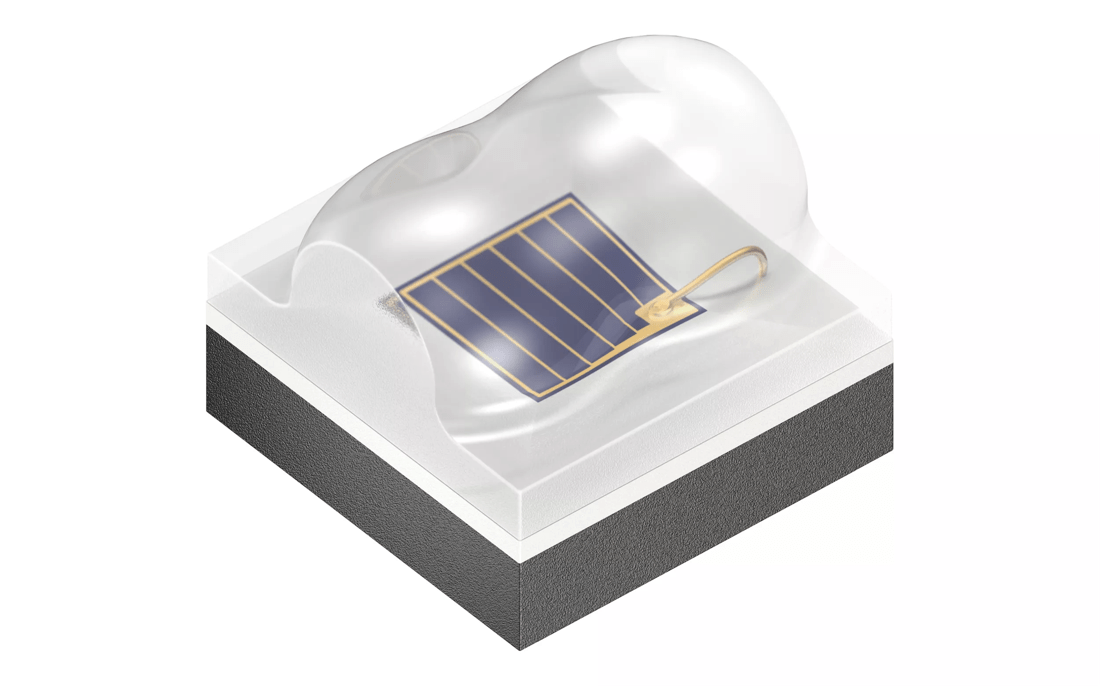

SFH_41747__OSLON P1616 with rectangular lens · Images · TIF
