Details
Parameters
Color of emission
Infrared (>800 nm)
Current
IF
1000
mA
Peak wavelength
Ī»
950
nm
Brightness
Ī¦E
1150
mW
IE
680
mW/sr
Beam angle
ā¢
70
Ā°
Dimension
l
1.6
mm
w
1.6
mm
h
1.72
mm
Operating temperature
Top
min.
-40
Ā°C
Top
max.
125
Ā°C
Application fields
Ordering codes
Product Type | Description | Order No. | Availability |
---|---|---|---|
SFH 4181S A01 | Ie = 560 ... 900 mW/sr, (Ie=680 mW/sr typ.) (IF = 1000 mA) | Q65113A3365 |
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
|
Downloads
For software click here/for further documents visit our
download center
Application note
Eye safety of IREDs used in lamp applications
Product related
High-speed switching of IR-LEDs ā Background and data sheet definition
Product related
Customer complaint management ā Details on return shipments for failure analysis request (FAR)
General information
Handling of silicon resin LEDs
Handling recommendations
Dry pack information
Handling recommendations
Fundamentals of LED handling
Handling recommendations
Recommended pick-and-place tools of LEDs
Soldering and processing
PCB technologies for LED applications
Thermal management
Resources
CAD Data
CAD Data
Optical Simulation
Optical Simulation
Images

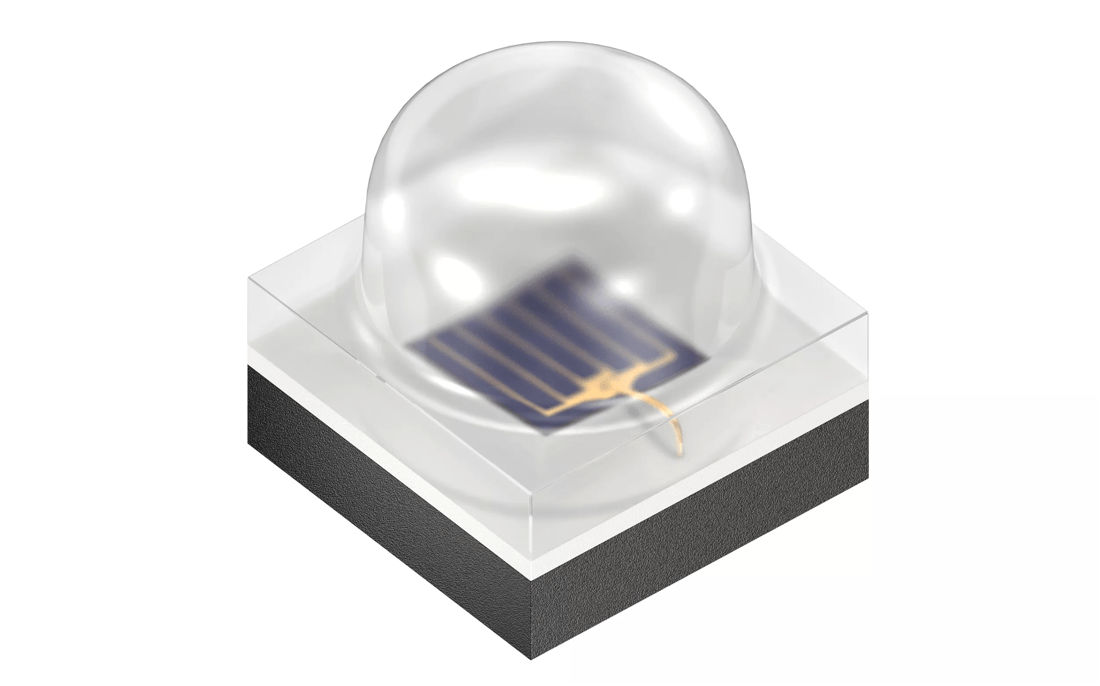

SFH_4171S__SFH_4181S__OSLON P1616 with 70 lens_36x22.4mm_cmyk
