Details
Parameters
Color of emission
Infrared (>800 nm)
Current
IF
1000
mA
Peak wavelength
Ī»
860
nm
Brightness
Ī¦E
950
mW
IE
320
mW/sr
Beam angle
ā¢
120
Ā°
Dimension
l
11.0
mm
w
6.0
mm
h
1.8
mm
Operating temperature
Top
min.
-40
Ā°C
Top
max.
125
Ā°C
Application fields
Medical & health
Medical Lighting
Ordering codes
Product Type | Description | Order No. | Availability |
---|---|---|---|
SFH 4235-Z | Ī¦e = 630 ... 1250 mW, (Ī¦e=950 mW typ.) (IF = 1000 mA) | Q65110A8900 |
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
|
Downloads
For software click here/for further documents visit our
download center
Datasheets
SFH 4235
Datasheet
Application note
High-power emitters for illumination applications
Product related
Eye safety of IREDs used in lamp applications
Product related
High-speed switching of IR-LEDs ā Background and data sheet definition
Product related
Customer complaint management ā Details on return shipments for failure analysis request (FAR)
General information
Dry pack information
Handling recommendations
Fundamentals of LED handling
Handling recommendations
Recommended pick-and-place tools of LEDs
Soldering and processing
Resources
CAD Data
CAD Data
Optical Simulation
Optical Simulation
Images

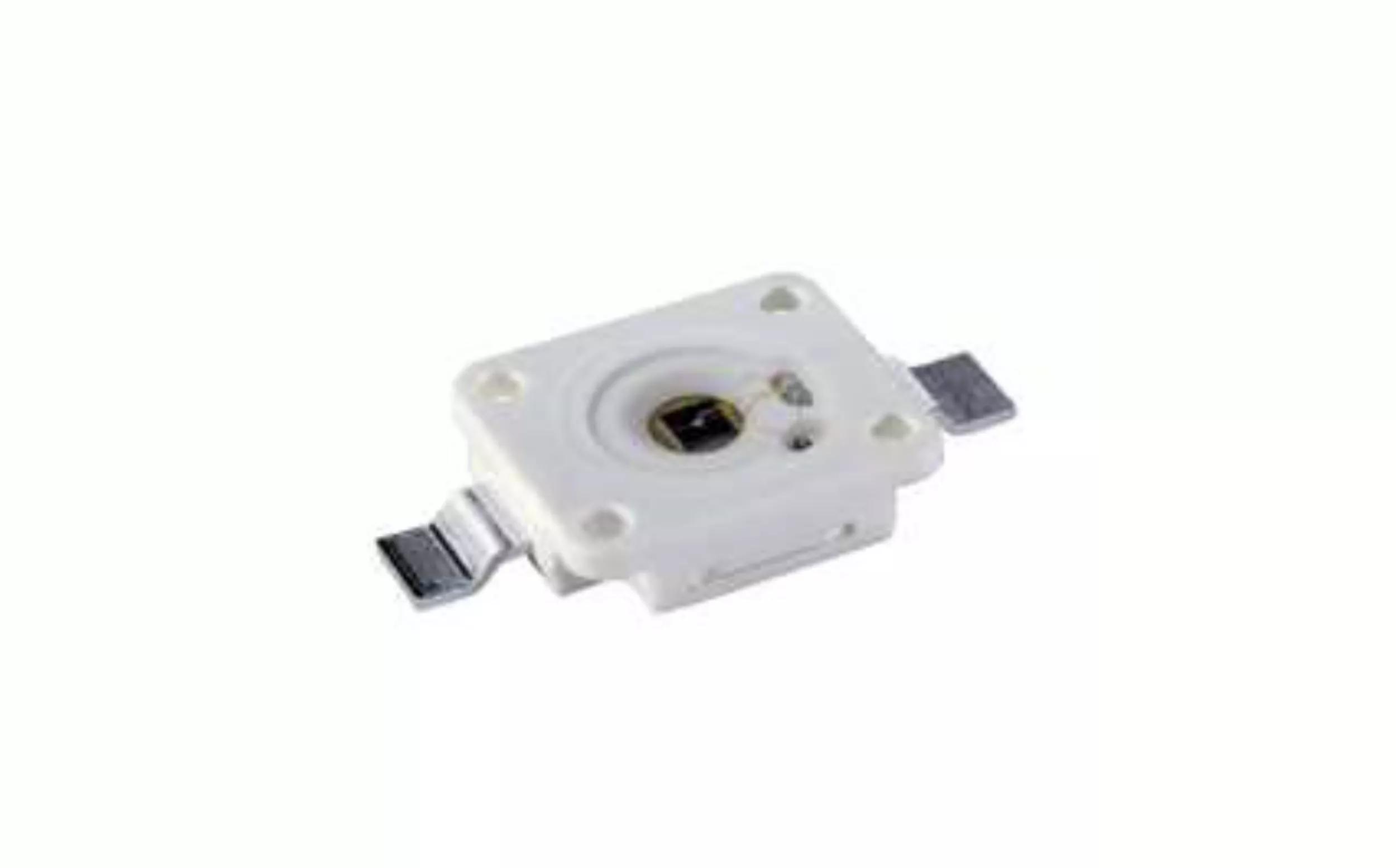

SFH4232
