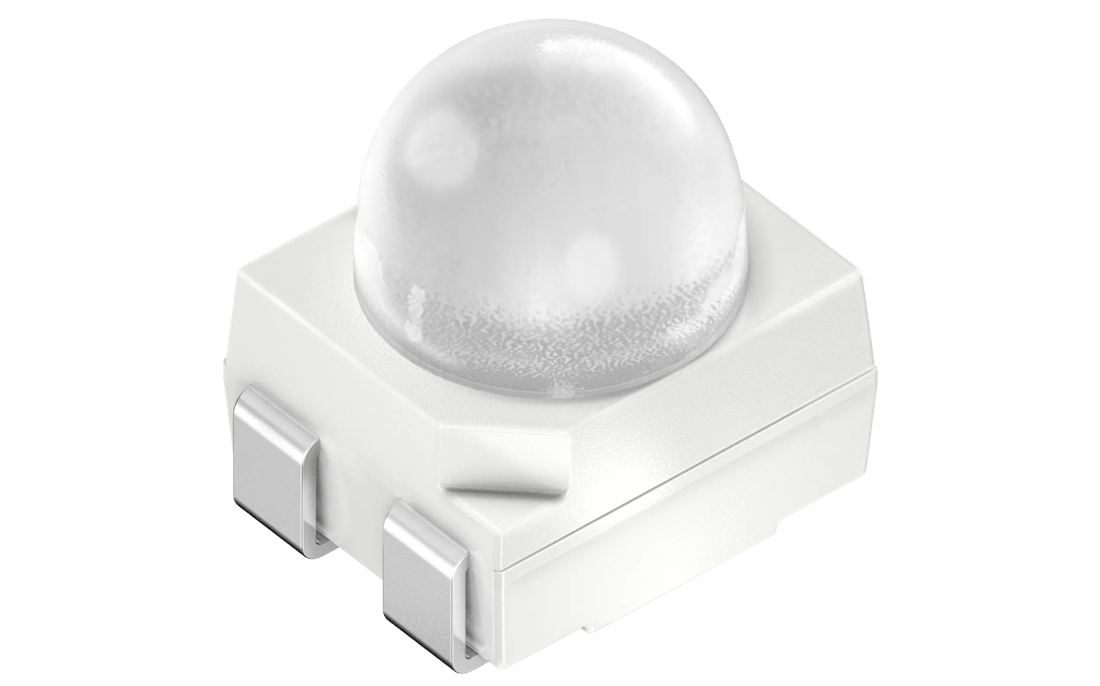

OSRAM Power TOPLED® Lens, SFH 4248

Description

High Power Infrared Emitter (940 nm)

Details

Parameters

Color of emission
Infrared (>800 nm)
Current
IF
100 mA
Peak wavelength
λ
950 nm
Brightness
ΦE
65 mW
IE
100 mW/sr
Beam angle
30 °
Dimension
l
3.5 mm
w
2.8 mm
h
3.8 mm
Operating temperature
Top min.
-40 °C
Top max.
100 °C

Ordering codes

Product Type Description Order No. Availability
SFH 4248-VAW Ie = 71 ... 180 mW/sr, (Ie=100 mW/sr typ.) (IF = 100 mA) Q65111A4123
SFH 4248-VBW Ie = 71 ... 280 mW/sr, (Ie=100 mW/sr typ.) (IF = 100 mA) Q65113A4888
