Details
Parameters
Color of emission
Infrared (>800 nm)
Current
IF
100
mA
Peak wavelength
Ī»
860
nm
Brightness
Ī¦E
95
mW
IE
160
mW/sr
Beam angle
ā¢
30
Ā°
Dimension
l
3.5
mm
w
2.8
mm
h
3.8
mm
Operating temperature
Top
min.
-40
Ā°C
Top
max.
100
Ā°C
Ordering codes
| Product Type | Description | Order No. | Availability |
|---|---|---|---|

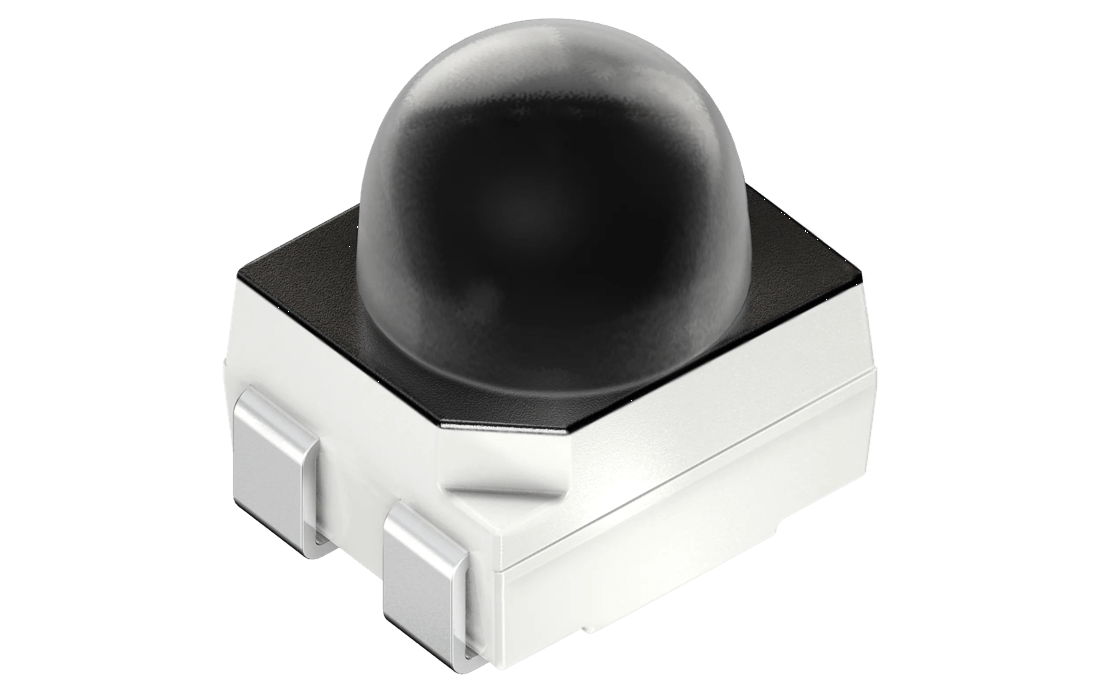

| SFH 4278S | Ie = 45 ... 280 mW/sr, (Ie=160 mW/sr typ.) (IF = 100 mA) | Q65112A0075 |
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
|
