Details
Parameters
Color of emission
Infrared (>800 nm)
Current
IF
1000
mA
Peak wavelength
λ
860
nm
Brightness
ΦE
600
mW
IE
200
mW/sr
Beam angle
∢
120
°
Dimension
l
2.75
mm
w
2.0
mm
h
0.6
mm
Operating temperature
Top
min.
-40
°C
Top
max.
100
°C
Ordering codes
| Product Type | Description | Order No. | Availability |
|---|---|---|---|

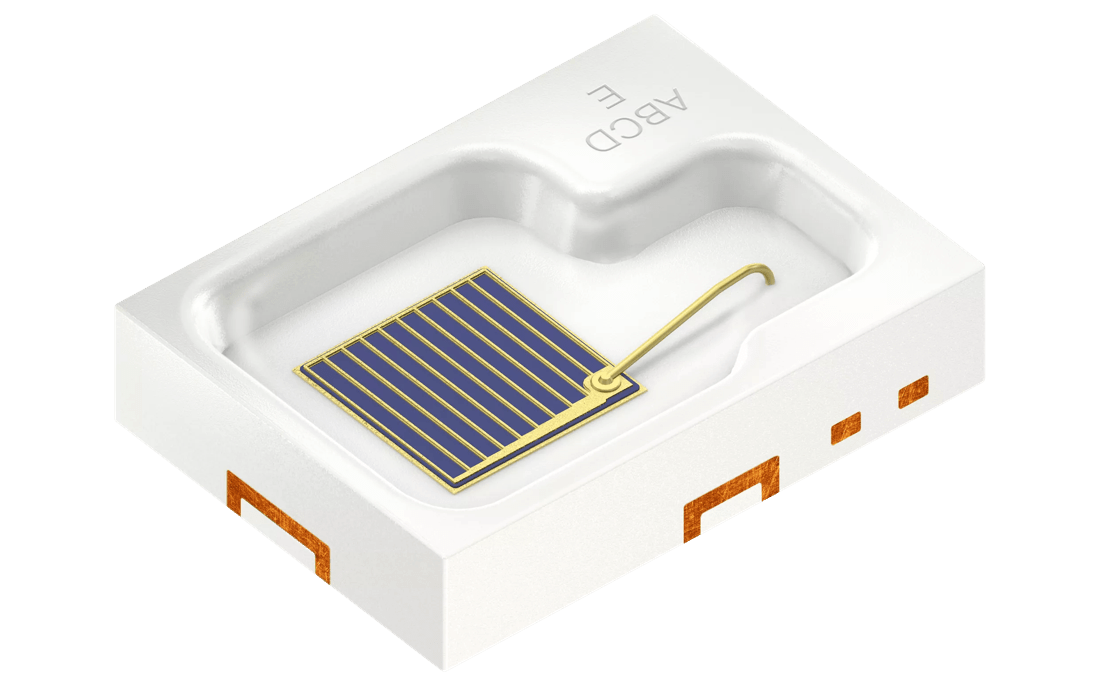

| SFH 4770 | Φe = 450 ... 900 mW, (Φe=600 mW typ.) (IF = 1000 mA) | Q65112A1540 |
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
|
