OSRAM DURIS™ E 5050, GW J9LHS1.4M

Discontinued
×
Discontinued

Description

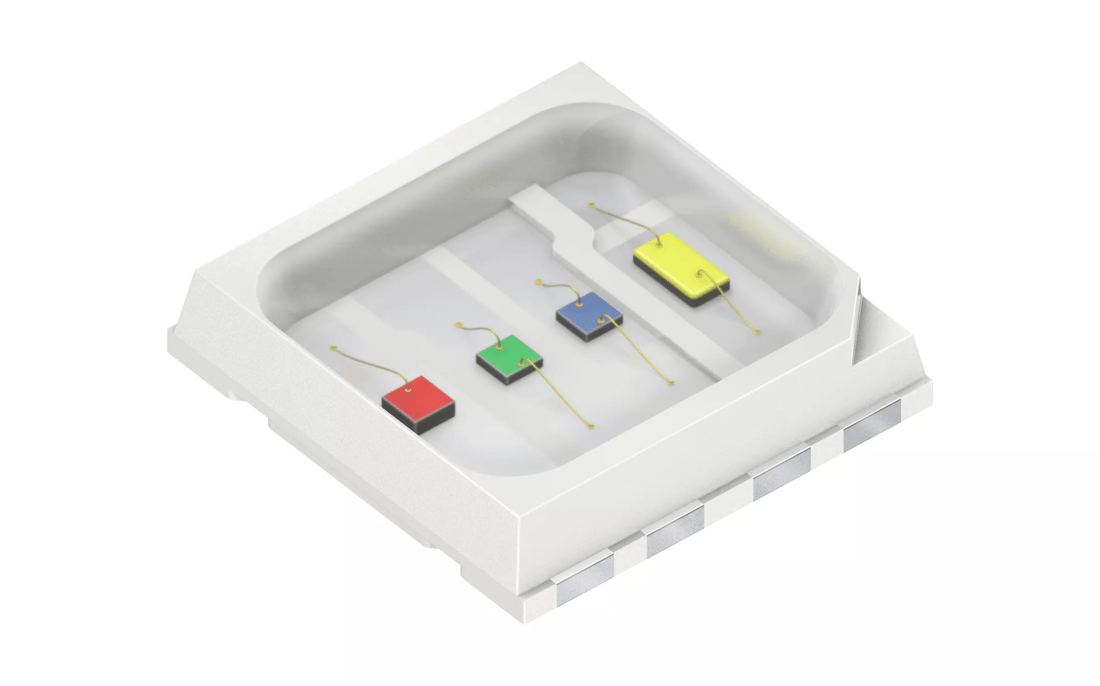

This 5050 RGBW device is the first 4-in-1 color package for general lighting applications from ams OSRAM. It features industry-compatible performance and form factor and promises outstanding reliability for customers. Each chip is individually controlled to enable high customization color options along with tight wavelength and color binning for excellent homogeneity.
Datasheet
GW J9LHS1.4M
English
Download
Select & order
Contact us Support

Details

Parameters

Color of emission
Red (612-630 nm)
Green (565-575 nm)
Blue (450-480 nm)
White
Electrical power
0.21 W
0.3 W
0.31 W
0.3 W
Mid
Mid
Mid
Mid
Brightness
ΦV
38.9 lm
IV
13 cd
ΦE
121 mW
IE
40.4 mW/sr
Beam angle
∢
120 °
Operating temperature
Top min.
-40 °C
Top max.
85 °C
Dimension
l
50.0 mm
w
50.0 mm
h
11.0 mm

Ordering information

Product Type Description Ordering code Availability
GW J9LHS1.4M-C1C7-2+58+MQ+30A-1 ● Iv = 4500 ... 10500 mcd (IF = 100 mA)
● Iv = 8500 ... 17500 mcd (IF = 100 mA)
● Iv = 2500 ... 6500 mcd (IF = 100 mA)
● Iv = 8500 ... 17500 mcd (IF = 100 mA), 3000 K 		Q65113A1188 Discontinued
GW J9LHS1.4M-C1C7-2+58+MQ+40A-1 ● Iv = 4500 ... 10500 mcd (IF = 100 mA)
● Iv = 8500 ... 17500 mcd (IF = 100 mA)
● Iv = 2500 ... 6500 mcd (IF = 100 mA)
● Iv = 8500 ... 17500 mcd (IF = 100 mA), 4000 K 		Q65113A1187 Discontinued
GW J9LHS1.4M-C1C7-2+58+MQ+50A-1 ● Iv = 4500 ... 10500 mcd (IF = 100 mA)
● Iv = 8500 ... 17500 mcd (IF = 100 mA)
● Iv = 2500 ... 6500 mcd (IF = 100 mA)
● Iv = 8500 ... 17500 mcd (IF = 100 mA), 5000 K 		Q65113A1186 Discontinued
GW J9LHS1.4M-C1C7-2+58+MQ+57A-1 ● Iv = 4500 ... 10500 mcd (IF = 100 mA)
● Iv = 8500 ... 17500 mcd (IF = 100 mA)
● Iv = 2500 ... 6500 mcd (IF = 100 mA)
● Iv = 8500 ... 17500 mcd (IF = 100 mA), 5700 K 		Q65113A1185 Discontinued

Downloads

Datasheets
GW J9LHS1.4M · Datasheet · PDF · en_US

Application note
Brilliant Mix and Mix-to-Match — Professional white for general lighting applications · Product related · PDF · en_US
Light quality — White light parameters · Product related · PDF · en_US
Light quality — Color metrics · Product related · PDF · en_US
Customer complaint management — Details on return shipments for failure analysis request (FAR) · General information · PDF · en_US
Details on photobiological safety of LED light sources · General information · PDF · en_US
Importing rayfiles and ray-measurement files of LEDs · General information · PDF · en_US
Chemical compatibility of LEDs · General information · PDF · en_US
Measurement, calibration and measurement uncertainty of LEDs · General information · PDF · en_US
ESD protection while handling LEDs · Handling recommendations · PDF · en_US
Handling of silicon resin LEDs · Handling recommendations · PDF · en_US
Dry pack information · Handling recommendations · PDF · en_US
Details on lead-free reflow soldering of LEDs · Soldering and processing · PDF · en_US
Manual lead-free soldering of LEDs · Soldering and processing · PDF · en_US
Measuring of the temperature profile during the reflow solder process · Soldering and processing · PDF · en_US
Processing of SMD LEDs · Soldering and processing · PDF · en_US
Recommended pick-and-place tools of LEDs · Soldering and processing · PDF · en_US
PCB technologies for LED applications · Thermal management · PDF · en_US
Comparison of simple LED circuits for low power LEDs · Electrical design · PDF · en_US
Determination of resistances for brightness compensation · Electrical design · PDF · en_US
Dimming InGaN LEDs · Electrical design · PDF · en_US
LED driving technology for long term flexibility · Electrical design · PDF · en_US
The basic principles of Electrical Overstress (EOS) · Electrical design · PDF · en_US
