OSRAM Multi Chip LED, SFH 7013

Discontinued
×
Discontinued

Description

Red (655 nm), Green (530 nm) and Infrared Emitter (940 nm)
Datasheet
SFH 7013
English
Download
Chinese
Download
Select & order
Contact us Support

Details

Parameters

Color of emission
Hyper Red (635-666 nm)
True Green (513-545 nm)
Infrared (>800 nm)
Electrical power
0.06 W
0.042 W
0.026 W
Low
Low
Low
Brightness
ΦE
12 mW
IE
4 mW/sr
Operating temperature
Top min.
-40 °C
Top max.
85 °C
Dimension
l
2.5 mm
w
1.6 mm
h
0.55 mm

Ordering information

Product Type Description Ordering code Availability
SFH 7013 ● Ie = ≥ 1.12 mW/sr (IF = 20 mA)
● Ie = ≥ 2.20 mW/sr (IF = 20 mA)
● Ie = ≥ 1.65 mW/sr (IF = 20 mA) 		Q65112A1316 Discontinued

Downloads

Datasheets
SFH 7013 · Datasheet · PDF · en_US

Application note
Eye safety of IREDs used in lamp applications · Product related · PDF · en_US
High-speed switching of IR-LEDs — Background and data sheet definition · Product related · PDF · en_US
Customer complaint management — Details on return shipments for failure analysis request (FAR) · General information · PDF · en_US
Importing rayfiles and ray-measurement files of LEDs · General information · PDF · en_US
Fundamentals of LED handling · Handling recommendations · PDF · en_US
Handling of silicon resin LEDs · Handling recommendations · PDF · en_US
Dry pack information · Handling recommendations · PDF · en_US
Manual lead-free soldering of LEDs · Soldering and processing · PDF · en_US
Measuring of the temperature profile during the reflow solder process · Soldering and processing · PDF · en_US
Processing of SMD LEDs · Soldering and processing · PDF · en_US
Recommended pick-and-place tools of LEDs · Soldering and processing · PDF · en_US
PCB technologies for LED applications · Thermal management · PDF · en_US
Determination of resistances for brightness compensation · Electrical design · PDF · en_US

Resources
CAD Data · CAD Data · FOLDER
Optical Simulation · Optical Simulation · FOLDER

Images

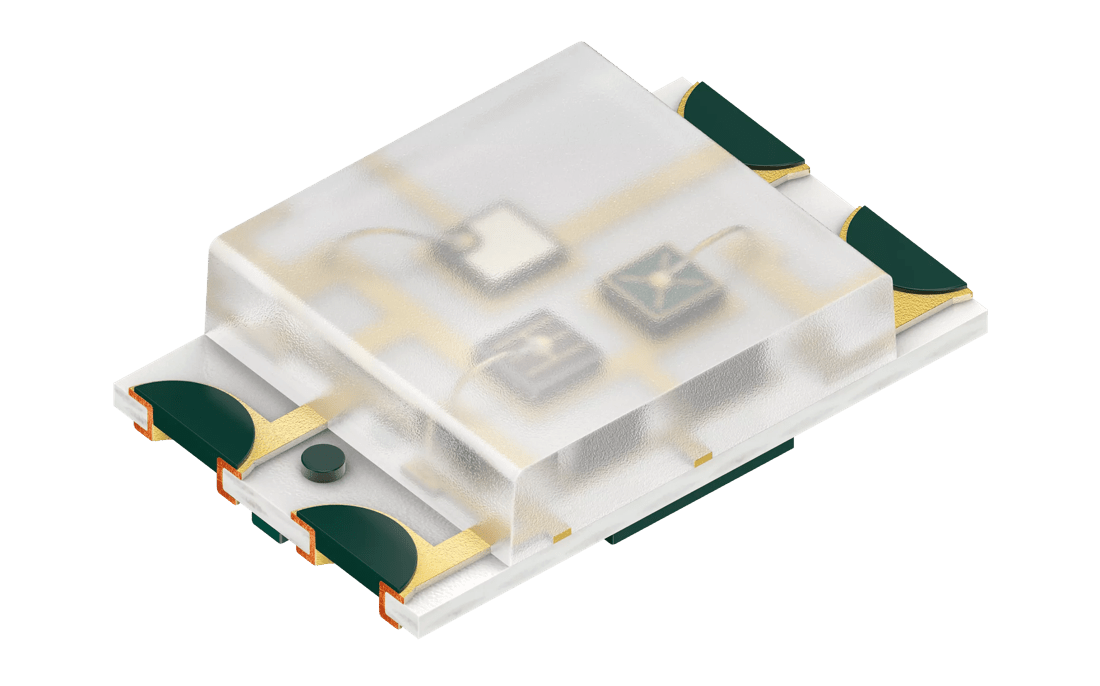

CHIPLED SFH 7012 · Images · TIF
