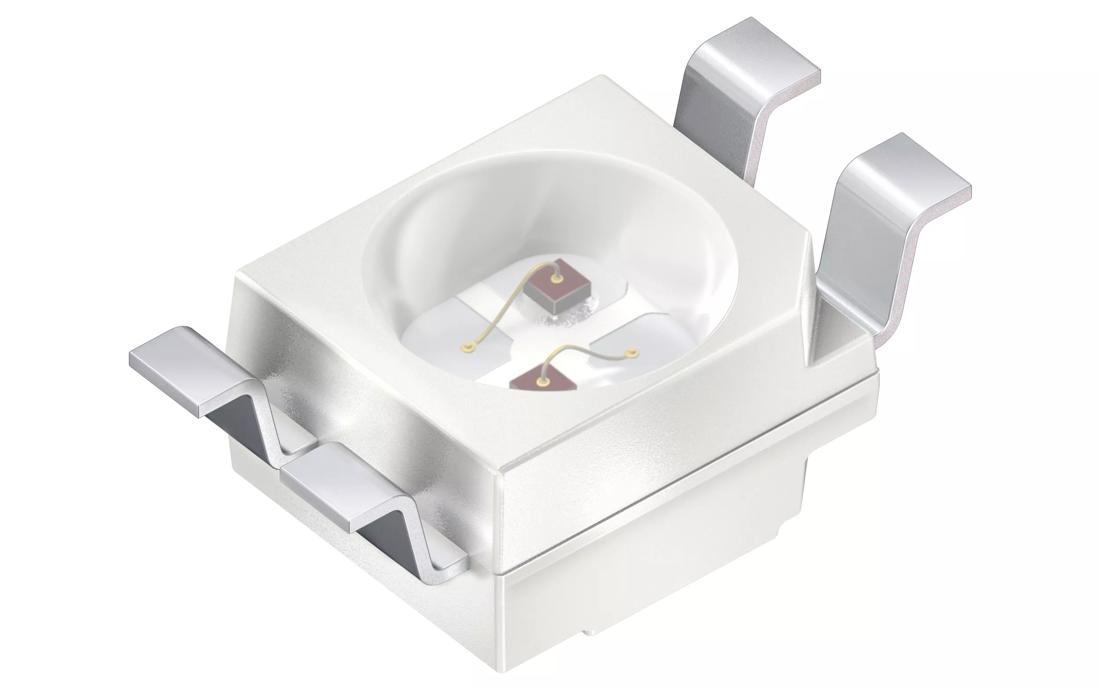

OSRAM Multi TOPLED™ Reverse Gullwing, LOG T77K

Discontinued
×
Discontinued

Description

Two color LEDs with reverse gullwing for reverse mount
Datasheet
LOG T77K
English
Download
Chinese
Download
Select & order
Contact us Support

Details

Parameters

Color of emission
Orange (600-609 nm)
Green (565-575 nm)
Electrical power
0.0036 W
0.0036 W
Low
Low
Brightness
ΦV
0.0137 lm
IV
0.00445 cd
ΦE
0.0214 mW
IE
0.00696 mW/sr
Beam angle
∢
120 °
Dimension
l
2.8 mm
w
3.2 mm
h
1.9 mm

Ordering information

Product Type Description Ordering code Availability
LOG T77K-JL-1-0+GJ-1 ● Iv = 4.5 ... 18.0 mcd (IF = 2 mA)
● Iv = 1.8 ... 7.1 mcd (IF = 2 mA) 		Q65110A3338 Discontinued
