Description

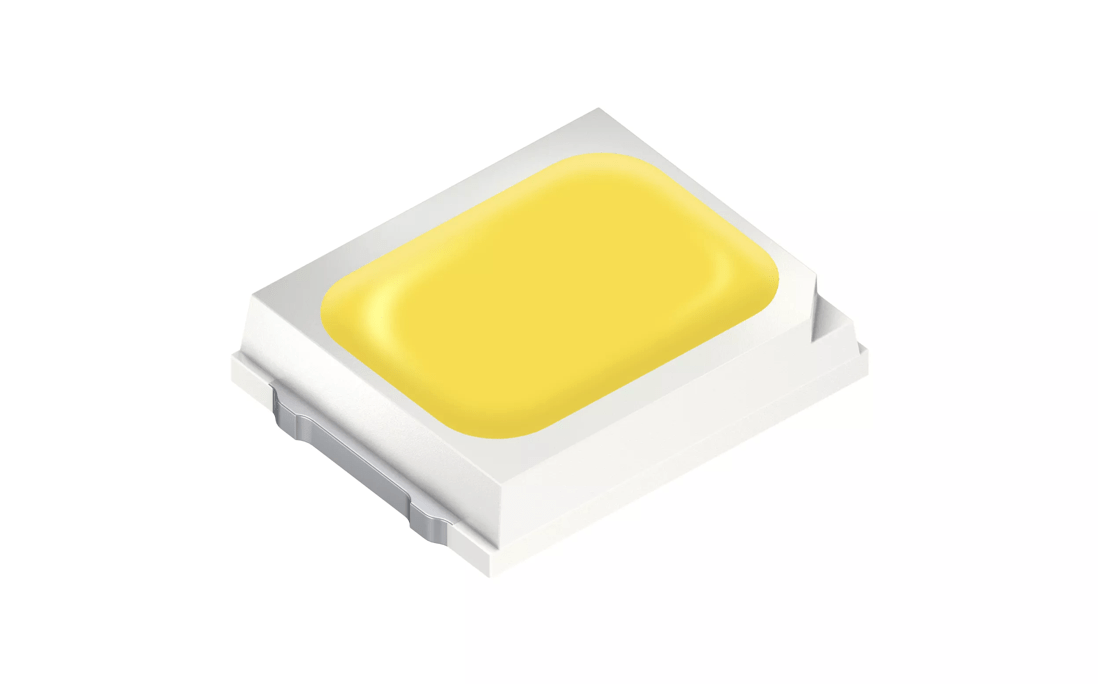

The pre-molded PPA 2835 LED version with standard 2835 footprint provides competitive value in application and system level. The DURIS® E 2835 0.2W SOFTLINEAR combines good mechanical flexibility and a wide beam angle into a compact format (2.8 mm x 3.5 mm). This product fits well to flexible strips general lighting application. DURIS® E 2835 never fails to impress with its performance on system level.
Datasheet
GW JTLMS3.CM
English
Download
Chinese
Download
Select & order
Contact us Support

Details

Parameters

Color of emission
White
CRI
90
Electrical power
0.17 W
Mid
Brightness
ΦV
24 lm
IV
8.15 cd
ΦE
81.9 mW
IE
27.8 mW/sr
ΦP
0.118 µmol/s
Beam angle
∢
120 °
Operating temperature
Top min.
-40 °C
Top max.
100 °C
Dimension
l
3.5 mm
w
2.8 mm
h
0.7 mm

Application fields

Lighting Indoor lighting

Ordering codes

Product Type Description Order No. Availability
GW JTLMS3.CM-G7G9-XX38-1 ΦV = 21.0 ... 25.5 lm, Mountingmethode:SDCM 3, 2700 K (IF = 60 mA) Q65113A8864
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
Request product
GW JTLMS3.CM-G7GV-XX58-1 ΦV = 21.0 ... 27.0 lm, Mountingmethode:SDCM 5, 2700 K (IF = 60 mA) Q65113A6712
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
Buy now
By clicking this button you will be transferred to the dedicated site of our logistics partner, Mouser Electronics where your purchase can be completed. Your payment and order details provided for this purpose will be shared between Mouser Electronics and ams OSRAM. More details on the data processing in question can be found in the Privacy Policy of the Mouser shop.
Buy From Distributors:
Mouser
Buy now
GW JTLMS3.CM-G8GW-XX55-1 ΦV = 22.5 ... 28.5 lm, Mountingmethode:SDCM 5, 4000 K (IF = 60 mA) Q65113A6700
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
Buy now
By clicking this button you will be transferred to the dedicated site of our logistics partner, Mouser Electronics where your purchase can be completed. Your payment and order details provided for this purpose will be shared between Mouser Electronics and ams OSRAM. More details on the data processing in question can be found in the Privacy Policy of the Mouser shop.
Buy From Distributors:
Mouser
Buy now
GW JTLMS3.CM-G8GV-XX36-1 ΦV = 22.5 ... 27.0 lm, Mountingmethode:SDCM 3, 3500 K (IF = 60 mA) Q65113A8847
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
Request product
GW JTLMS3.CM-G8GW-XX52-1 ΦV = 22.5 ... 28.5 lm, Mountingmethode:SDCM 5, 5700 K (IF = 60 mA) Q65113A6698
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
Buy now
By clicking this button you will be transferred to the dedicated site of our logistics partner, Mouser Electronics where your purchase can be completed. Your payment and order details provided for this purpose will be shared between Mouser Electronics and ams OSRAM. More details on the data processing in question can be found in the Privacy Policy of the Mouser shop.
Buy From Distributors:
Mouser
Buy now
GW JTLMS3.CM-G8GV-XX33-1 ΦV = 22.5 ... 27.0 lm, Mountingmethode:SDCM 3, 5000 K (IF = 60 mA) Q65113A8845
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
Request product
GW JTLMS3.CM-G8GV-XX37-1 ΦV = 22.5 ... 27.0 lm, Mountingmethode:SDCM 3, 3000 K (IF = 60 mA) Q65113A8857
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
Request product
GW JTLMS3.CM-G8GV-XX35-1 ΦV = 22.5 ... 27.0 lm, Mountingmethode:SDCM 3, 4000 K (IF = 60 mA) Q65113A8846
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
Request product
GW JTLMS3.CM-G8GW-XX53-1 ΦV = 22.5 ... 28.5 lm, Mountingmethode:SDCM 5, 5000 K (IF = 60 mA) Q65113A6699
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
Buy now
By clicking this button you will be transferred to the dedicated site of our logistics partner, Mouser Electronics where your purchase can be completed. Your payment and order details provided for this purpose will be shared between Mouser Electronics and ams OSRAM. More details on the data processing in question can be found in the Privacy Policy of the Mouser shop.
Buy From Distributors:
Mouser
Buy now
GW JTLMS3.CM-G6G8-XX39-1 ΦV = 19.5 ... 24.0 lm, Mountingmethode:SDCM 3, 2400 K (IF = 60 mA) Q65113A8863
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
Request product
GW JTLMS3.CM-G8GW-XX56-1 ΦV = 22.5 ... 28.5 lm, Mountingmethode:SDCM 5, 3500 K (IF = 60 mA) Q65113A6701
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
Buy now
By clicking this button you will be transferred to the dedicated site of our logistics partner, Mouser Electronics where your purchase can be completed. Your payment and order details provided for this purpose will be shared between Mouser Electronics and ams OSRAM. More details on the data processing in question can be found in the Privacy Policy of the Mouser shop.
Buy From Distributors:
Mouser
Buy now
GW JTLMS3.CM-G6G8-XX310-1 ΦV = 19.5 ... 24.0 lm, Mountingmethode:SDCM 3, 2200 K (IF = 60 mA) Q65113A8862
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
Request product
GW JTLMS3.CM-G8GV-XX31-1 ΦV = 22.5 ... 27.0 lm, Mountingmethode:SDCM 3, 6500 K (IF = 60 mA) Q65113A8843
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
Request product
GW JTLMS3.CM-G8GW-XX57-1 ΦV = 22.5 ... 28.5 lm, Mountingmethode:SDCM 5, 3000 K (IF = 60 mA) Q65113A6710
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
Buy now
By clicking this button you will be transferred to the dedicated site of our logistics partner, Mouser Electronics where your purchase can be completed. Your payment and order details provided for this purpose will be shared between Mouser Electronics and ams OSRAM. More details on the data processing in question can be found in the Privacy Policy of the Mouser shop.
Buy From Distributors:
Mouser
Buy now
GW JTLMS3.CM-G6GV-XX59-1 ΦV = 19.5 ... 27.0 lm, Mountingmethode:SDCM 5, 2400 K (IF = 60 mA) Q65113A8674
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
Buy now
By clicking this button you will be transferred to the dedicated site of our logistics partner, Mouser Electronics where your purchase can be completed. Your payment and order details provided for this purpose will be shared between Mouser Electronics and ams OSRAM. More details on the data processing in question can be found in the Privacy Policy of the Mouser shop.
Buy From Distributors:
Digi-Key
Buy now
Mouser
Buy now
GW JTLMS3.CM-G6G9-XX510-1 ΦV = 19.5 ... 25.5 lm, Mountingmethode:SDCM 5, 2200 K (IF = 60 mA) Q65113A6706
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
Buy now
By clicking this button you will be transferred to the dedicated site of our logistics partner, Mouser Electronics where your purchase can be completed. Your payment and order details provided for this purpose will be shared between Mouser Electronics and ams OSRAM. More details on the data processing in question can be found in the Privacy Policy of the Mouser shop.
Buy From Distributors:
Mouser
Buy now
GW JTLMS3.CM-G8GW-XX51-1 ΦV = 22.5 ... 28.5 lm, Mountingmethode:SDCM 5, 6500 K (IF = 60 mA) Q65113A6697
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
Buy now
By clicking this button you will be transferred to the dedicated site of our logistics partner, Mouser Electronics where your purchase can be completed. Your payment and order details provided for this purpose will be shared between Mouser Electronics and ams OSRAM. More details on the data processing in question can be found in the Privacy Policy of the Mouser shop.
Buy From Distributors:
Mouser
Buy now
GW JTLMS3.CM-G8GV-XX32-1 ΦV = 22.5 ... 27.0 lm, Mountingmethode:SDCM 3, 5700 K (IF = 60 mA) Q65113A8844
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
Request product
